GDHL
GOLD

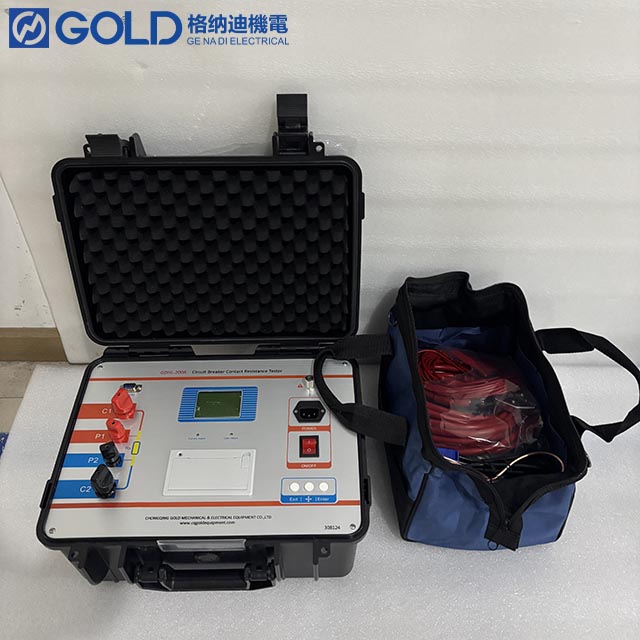

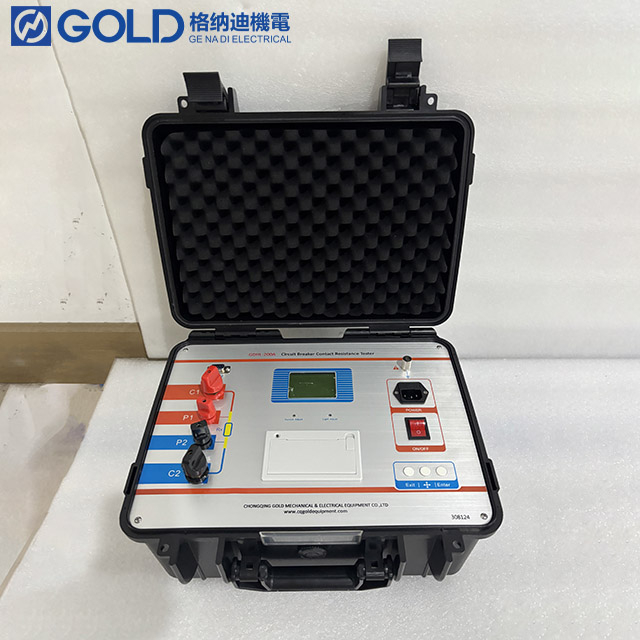

Circuit resistance tester adopts the national standard requirement of 200A DC constant current to continuously measure resistance with an accuracy of 0.5% RGD+0.05% FS. Not only can it be tested in harsh outdoor environments with temperatures ranging from -10 ℃ to 40 ℃, but it can also work in tropical rainforests with relative humidity<80%.
The equipment is commonly used to measure the contact resistance of conductive circuits such as high-voltage switches, circuit breakers, bus ducts, cable joints, etc., which can effectively prevent local overheating, burning or power accidents caused by poor contact.
| 01 | Measurement Range: | 0-1999.9μΩ |
| 02 | Resolution: | 0.1μΩ |
| 03 | Measurement Accuracy: | 0.5%RGD + 0.05%FS |
| 04 | Display Method: | LCD Chinese display |
| 05 | Storage Capacity | 100 sets of data |
| 06 | Operating Mode | Continuous |
| 07 | Supports RS232 data upload | |
| 08 | Power Supply: | AC220V±10% 50Hz |
| 09 | Ambient Temperature: | -10℃~+40℃ |

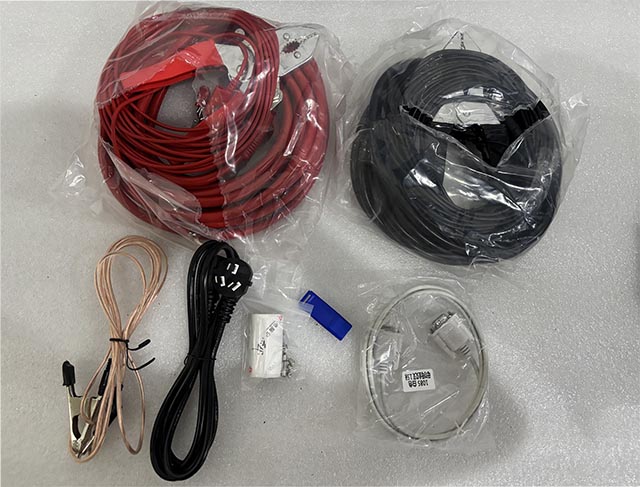

Packing accessories list:
1. Host
2. Accessory package
3. Power cord
4.100A clamp tester
5.100A clamp tester
6. Grounding wire
7. Online communication cable
8. Install CD
9.3A fuse
10. Printing paper
11. User Manual
12. Inspection report
13. Certificate of Conformity
