GDRG-H
GOLD

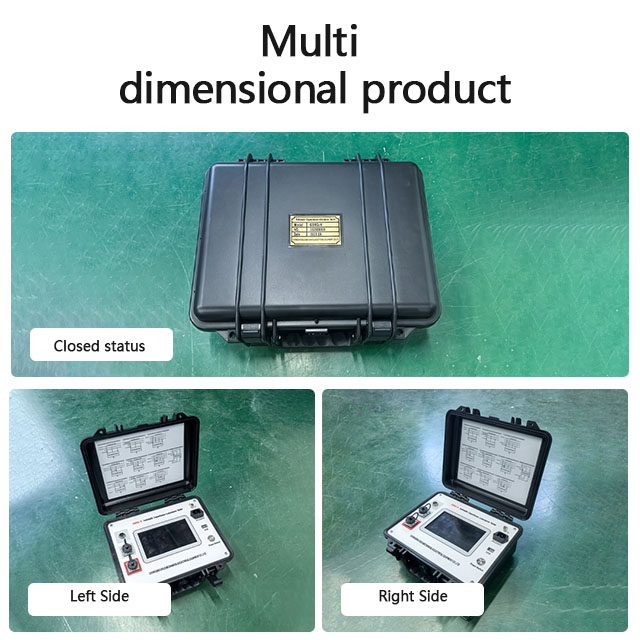

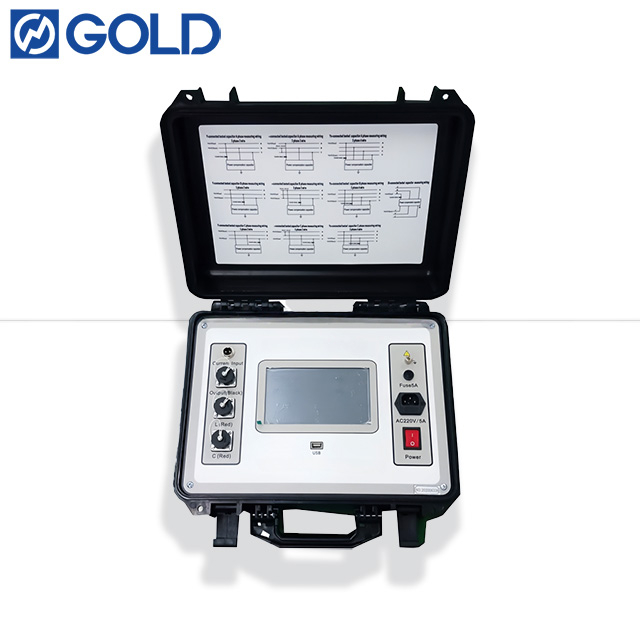

Fully Automatic Capacitance And Inductance Tester with USB Interface

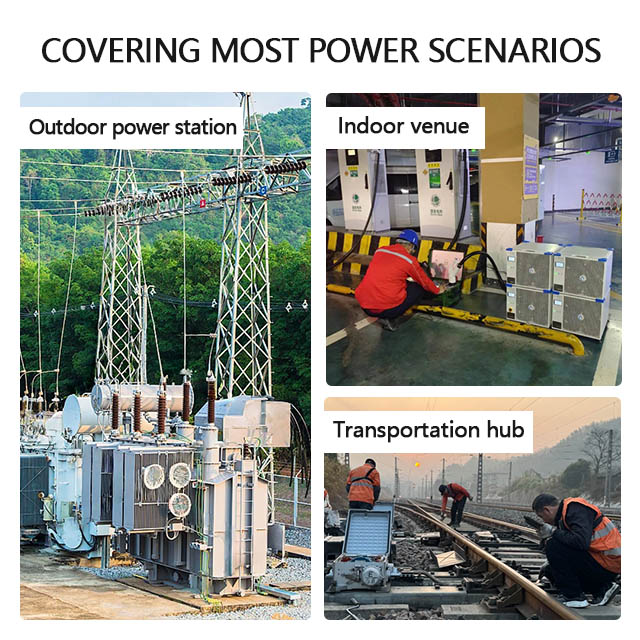

In the daily operation and maintenance of power systems, the regular testing of parallel capacitor banks is a crucial step in ensuring the reactive power compensation capability of the power grid. However, traditional testing methods have long faced a thorny problem: the connection lines of the capacitor bank must be disconnected before individual capacitor measurements can be performed. This operation not only involves a huge workload and reduces maintenance efficiency, but also creates hidden dangers such as bushing leakage and equipment damage due to repeated disassembly and reassembly.
GDRG-H fully automatic capacitance and inductance tester was developed precisely to solve this pain point in the field.

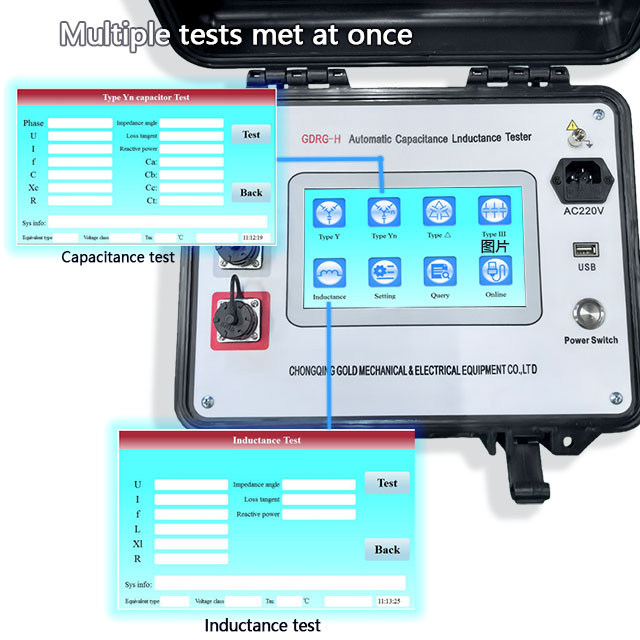

Test subject:
High-voltage parallel capacitor banks
Series reactors and damping reactors
Filter branch capacitors and reactors
| Parameter | Specification |
|---|---|
| Capacitance Range | 0.1 μF – 3300 μF |
| Capacitance Accuracy | ±(1% of reading + 0.005 μF) |
| Inductance Range | 100 μH – 50 H |
| Inductance Accuracy | ±2% of reading |
| Test Signal (Capacitance) | AC 23V ±10%, 50Hz (open-circuit voltage) |
| Test Signal (Inductance) | AC 3V ±20%, 50Hz |
| Max Output Current | 20A (short-circuit protected) |
| Display | 7-inch color touchscreen, 800×480 |
| Data Storage | 400 records (onboard, non-volatile) |

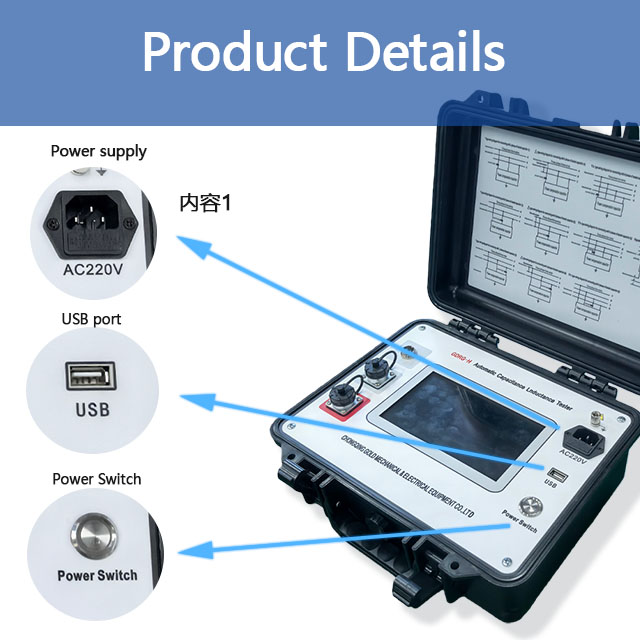

| Communication | USB 2.0 (PC data upload and report generation) |
| Operating Temperature | -10°C to +40°C |
| Relative Humidity | ≤90% (non-condensing) |
| Power Supply | AC 220V ±10%, 50Hz |
| Safety Compliance | Overvoltage category III; double-insulated test leads |
Advantages：
Onboard Storage – Saves up to 400 complete test data sets, including timestamps, voltage level settings, equivalent modes, and all measurement parameters.
USB Export – Data is directly transferred to the accompanying software via a standard USB cable connected to a PC, requiring no additional reading device.
Excel Format Reports – The accompanying software is a portable, installation-free version compatible with all Windows operating systems. Exported files are automatically named in "CDATA_YearMonthDay_HourMinuteSecond_SerialNumber.xlsx" (capacitor) or "IDATA_YearMonthDay_HourMinuteSecond_SerialNumber.xlsx" (inductor) format, allowing for direct archiving or embedding in test reports.
Local Data Sovereignty – All records are stored only on the instrument and the user's PC, with no forced cloud uploads, complying with power industry data security practices.
