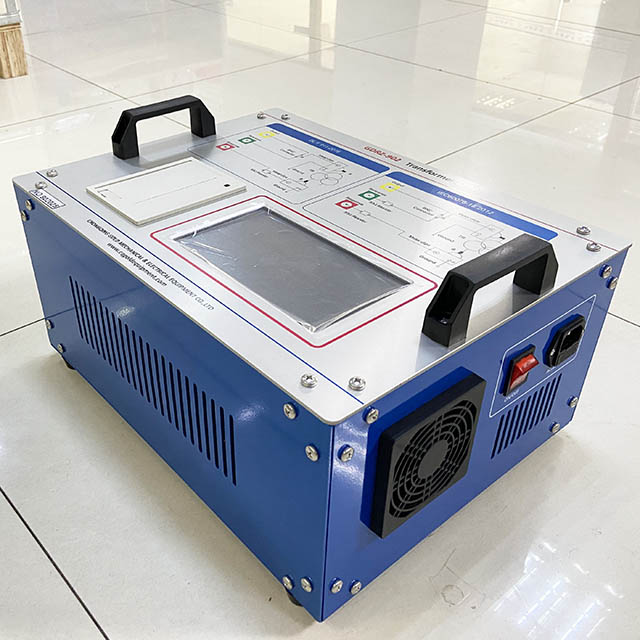

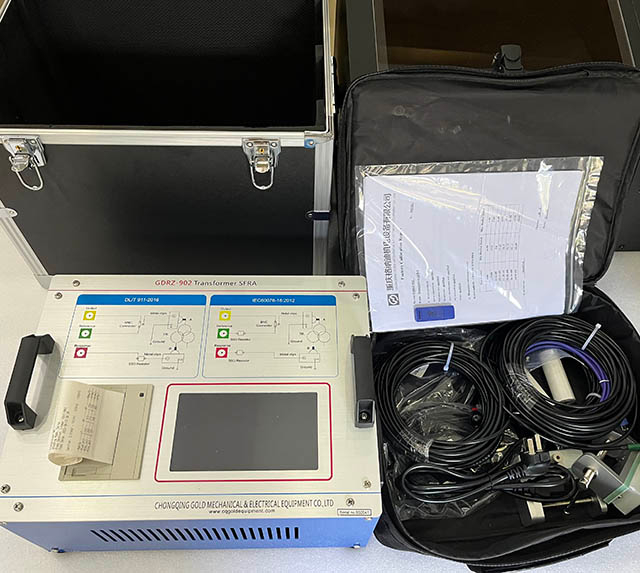

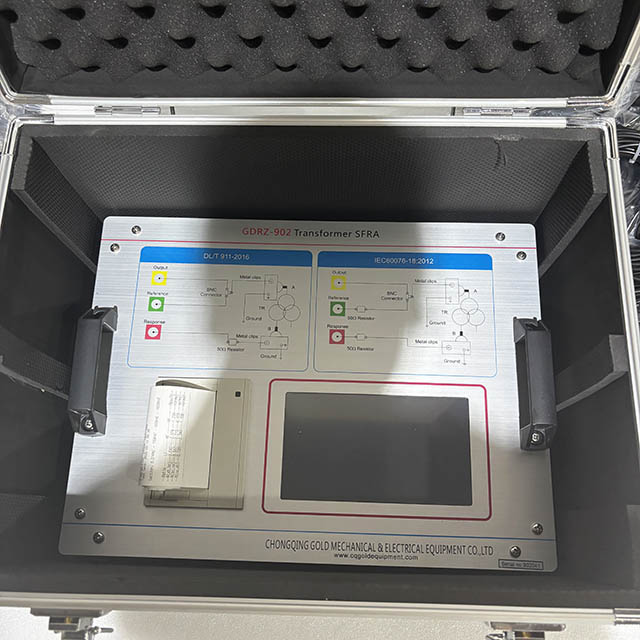

GDRZ-902 FRA Tester
CHONGQING GOLD
9031809090
GDRZ-902 Fast Scan FRA Tester Transformer Winding Deformation Analyzer IEC60076-18
Reference Standard
IEC60076-18: Power transformers - Part 18: Measurement of frequency response
Advantages of our GDRZ-902 Transformer FRA Tester:
1) High precision diagnosis: The GDRZ-902 FRA tester adopts advanced signal processing algorithms to sensitively capture subtle deformations of windings, locate fault points, and provide reliable basis for preventive maintenance.
2) Custom scanning: 10Hz~10MHz, with a maximum of 4000 scanning points.
3) GDRZ-902 FRA Tester can measure the phase frequency curve and amplitude frequency curve of each winding of the transformer;
4) Transformer FRA Tester can cyclically test of phase and amplitude of transformer windings at fixed frequency;
5) Efficient and portable: Integrated design, supports on-site testing, eliminates the need to disassemble transformers, significantly reduces testing time, and improves operation and maintenance efficiency.
6) Intelligent analysis: Built in professional software automatically generates visual reports to assist in determining the health status of windings and reduce human errors.
7) Widely applicable: Compatible with transformers of different voltage levels and capacities, meeting the needs of multiple scenarios such as power plants, substations, and industrial electricity.
8) Equipped with an automatic wide paper micro printer: After the experiment is completed by GDRZ-902 Transformer FRA Tester, the test results can be printed using the device's built-in micro printer to obtain curves and data.
Technical Index of GDRZ-902 FRA Tester:
| Test Method | Sweeping frequency method to measure winding deformation of transformer |
Scan frequency range | 10HZ-1MHZ (DLT911-2016 0.5KHZ interval linear scan) 20HZ-2MHZ (GB/T-1094.18 IEC60076-18:2012 segmented scanning) 10HZ-10MHZ (GB/T-1094.18 IEC60076-18:2012 segmented scanning) 1KHZ -1000KHZ_1.0(Linear scan 1KHZ interval PC side available) 1KHZ -1000KHZ_0.5(linear scan 0.5KHZ interval avaiable for Pc) 1KHZ -2000KHZ_1.0(linear scan 1KHZ interval available for PC) 1KHZ -2000KHZ_0.5(linear scan 0.5KHZ interval available for PC) 100HZ-1000K(Segmented scan PC available 1441 points): 100HZ-1KHZ 5HZ interval 180 points 1KHZ-10KHZ 50HZ interval 180 points 10KHZ-100KHZ 500HZ interval 180 points 100KHZ-1000KHZ 1KHZ interval 901 points 100HZ-2000K(Segmented scan PC available 2441 points) 100HZ-1KHZ 5HZ interval 180 points 1KHZ-10KHZ 50HZ interval 180 points 10KHZ-100KHZ 500HZ interval 180 points 100KHZ-1000KHZ 1KHZ interval 900 points 1000KHZ-2000KHZ 1KHZ interval 1001 points |
Amplitude measurement range | (-100dB) - (+20dB) |
Amplitude measurement accuracy | (-40dB) - (+20dB) 0.2dB (-60dB) - (-40dB) 0.5dB (-80dB) - (-60dB) 1.0dB |
Angle measurement range | (-180°) - (+180°) (10HZ-2MHZ) |
Scan frequency accuracy | less than 0.01% |
Signal input impedance | greater than 1M Ω(DLT911-2016). 50 Ω(GB/T-1094.18 IEC60076-18:2012) |
Signal output impedance | 50 Ω |
Same-phase test repetition rate | 99.5%. |
| Power Supply | AC220V±10%,50/60Hz(Support customization of AC127V, AC120V) |

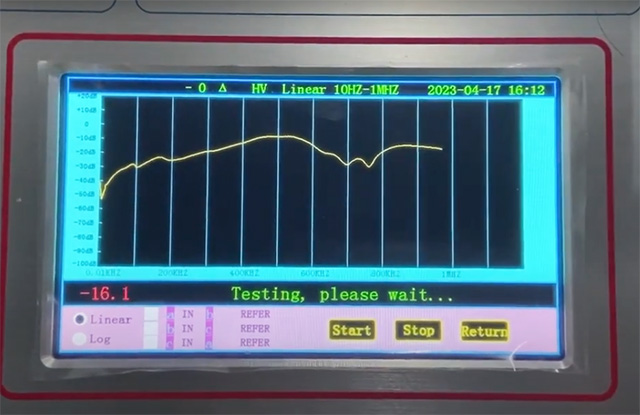

Under Testing:
