GDJB- III
CHONGQING GOLD

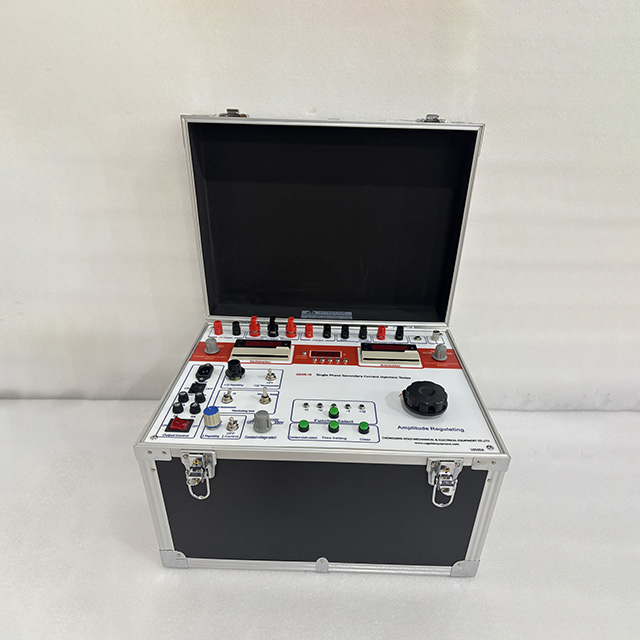

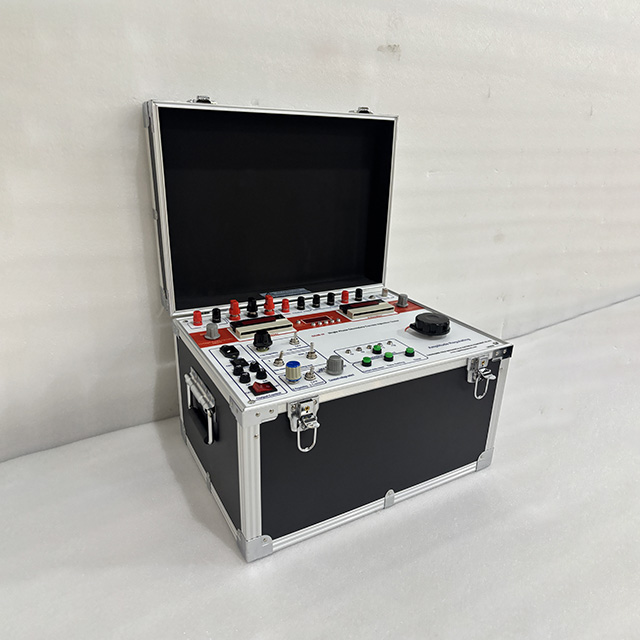

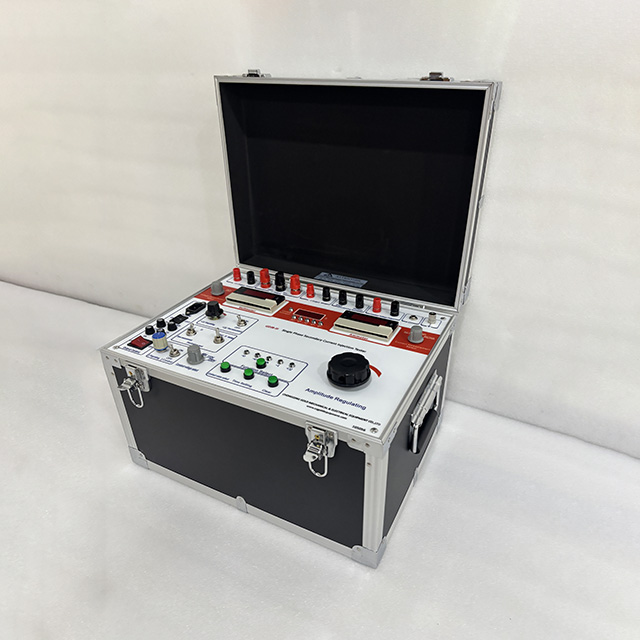

High precision 10A Single Phase Relay Test Kit for Voltage relay tester
▎Introductio：
GDJB-III single-phase relay protection tester integrates multiple independent AC/DC voltage and AC/DC current output circuits. It features a built-in 4-1/2 digit high-precision digital display and a millisecond-level digital timer, allowing for independent completion of the entire relay calibration process without the need for an external computer.
Unlike complex multiphase microcomputer testing platforms, this equipment focuses on the practical calibration of basic electromagnetic relays, eliminating redundant and complex software modules. All operations are completed using the panel's hardware knobs and function settings, making it easy for engineers to learn. It enables efficient testing even in the field or at emergency repair sites where laptops are unavailable, making it a fundamental portable testing unit for relay protection pre-testing.
▎Product Features
Multi-type AC/DC integrated output architecture, simultaneously providing AC/DC voltage and AC/DC current multi-channel output, covering voltage relay and current relay coil excitation testing, supporting manual plotting of relay volt-ampere characteristics. One device can complete multiple basic tests, reducing the need to carry multiple signal sources on-site.

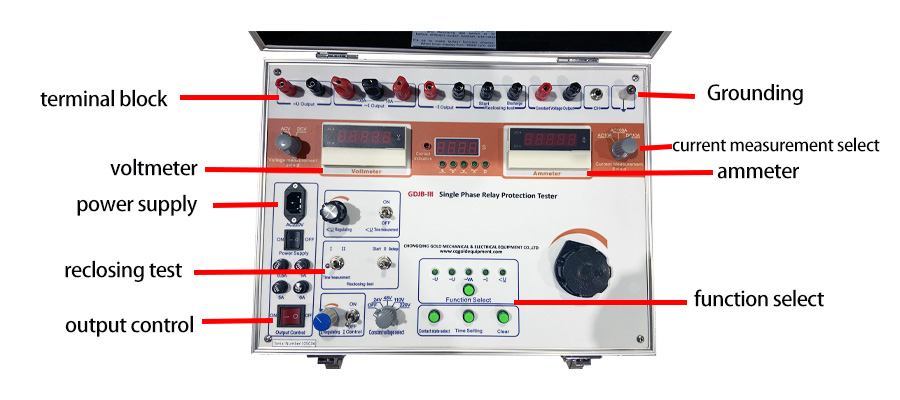

Fully hardware panel control, independent of host computer. All tests are completed through panel settings and adjustment knobs. It features a built-in 4.5-digit high-precision digital voltage and current meter, paired with a high-precision digital timer. Power failure restart requires no system loading, ensuring high stability for emergency repairs and outdoor field operations.
Tiered built-in overload fuse protection. Independent fuses are configured for the voltage circuit, constant voltage auxiliary circuit, and overall power supply circuit. In the event of a short circuit or overload, the circuit is quickly cut off, protecting the instrument itself and preventing damage to the tested relay due to abnormal output.
Independent fixed-range DC constant voltage auxiliary power source, providing four DC output levels: 24V/48V/110V/220V, which can directly provide operating power for static relays without the need for an external power supply module.
Circuit breaker opening and closing sequence measurement capability, supporting the capture of the action sequence of dry contacts and active contacts, completing the acquisition of circuit breaker opening and closing times, suitable for secondary circuit fault diagnosis.
Wide temperature range adaptability, operating temperature -20℃ to +40℃, meeting the needs of use in extremely cold and high-temperature construction sites; the overall operation logic is simple, and on-site personnel can become proficient in operation after a short training period.
▍Product Functions
Relay Verification

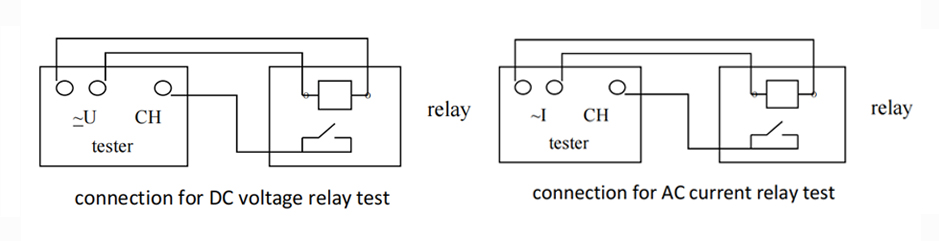

AC Voltage Relay: Operating voltage and return voltage verification
DC Voltage Relay: Operating voltage and return voltage verification
AC Current Relay: Operating current and return current verification
DC Current Relay: Operating current and return current verification
Relay coil volt-ampere characteristic test, manually record voltage-current data, and plot characteristic curves
Low voltage relay operating and return timing test
Timing and Circuit Testing
Measurement of operating time and return time of various relays; measurement of circuit breaker opening and closing time, capturing contact opening and closing sequence; simulated AC voltage circuit short-circuit condition output for secondary circuit condition simulation verification.
Auxiliary Power Supply Output
Four-level fixed DC constant voltage output: DC24V / 48V / 110V / 220V, providing operating power for static relays.

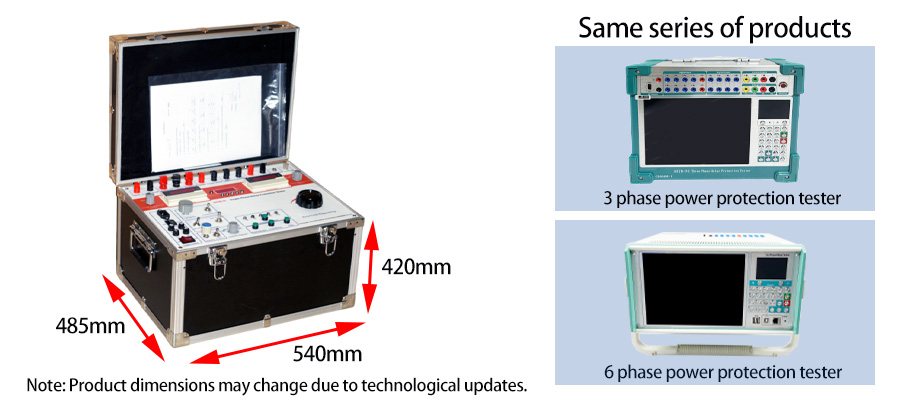

▍Product Parameters
| Item | Specifications |
|---|---|
| DC Voltage Output | 0‑350V continuously adjustable, Max output capacity:960VA |
| AC Voltage Output | 0‑350V continuously adjustable, Max output capacity:400VA |
| Relay Coil Volt‑Ampere Test | Max output voltage 240V, Max output current 5A;Max‑current continuous working time ≤3min |
| DC Current Output | 0‑10A continuously adjustable, Max output capacity:80VA |
| AC Current Output | 0‑10A ; 0‑100A ;Max capacity:1000VA; Continuous output duration ≤35s |
| AC Voltage Short‑circuit Simulation | Output setting ≤120V, adjustable range 15%‑80% |
| Fixed DC Auxiliary Constant‑voltage Output | 24V,48V,110V,220V; Output current:0.4A |
| Over‑load Protection Fuse | DC/AC voltage output:5A fuse;DC constant‑voltage output:0.5A fuse;Main power supply:6A fuse |
| Meter Display | 4‑1/2 digit digital voltmeter & ammeter, Accuracy class:0.5 |
| Digital Timer | 0.000‑9999s, reading error: ±2 digits at least significant digit |
| Power Supply | AC220V±10%, 50Hz |
| Operating Temperature | ‑20℃ ~ +40℃ |
| Operating Humidity | ≤85% |
▍Product Applications
Substation On-site Maintenance: Maintenance teams conduct regular preventative calibration of electromagnetic current and voltage relays; troubleshoot secondary control circuits and review defects; and quickly verify relay performance during emergency repairs.
Circuit Breaker Maintenance: Circuit breaker opening and closing time testing to assist in judging the working status of the circuit breaker mechanism and auxiliary contacts.
Self-provided Power Stations in Industrial and Mining Enterprises: Daily maintenance of plant power relay protection devices and regular relay inspections.
Equipment Repair Workshops: Relay inspection after repair and re-inspection; verification of coil excitation characteristics.
Teaching and Training Institutions: Power training for hands-on teaching of the operating principles of electromagnetic relays.
