Is There A Total False Alarm in Circuit Breaker Testing? How To Block Data Bias From The Source with GDGK-307

When testing circuit breakers on site, the biggest fear is not discovering faults, but rather the instrument itself falsely reporting military information. Although the switch action is normal, the instrument reports exceeding the travel limit and non compliant synchronicity; Or the detected object may show signs of loosening, but the test report is green all the way. As soon as a false alarm occurs, everyone has to repeatedly disconnect, retest, and verify, spending most of their time on "verifying whether the instrument is reliable", and the time to truly deal with equipment problems is actually squeezed. Upon investigation, false alarms are usually concentrated in three aspects: improper matching of sensors, distortion of electrical signals caused by special circuit breaker structures, and on-site interference mixed into the data channel.

Firstly, the sensor stroke ratio is set incorrectly, resulting in direct deviation of all stroke related parameters.

When using angular displacement or acceleration sensors, if the K value between the angle of rotation of the sensor and the actual linear travel of the contact is not calibrated according to the actual site, then the overtravel, opening distance, and just in/out speed calculated by the instrument are all the results of "scaling in the wrong proportion". Many circuit breakers have operating mechanisms with connecting rods that are not driven in a straight line, but are converted through crank arms and gears. The K value must be set based on actual measurements or nameplate data. Once neglected, parameter deviations may be misjudged as spring fatigue or contact wear, leading to unnecessary disassembly and maintenance.

Secondly, the insulation protection layer "eats up" the electrical signal, and the overtravel is systematically shortened.

Some low oil circuit breakers and SF6 circuit breakers are equipped with insulation sheaths or arc extinguishing material covering layers several millimeters thick on the fixed contacts. When the moving contacts first contact the insulation layer during the closing process, the circuit does not conduct and the instrument has no signal. Electrical contact is only established after the contacts penetrate through this layer. The ordinary tester only recognizes the continuity of electrical signals, so the end point of the closing timing is delayed, and the measured value of overtravel is artificially reduced by a certain section of the insulation layer thickness. This is not mechanical wear, but a "systematic shortage" caused by the mismatch between the instrument criteria and the circuit breaker structure. If not identified, it is easy to mistake it for excessive contact erosion.

Thirdly, ground loops and signal crosstalk treat noise as bouncing.

The on-site electromagnetic environment is complex, especially in GIS substations and high-voltage switch fields, where operational shocks and high-frequency surges are coupled into the measurement circuit through grounding wires. If the ground potential between channels is not consistent, mixing the grounding methods of A1/B1/C1 and A3/B3/C3 will generate common mode interference, causing burrs in the travel curve. When the software automatically calculates these peaks, it is easy to mistake them for closing bounce or opening bounce, resulting in false bounce time exceeding the standard.

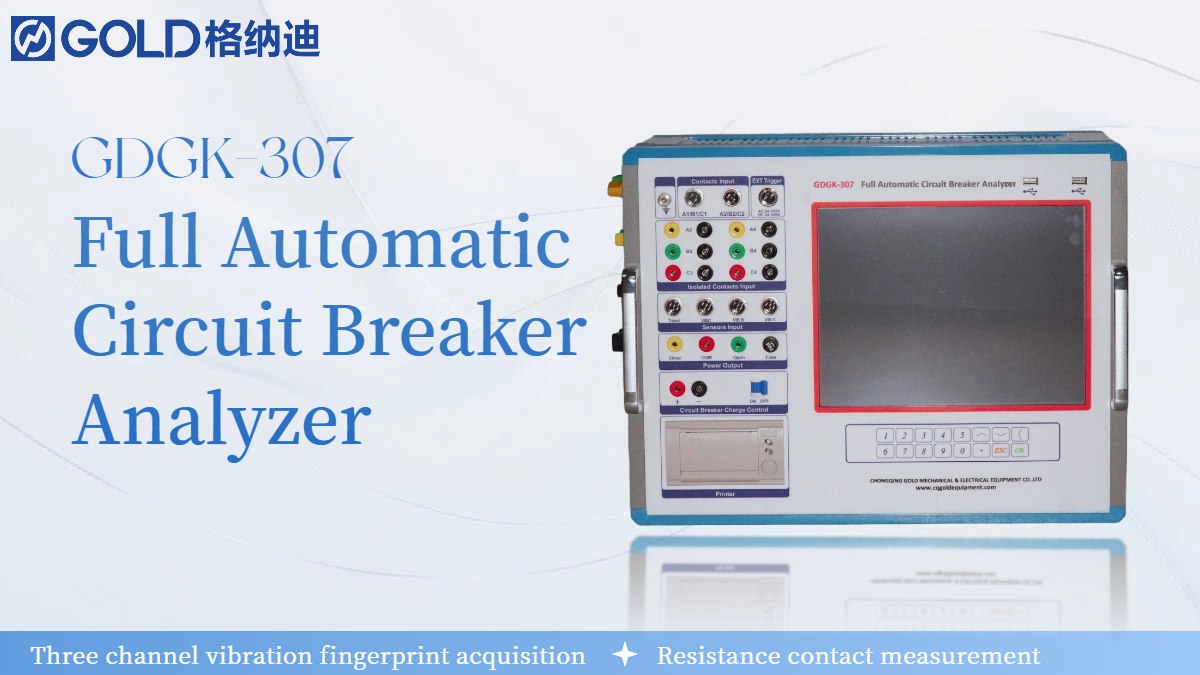

Our GDGK-307 was designed with the above three false alarm sources as key targets to overcome.

• At the level of sensor adaptation, the instrument supports preset total travel, and the operator only needs to input the actual total travel of the contact.

  GDGK-307 will automatically calculate the K value without the need for manual repeated conversion, eliminating false alarms caused by proportional distortion in the algorithm. For circuit breakers with insulation sheaths, GDGK-307 provides a "resistance contact" measurement mode - using the drop of resistance between contacts to below 50 Ω as the criterion for closing in place, rather than simply relying on electrical signals for on/off. The thickness of the insulation layer no longer affects the calculation of overtravel, and the measured value is the actual mechanical overtravel, which strictly corresponds to the true state of the equipment.

• In terms of anti-interference, GDGK-307 has made the reference ground of A3/B3/C3 and A4/B4/C4 channels independent and separated them physically from the common ground of A1/B1/C1, without sharing the return path, completely cutting off the transmission channel of ground loop interference. Combined with optional digital filtering function, the instrument can effectively suppress high-frequency noise without damaging the time resolution of the effective signal, ensuring that bounce statistics only reflect the real mechanical behavior of the contact and do not count environmental clutter as a fault.

• For long-term tracking devices, the GDGK-307A advanced model also integrates a three channel vibration fingerprint acquisition function.

  During testing, synchronously record the vibration waveforms of the base and three-phase body to form the unique "mechanical fingerprint" of the circuit breaker. If there are suspicious changes in the travel data in the future, the current vibration fingerprint can be automatically matched with the historical template - if the fingerprint height matches, it indicates that the mechanism status has not changed, and the deviation is mostly due to sensor installation or parameter problems; If the fingerprint also deviates, it indicates that the corresponding component is indeed loose or worn, and the direction of maintenance is clear at a glance. This "travel+vibration" mutual verification mechanism eliminates the hiding space for false alarms and helps on-site personnel focus on real equipment defects instead of repeatedly checking the instrument itself.
