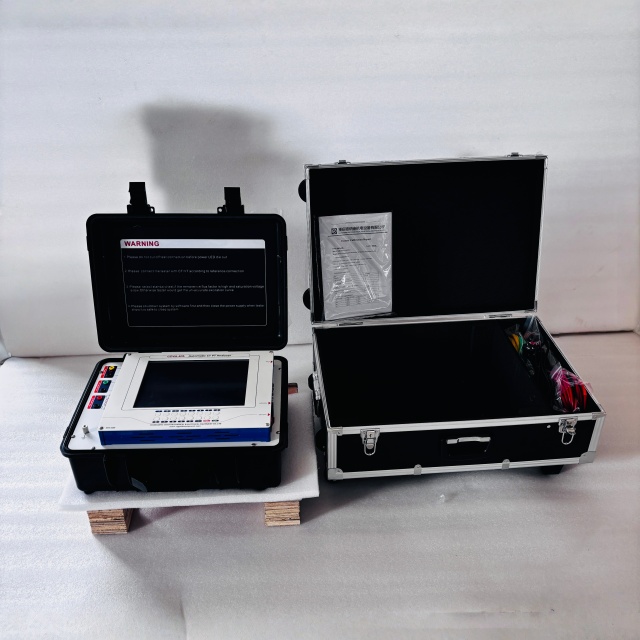

0.02% Accuracy Current Transformer CT Analyzer CT PT Testing Equipment

This product is specifically designed for on-site testing of current transformers and voltage transformers, supporting various testing items such as excitation curve, turn ratio, polarity, winding resistance, etc.

The device is equipped with a low-frequency excitation testing principle, which can complete high saturation voltage CT testing at low voltage and is suitable for use in on-site environments such as substations.

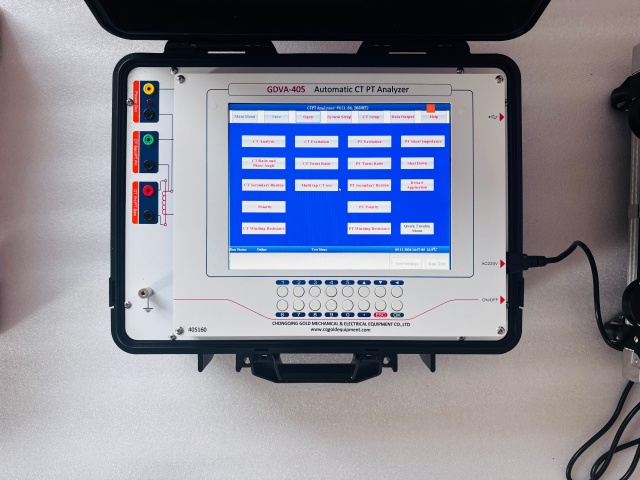

Main menu interface

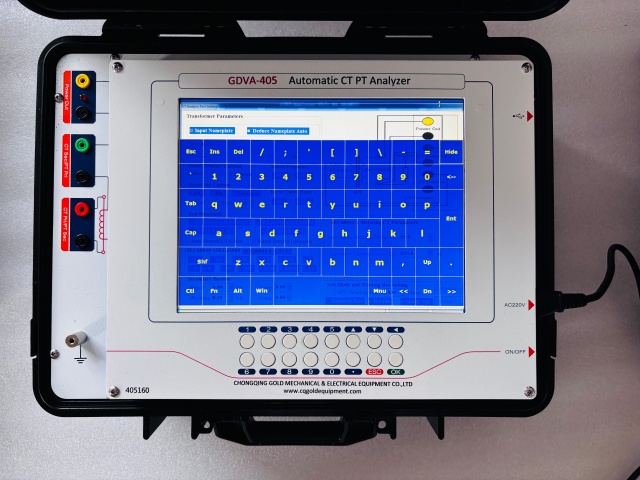

virtual keyboard

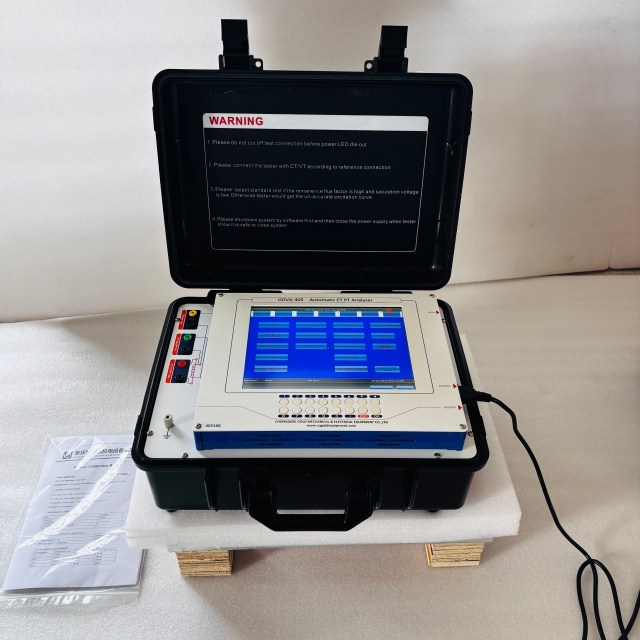

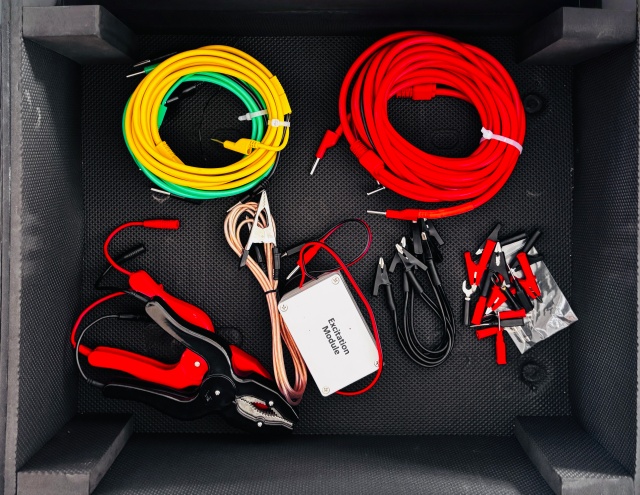

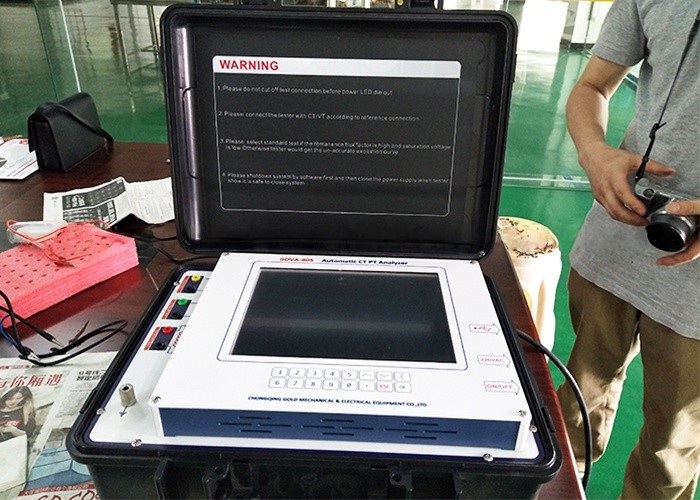

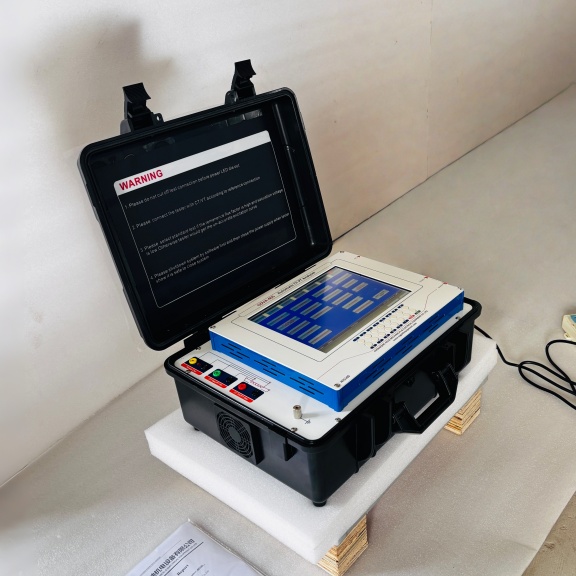

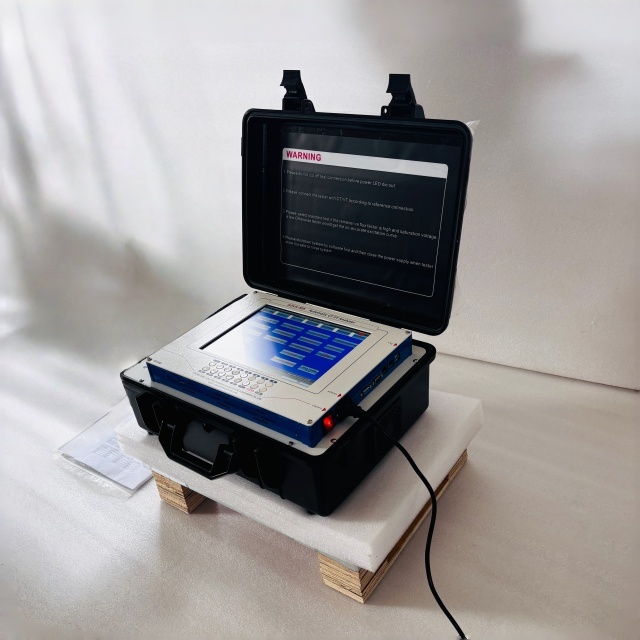

GDVA-405 CT PT Tester

Function

CT, PT

Test standard

IEC60044-1/2/5/6,IEC61869, C57.13

Voltage output

0.1~180V(AC)

Current output

0.001~5A(RMS)

Power output

300VA

Current measurement

0~10A

Voltage measurement

0~200V

Turn ratio measurement

1~30000

Dimension

485*356*183mm

Weight

15KG

 Tests for current transformer

Excitation curve and parameters test; Turns ratio test; Ratio and phase error test; Polarity mark check; Coil resistance measurement; Secondary loop burden measurement; Error line curve test for protection CT; Transient CT parameters test; CT nameplate guess; Saturation hysteresis loop curve measurement

 Tests for voltage transformer

Turns ratio test; Polarity test; Secondary burden test; Coil resistance test; Phase angle error test

 Applications for CTPT analyzer

CT nameplate check; CT parameters check in work burden; CT transient parameters analysis; CT ratio and phase error calibration; PT routine test
