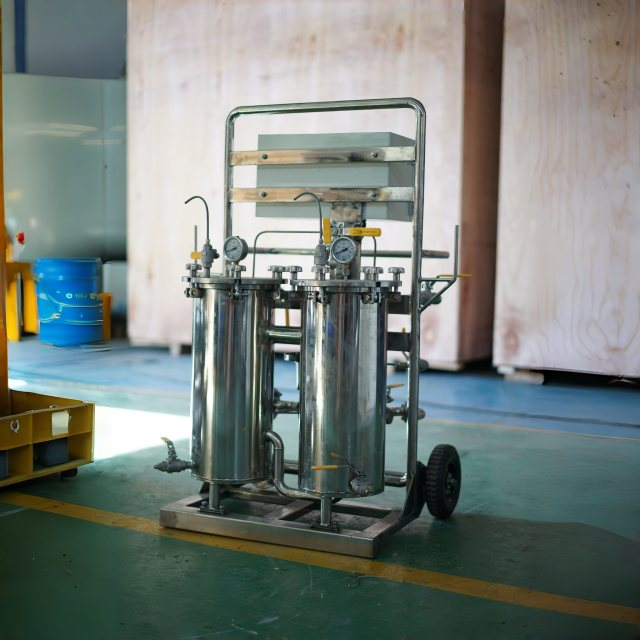

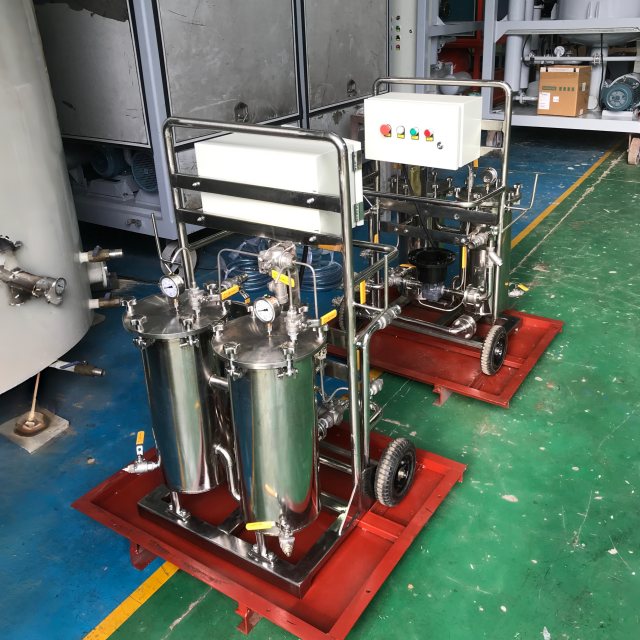

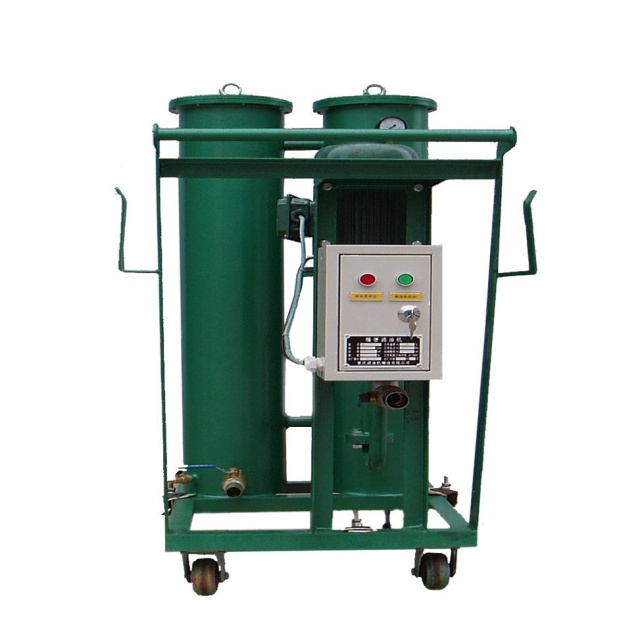

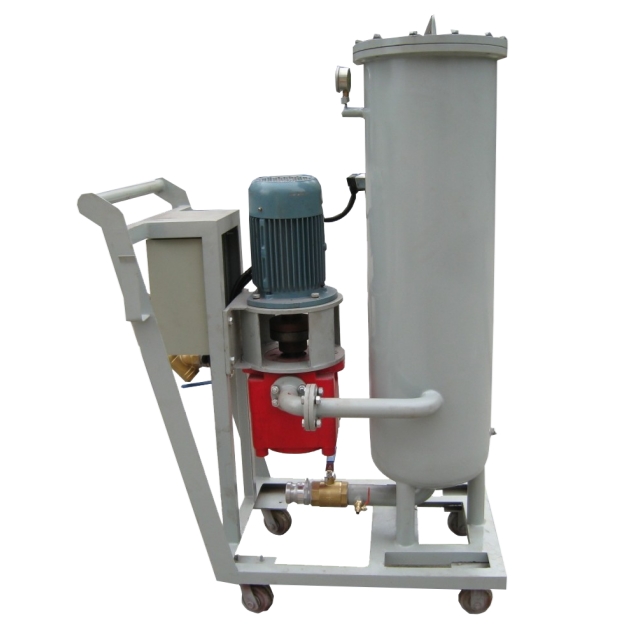

3000L/h Portable Dielectric Oil Filtration Equipment Transformer Oil Purifier for Mechanical Impurity Filtration of Oil
| Parameter | Value |
|---|---|
| Model | YL-50 |
| Flow Rate | 3000 L/h (50 L/min) |
| Working Pressure | ≤0.5 MPa |
| Working Oil Temperature | 30–65℃ |
| Power Supply | 380V / 60Hz / 3-phase 4-wire(or as request) |
| Total Power | 2 kW |
| Inlet/Outlet Hose Dia. | 32mm / 25mm |
| Weight | 135 kg(for reference only) |
| Dimensions (L×W×H) | 77×72×116 cm |
| Filtration Precision | ≤5 μm |
| Mechanical Impurity | ≤0.03% |
| Noise Level | ≤80 dB(A) |
| Pump Lift | ≤30 m |
Dual filtration system
Coarse filter: intercepts large particle impurities and protects the oil pump
Precision filter: filtration accuracy ≤ 5 μ m, improving oil cleanliness
Multiple security protections
Overload protection
Automatic monitoring of pressure switch
Phase sequence error prompt to prevent motor damage caused by reverse rotation
Easy to operate
One click start/stop
Emergency stop button
The control panel indicator lights are clear and the status is clear at a glance
Flexible mobility
Four corner lifting ear design, supporting lifting
Bottom forklift hole for easy handling
Product Composition

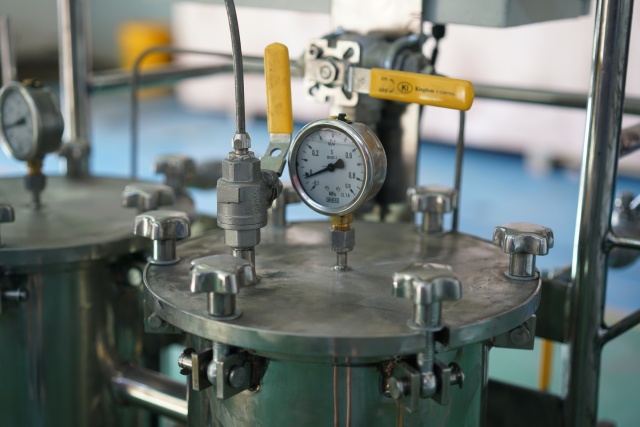

Primary filter
Fuel feed pump
Fine filter
Pipeline valve system
Electric control system
