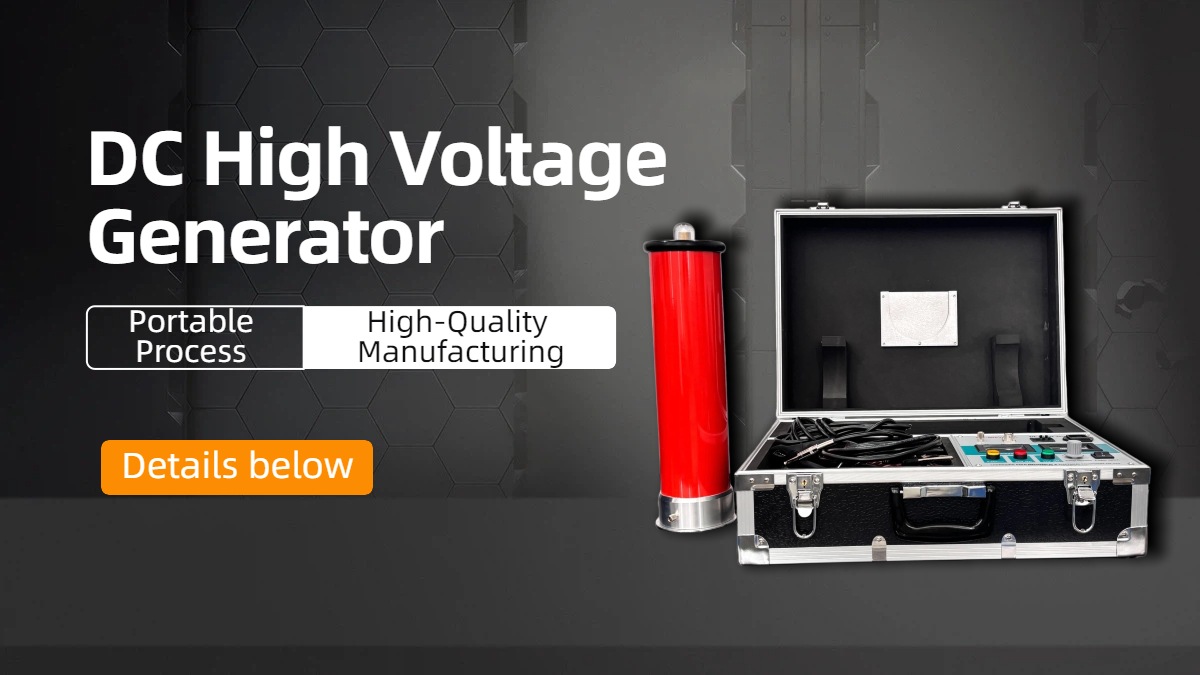

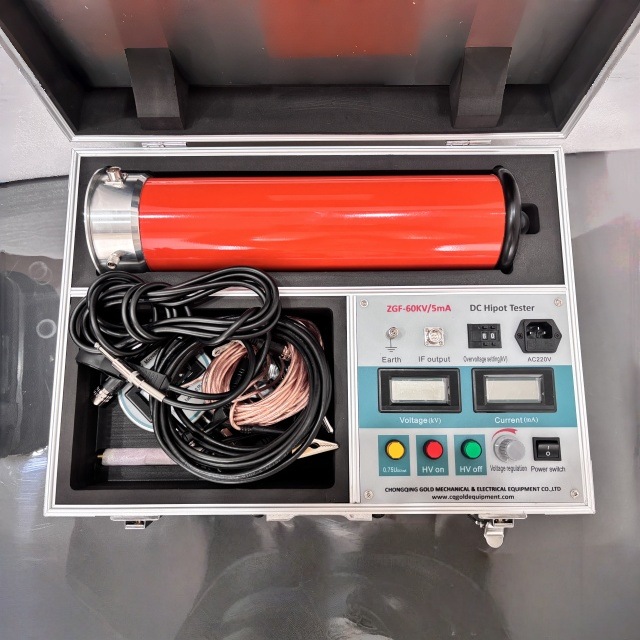

This product features high-power IGBT devices as its core component, combined with electromagnetic compatibility (EMC) process design, offering multiple output specifications ranging from 60kV to 400kV to meet diverse voltage level testing requirements.

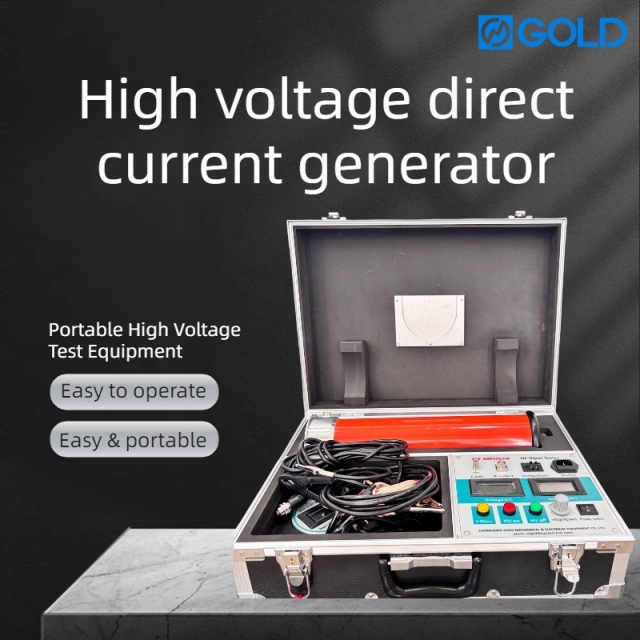

With lightweight construction and digital operation, it serves as a dedicated high-voltage generator for power maintenance and equipment factory testing.

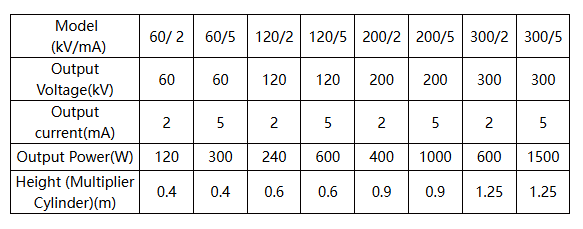

1. Stable DC high voltage output, covering multiple levels of 60/120/200/300/400kV
2. Real time measurement of digital voltage and current with an accuracy of ± 1%+1 word
3. Triple protection for overvoltage, overcurrent, and zero position, automatic alarm for abnormalities
4. Voltage preset setting, precise setting of protection threshold
5. One click start stop of high-voltage circuit, safe and controllable
High frequency conversion technology with small output ripple and high stability

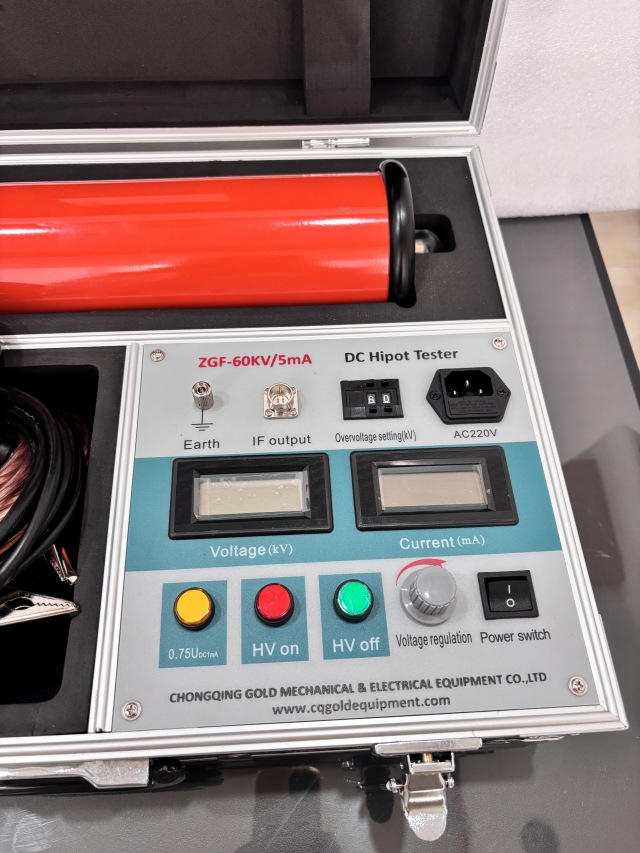

Digital display direct reading, precise measurement, no need for manual conversion
Zero start protection to prevent misoperation of voltage boosting

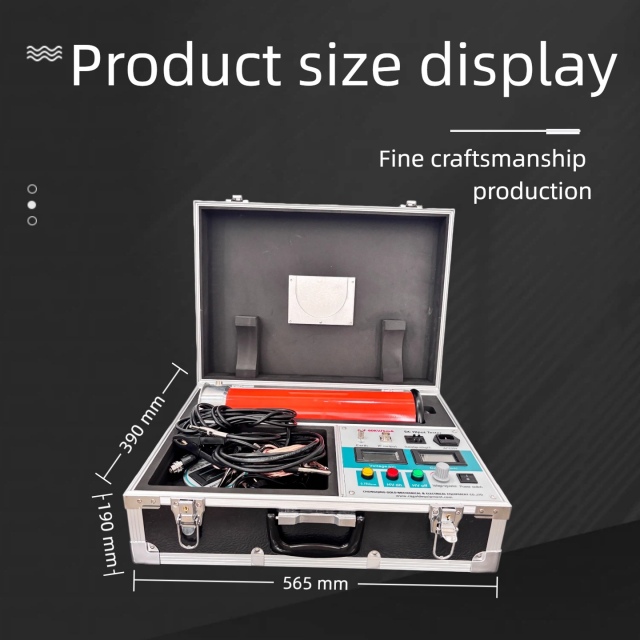

Portable structure, with a minimum height of 0.5m for the double pressure box, convenient for on-site handling
Full protection mechanism, automatic triggering protection for overcurrent/overvoltage/short circuit
1. Technical compliance: Complies with the national standard for portable DC high voltage generators
2. Reliable accuracy: Voltage stability ≤ 1%, stable output even with power supply fluctuations of ± 10%
3. Safe and durable: Multiple protection design reduces equipment and personnel risks
4. Environmental adaptation: -10 ℃~50 ℃, stable operation at altitudes below 1500m
5. Convenient to use: intermittent work for 30 minutes, meeting the regular test duration

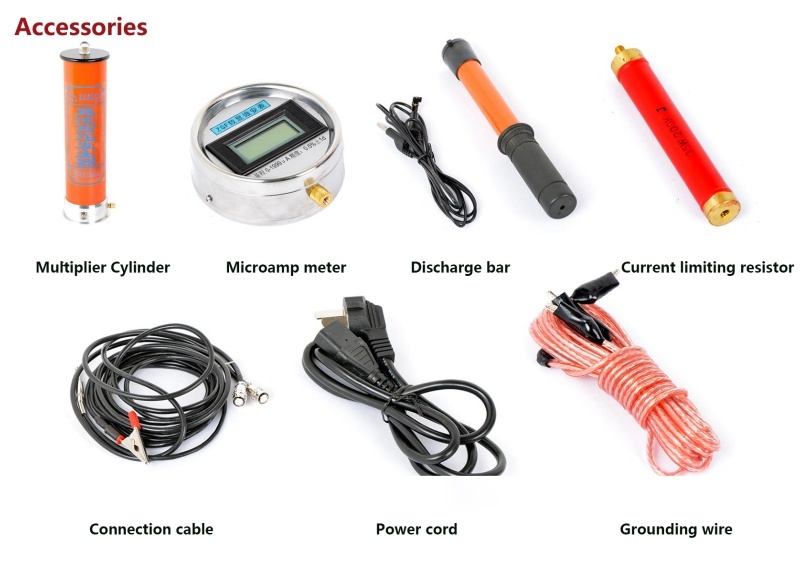

Certificate of Conformity
Instruction Manual

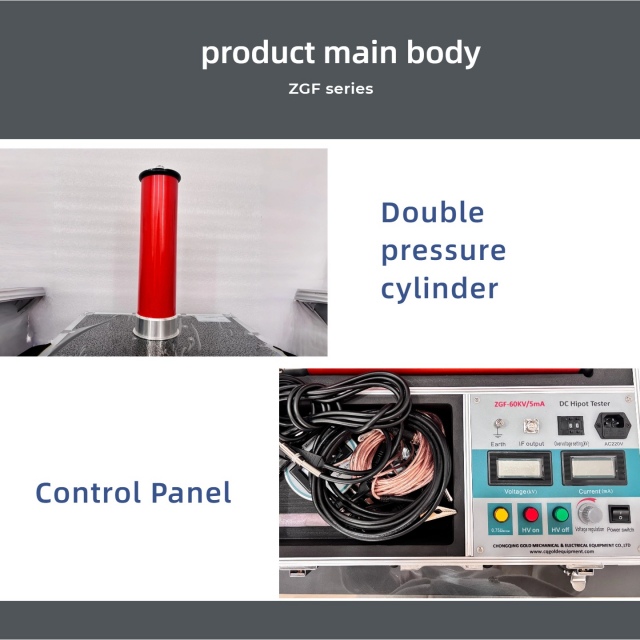

Control Box
High Voltage Multiplier Box

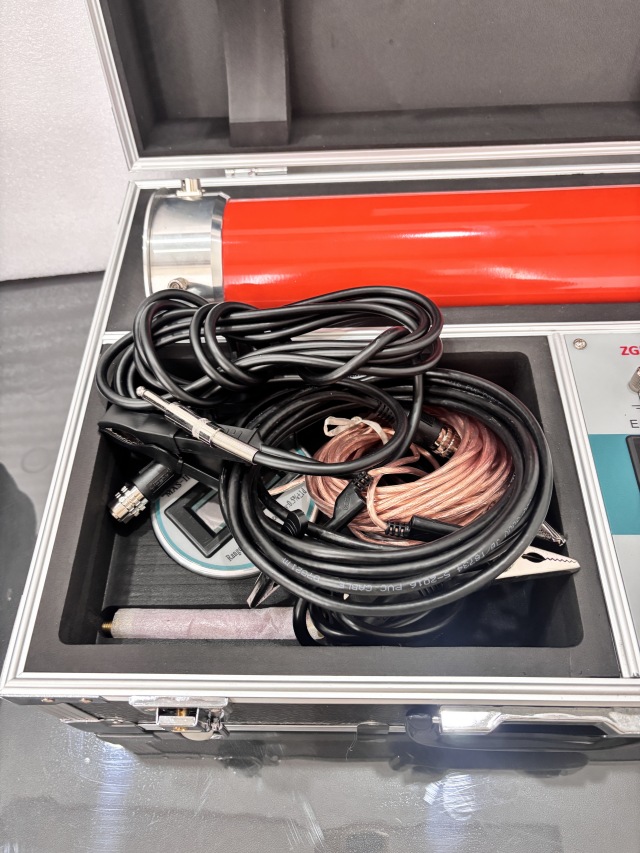

Power Cord, Connection Cable
Discharge Rod, Spare Fuse
