Transformer Fingerprint Testing: The Four-Stage SFRA Protocol for Asset Lifecycle Management

Transformers are the most valuable and critical equipment assets within a power grid. An unplanned outage of a large power transformer can trigger a cascading power grid disruption, resulting in millions of dollars in direct and indirect economic losses.

Traditional diagnostic systems relying on insulation resistance, turns ratio, winding DC resistance, DGA oil chromatography, and dielectric loss (tan-delta) have significant blind spots: these mature testing methods cannot reliably detect minute mechanical displacements, winding tilts, and minor deformation defects in transformer windings.

Therefore, swept frequency response analysis (SFRA), also known as transformer "fingerprint" testing, has become an indispensable predictive diagnostic tool for modern power grid operations in the complete lifecycle management of transformers. It can detect mechanical structural changes that traditional electrical tests cannot capture, enabling risk-based maintenance rather than reactive repairs after a fault occurs.

1. What is Transformer "Fingerprint" Testing? The Principle Behind SFRA

A transformer winding is a complex distributed network composed of resistance (R), inductance (L), and distributed capacitance (C). Each turn of the winding, insulating pad, and bushing contributes unique inductance and capacitance parameters to this network.

The mechanical-electrical mapping relationship is the core physical principle of SFRA. When a transformer is subjected to transportation vibration, system short-circuit impact, or long-term aging, the physical geometry of the windings, pads, and clamping structures changes. Changes in mechanical structure directly alter the internal distributed inductance and capacitance parameters, causing shifts in the measured amplitude-frequency and phase-frequency response curves of the winding, resulting in new resonance peaks or changes in attenuation characteristics.

This leads to the fingerprint concept: every healthy transformer produces a unique and reproducible frequency response characteristic curve, namely the SFRA Baseline Curve. Like human fingerprints, each device possesses its own unique curve profile, collected under conditions confirming mechanical integrity. All subsequent field tests need to be compared with this original baseline fingerprint to determine whether the structure has shifted.

2. The Multi-Stage Value of SFRA in Asset Lifecycle Management

SFRA fingerprint comparison has clear risk control value at four key nodes throughout the transformer's operational life, all relying on the baseline fingerprint file.

Stage 1: Establishing a Baseline for Factory Acceptance Testing (Birth Record)

SFRA baseline testing should be completed during factory acceptance testing and retested during on-site handover. This data is the "golden birth record" for maintenance work for decades to come.

Without a valid factory baseline fingerprint, subsequent on-site SFRA measurements lack reliable references, and deformation judgment will rely solely on subjective experience. A complete file should cover all tap positions, high-voltage, medium-voltage, and low-voltage windings to ensure traceability.

Stage 2: Post-Transport Inspection (Transport Audit)

Long-distance transportation by road, rail, or sea carries the highest risk of mechanical damage to the windings. Strong vibrations and impacts can cause geometric displacement of the windings, without any visible damage on the outside of the equipment.

Performing SFRA fingerprint comparison before power-on clearly delineates the responsibilities between the transportation contractor and the asset owner. If a significant deviation occurs between the post-transportation curve and the factory baseline fingerprint, mechanical damage during transportation can be confirmed, preventing direct operation of the equipment.

Phase 3: Diagnosis after a Near-Circuit Short Circuit Fault (Damage Retrospective Inspection)

After a system near-circuit short circuit fault, the transformer often shows no external abnormalities, but the enormous electrodynamic force generated by the short circuit may have already caused winding bending, displacement, and deformation.

SFRA fingerprint comparison is an important damage inspection method. It can detect early mechanical damage to the windings before catastrophic faults such as insulation breakdown occur, avoiding sudden accidents during equipment operation.

Phase 4: Regular Health Inspection (Aging Condition Monitoring)

Regular SFRA fingerprint inspections are a core method of predictive maintenance, employing two comparison methods:

1. Longitudinal comparison: Comparing the latest measurement curve with the equipment's own historical baseline fingerprint;

2. Lateral phase-to-phase comparison: Cross-referencing the amplitude-frequency response curves of the three phases of the same transformer.

By comparing, hidden defects such as loose insulation pads, loose clamping structures, and slow winding displacement can be detected in advance.

3. Avoiding Catastrophic Failures: ROI Analysis of SFRA Testing

From an asset management perspective, SFRA fingerprint testing demonstrates a clear ROI in terms of both maintenance cost optimization and capital expenditure optimization.

From Preventative to Predictive Maintenance

Traditional preventative maintenance often involves haphazardly scheduling core and enclosure inspections. This results in lengthy power outages, high labor costs, and additional risks introduced during disassembly and assembly. SFRA fingerprint-based diagnostics enables true predictive maintenance: enclosure inspections are only conducted when SFRA data confirms a mechanical anomaly, significantly reducing outage duration and maintenance costs.

Extending Asset Life and Optimizing CAPEX

When SFRA fingerprint analysis identifies minor winding displacements early, targeted corrective actions can be implemented during planned outage windows, preventing defects from worsening and avoiding premature transformer failure. For transformers in good condition, power grid companies can safely extend their service life, reduce unnecessary equipment upgrades, and optimize capital investment.

4. How to Build a Reliable SFRA Testing System: Standards and Hardware Selection

Building a reliable SFRA asset diagnostic system requires adherence to internationally accepted industry standards and the selection of testing hardware suitable for field conditions.

Industry Standard Compliance Requirements

Professional SFRA work should comply with IEC60076-18 (Transformer Frequency Response Measurement) and IEEEC57.149-2024 (Guidelines for Frequency Response Analysis and Interpretation of Oil-Immersed Transformers).

▍Note: IEEE C57.149-2024 replaces the older IEEE C57.149-2012; GDRZ-902 is also compatible with the older 2012 version's evaluation logic, used for reviewing historical test data collected according to the older standard.

Both standards specify the test frequency range, wiring methods, repeatability indicators, curve interpretation principles, and document archiving requirements, ensuring that test data is comparable and traceable between the factory, the field, and maintenance.

Existing Pain Points in Field Testing

Inadequate SFRA equipment can cause numerous field problems: repeated manual rewiring between phases is required; insufficient signal-to-noise ratio and distorted curves in substations with strong electromagnetic interference can lead to misleading diagnostic conclusions; and manual curve comparison and report compilation consume significant amounts of engineer time.

Core Characteristics of Qualified Modern SFRA Equipment

Modern SFRA analyzers need to address the above field pain points. Core capabilities include:

• Wideband sweep range meeting IEC60076-18 standards;

• High dynamic range measurement capability to suppress electromagnetic noise interference in the field;

• Stable 50Ω input and output impedance to ensure consistent test results;

• Intelligent comparison and analysis software on-board or PC to automatically calculate correlation coefficients, complete horizontal and vertical fingerprint comparisons, and output compliance reports.

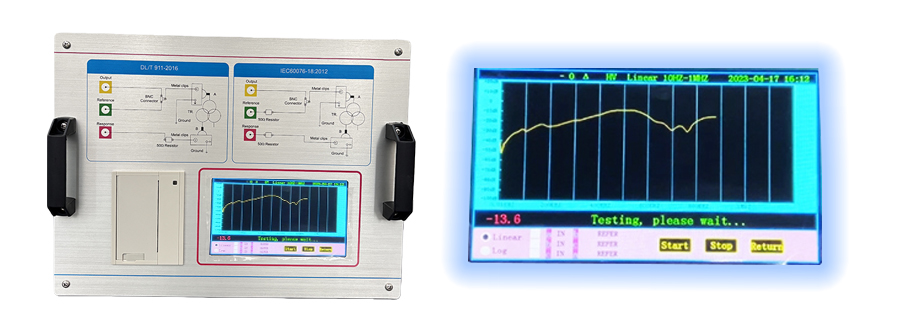

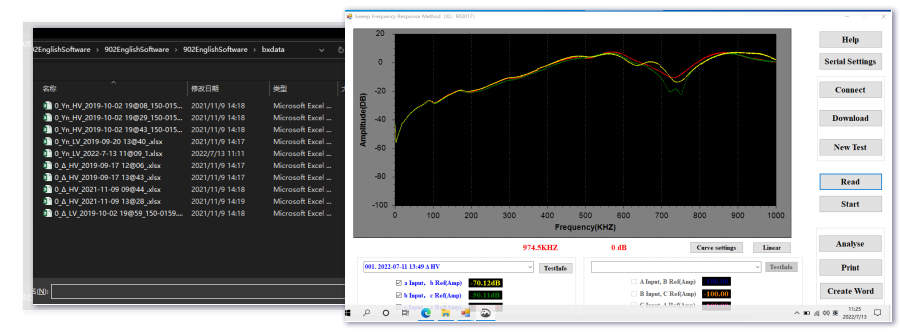

CHONGQING GOLD’s GDRZ‑902 Sweep Frequency Response Analyzer is engineered to meet above‑mentioned requirements. It supports segmented frequency‑sweep modes as defined in IEC 60076‑18, delivers wide dynamic‑range amplitude measurement, and is bundled with dedicated PC analysis software. Operators can store up to 40 groups of complete curve records on‑board, upload datasets to PC, run automatic correlation‑coefficient calculation and export standardized test reports, streamlining the complete SFRA fingerprint‑testing workflow for substation site work.

Within today’s digital, high‑reliability power‑grid environment, SFRA fingerprint testing is no longer an optional add‑on test. It has become the cornerstone of intelligent transformer asset lifecycle management. SFRA fills critical blind‑spots left by conventional electrical tests, empowering grid asset teams to make objective, data‑driven maintenance decisions and mitigate catastrophic transformer‑failure risks.
