Portable Three-phase Frequency Response Analysis Transformer Sweep Frequency Response Analyzer For Power Equipment Quality Inspection

|

 Product Description

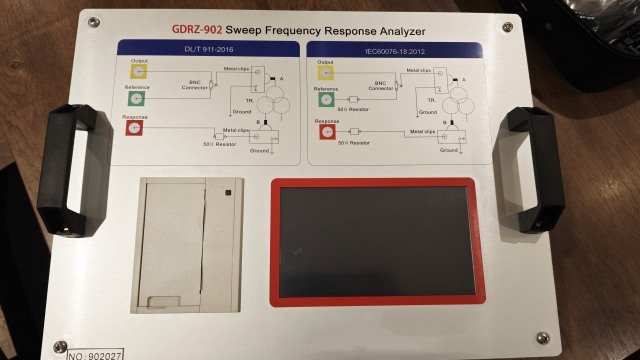

1）The GDRZ-902 Transformer Winding Deformation Tester (SFRA) is a high-precision professional instrument developed specifically for testing winding deformation of power transformers (three-phase or single-phase) in factory, handover, and fault tests. Based on the frequency sweep method and compliant with international standards such as DLT911-2016, GB/T-1094.18, and IEC60076-18:2012, it takes an ARM processor as the core for sampling, processing, and output.

2）Equipped with a color touch screen, English menu, high-speed thermal printer, and powerful data management functions, it can accurately measure amplitude-frequency and phase-frequency curves of transformer windings, providing authoritative data support for judging winding deformation degree in power laboratories.

|

 Technical Specifications

|

 Advantages

1. High Standard Compliance:

Strictly follows multiple international and domestic standards, ensuring test results are authoritative and recognized, suitable for formal laboratory calibration and certification.

2. Precision Measurement:

Adopts advanced frequency sweep technology and high-precision sampling system, with frequency accuracy less than 0.01% and high repeatability (99.5%), ensuring accurate capture of winding deformation characteristics.3. What do you do?

A: This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

4. Comprehensive Test Functions:

Measures amplitude-frequency and phase-frequency curves of each winding, supports cyclic testing of fixed-frequency phase and amplitude, and analyzes curves based on DLT911-2016 to judge deformation degree (normal, mild, significant, severe).

5. Intelligent Operation:

Color touch screen with English-Chinese bilingual interface, simple operation logic; built-in high-speed thermal printer for on-site report printing; supports data export to PC via USB for further analysis .



|

 R&D & QC-Oriented Features

1）Flexible Sweep Frequency Options: Multiple scan ranges and interval settings (e.g., 10HZ-10MHZ segmented scan, 0.5KHZ interval linear scan) to meet diverse test requirements of new product R&D.

2）Precise Deformation Evaluation: Calculates correlation coefficients of three frequency bands (LF/MF/HF) to quantitatively judge deformation degree, providing objective data for R&D optimization and QC pass/fail judgment.

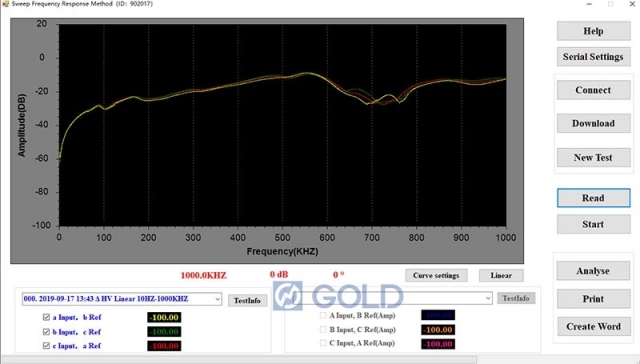

3）Comprehensive Data Analysis: PC software supports offline data reading, curve overlay comparison, and multi-group data analysis, facilitating R&D personnel to track winding performance changes and QC teams to conduct batch product quality statistics.

4）Customizable Test Modes: Supports custom frequency calibration, enabling fixed-frequency phase and amplitude cyclic testing to verify winding stability under specific working conditions.

5）Convenient Data Output: Test reports can be printed on-site via thermal printer or exported as Word/Excel files, facilitating data archiving and technical documentation in R&D and QC processes.

| Application Scenarios

R&D laboratories of transformer manufacturers

third-party quality inspection institutions

power equipment testing centers

Widely used in transformer winding structure optimization, prototype performance verification, factory quality inspection, and batch product consistency testing, helping to improve R&D efficiency and ensure product quality compliance.

|

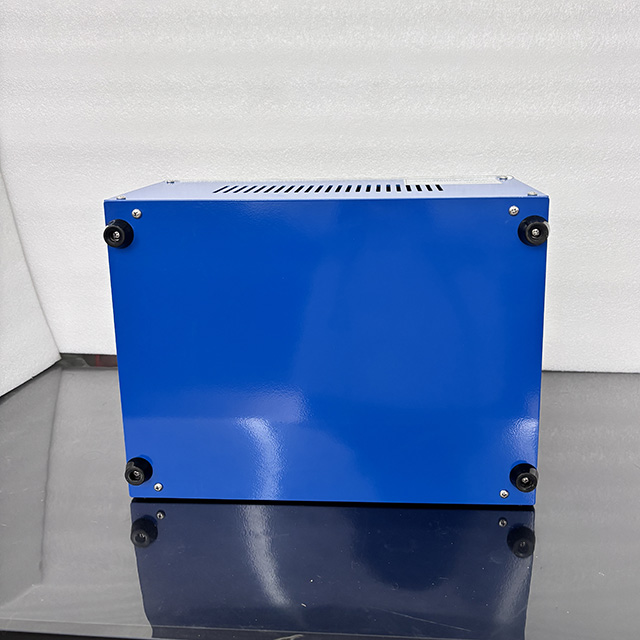

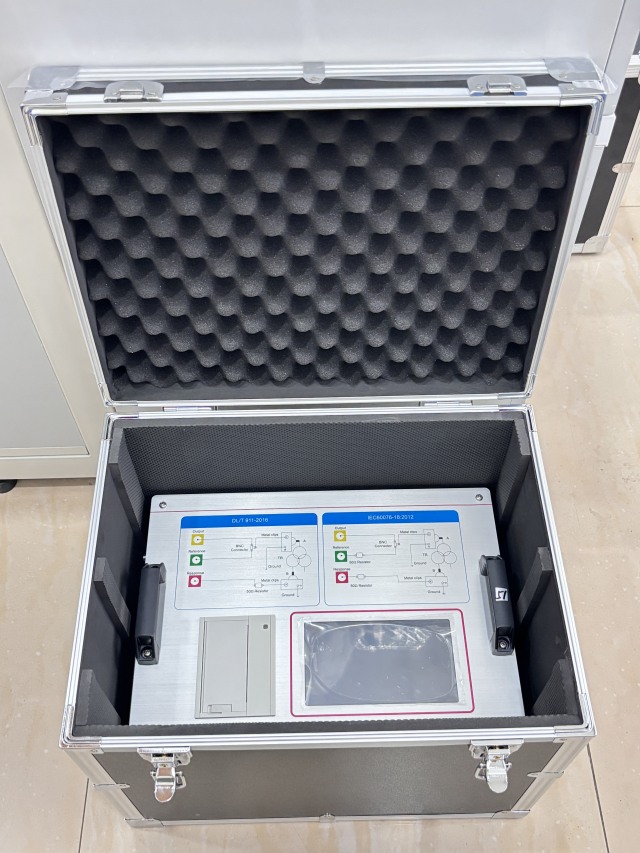

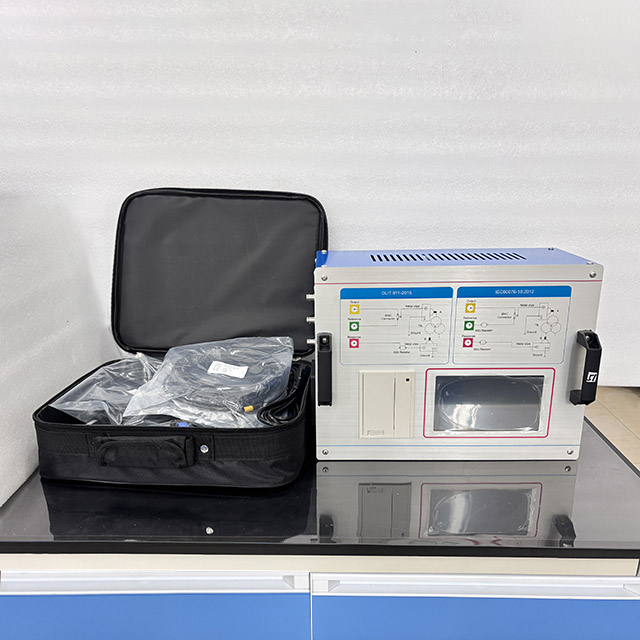

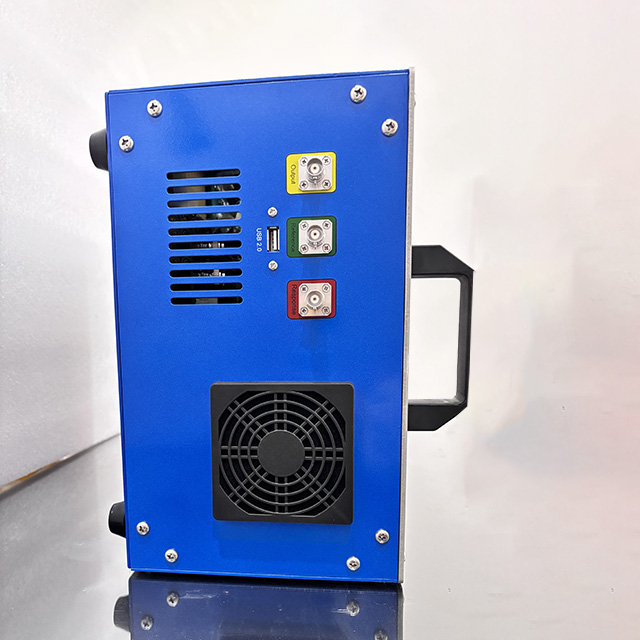

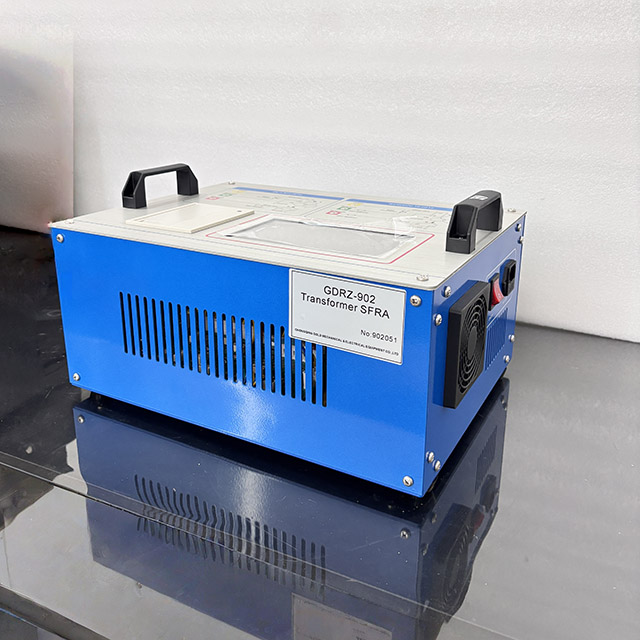

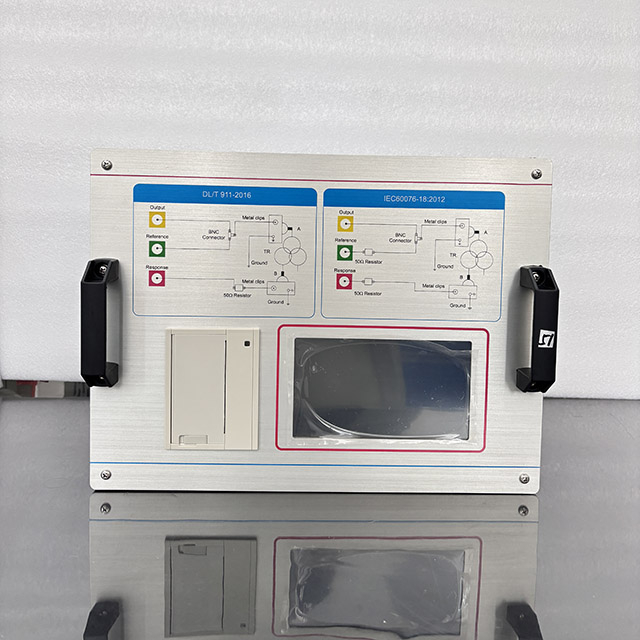

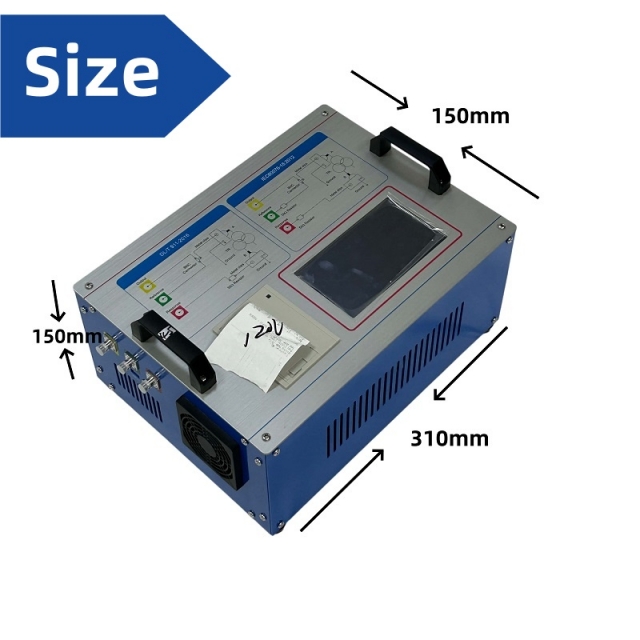

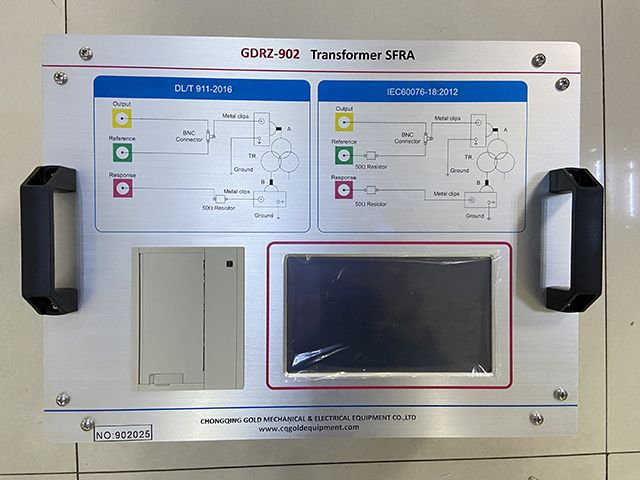

 Production Picture

|
