Product Overview

The GDGS dielectric loss IPF tester is a portable and efficient power testing equipment that focuses on solving the problems of dielectric loss and capacitance measurement in high-voltage electrical equipment. It is suitable for rapid on-site testing and precise laboratory calibration.

The equipment adopts frequency conversion anti-interference technology, built-in high voltage source and standard capacitor, supports multi scenario testing such as CVT, LCR, and transformation ratio, with simple operation, accurate data, safety and reliability, fully meeting the daily detection needs of the power industry.

Product Features

• Large screen touch control, one click operation, simple and easy to learn

• Frequency conversion anti-interference, on-site measurement data does not drift

• Multi functional integration, one unit at most, saving costs

• Automatically store and print, making data management easier

• Comprehensive security protection, testing is more reassuring

Product features

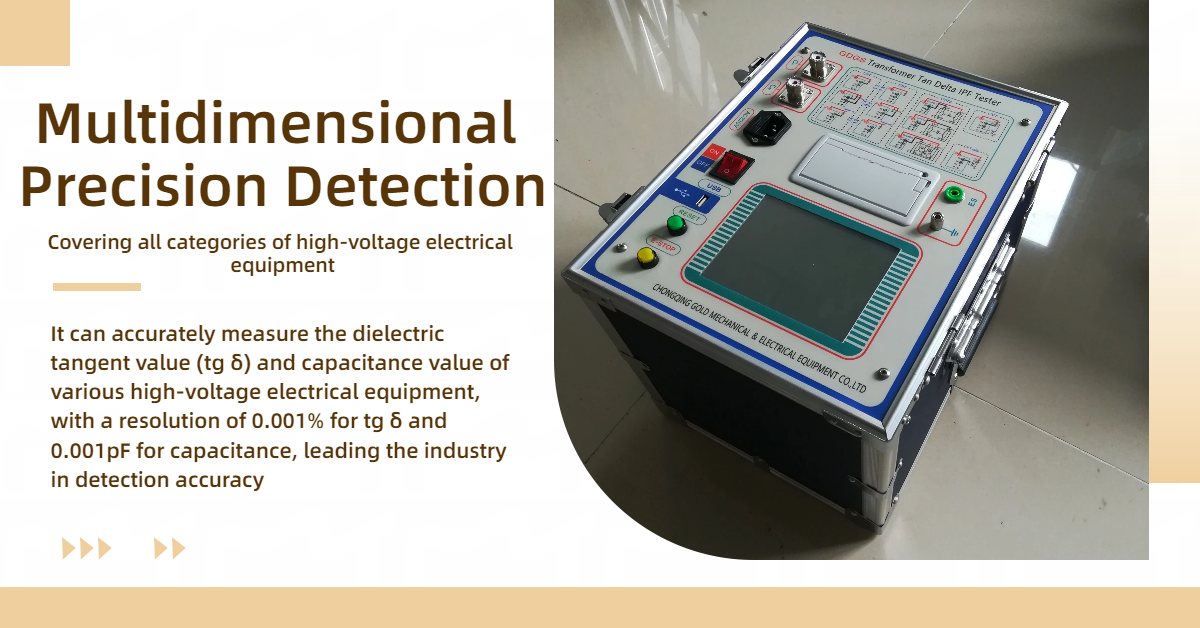

1. Measurement of dielectric loss and capacitance of transformers/high-voltage equipment

2. CVT equipment C1/C2 individual/synchronous testing, no disassembly lead testing

3. CVT ratio and angle difference measurement

4. Automatic measurement of inductance L, capacitance C, and resistance R

5. Insulation oil dielectric loss test

6. Data storage, query, printing, USB drive export

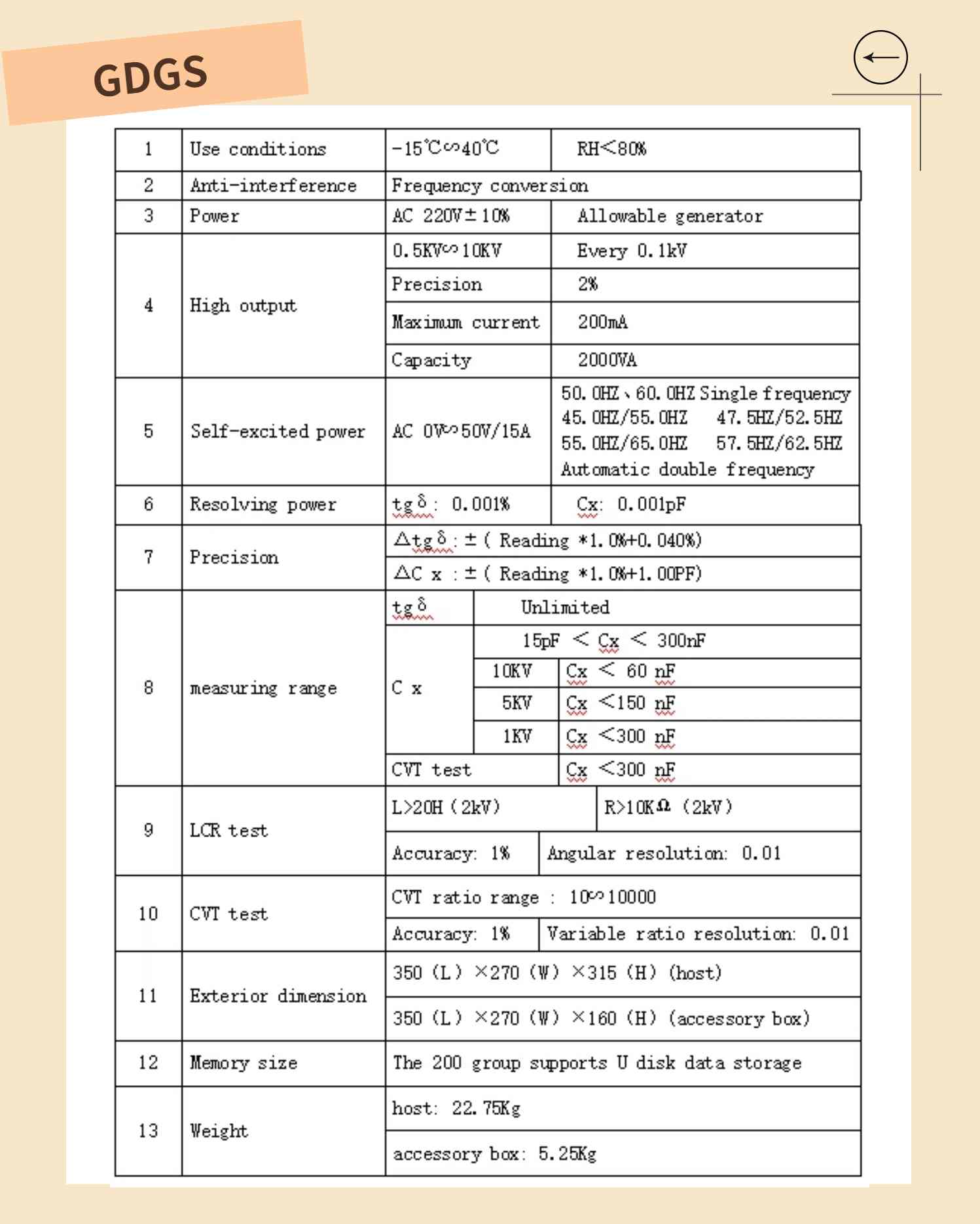

Product Parameters

Product advantages

• Accurate and stable: high-precision measurement chip, data is real and reliable, with small repeated measurement errors

• Strong anti-interference: Multi speed frequency conversion switching, accurate measurement still in strong electrical environment on site

• Efficient and convenient: Integrated design, no need for external accessories, single person can complete testing

• Safe and durable: multiple protection mechanisms, industrial grade quality, suitable for harsh on-site environments

• Strong universality: compatible with both mains and generator power supply, meeting different usage scenarios

Application scenarios

1. Regular inspection of high-voltage equipment in substations

2. Insulation status monitoring of power plant equipment

3. On site operation of power maintenance company

4. Equipment manufacturer's factory quality inspection

5. Laboratory research testing and analysis
