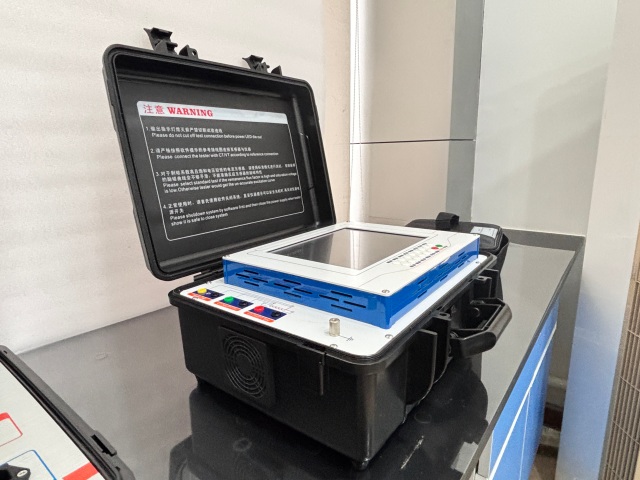

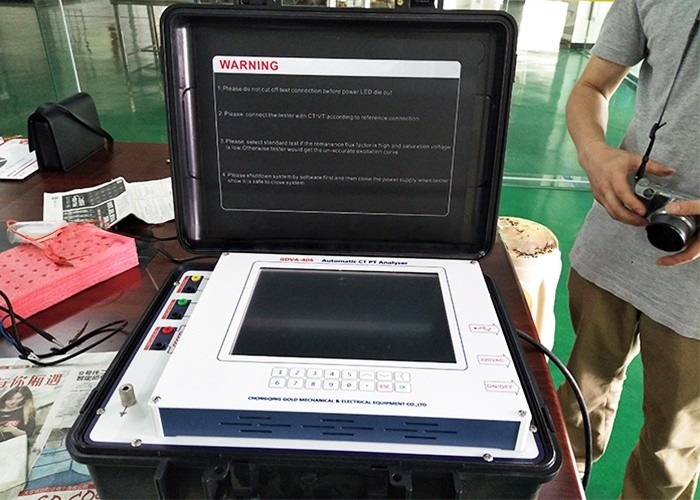

GDVA-405
GOLD

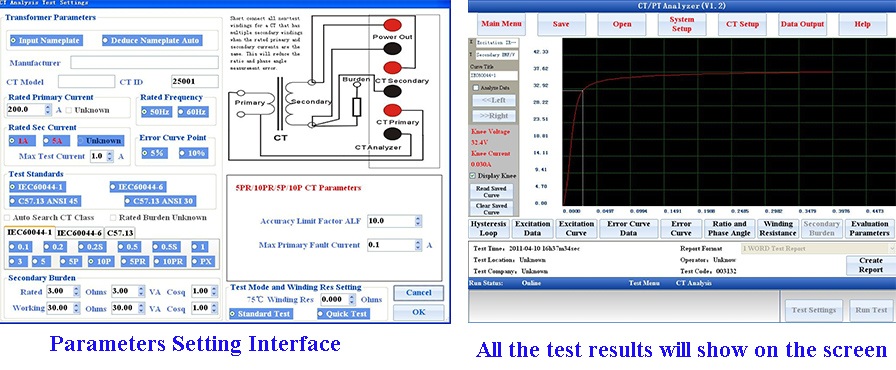

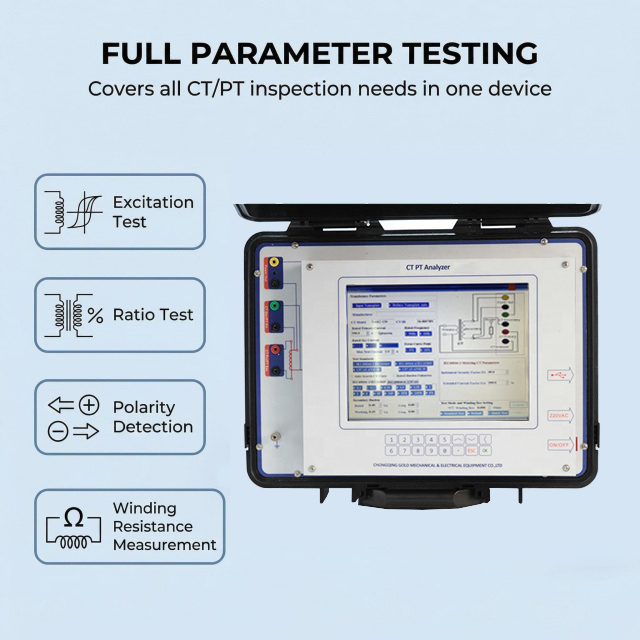

This analyzer can conduct CT excitation parameters & curve tests, ratio & phase error tests, polarity verification, winding resistance, secondary burden measurement, 10% error curve calculation for protection CTs, as well as PT ratio, polarity, secondary burden and winding resistance tests.
It also features nameplate parameter guessing and transient CT analysis, suitable for substations, power plants, and laboratories.
High accuracy：Ratio error as low as ±0.05% (range 1~2000), phase error ±2min, current measurement error ＜±0.1%+0.01%FS.
Wide range with auto‑ranging：Voltage output 0.1~180V, current output 0.001~5A, power 500VA. Auto‑ranging on all measurements – no manual switching.
Low‑frequency excitation technology：Uses frequencies down to 0.25Hz, enabling safe low‑voltage testing of high‑saturation‑voltage CTs (equivalent knee point up to 45kV).
Intelligent nameplate guessing：When nameplate data is missing, the analyzer estimates rated primary/secondary current and accuracy class based on measured winding resistance, turns ratio and excitation characteristics.
Large memory & reporting：Stores over 1000 test records, generates Word test reports, and exports data to USB drive.
Two‑in‑one：Supports full test suites for both current transformers (CT) and voltage transformers (PT).
Multi‑standard compliance：Works with IEC60044‑1/2/5/6, C57.13; automatic pass/fail evaluation per selected standard.
Auto‑evaluation：Compares measured values against standard limits – failed items highlighted in red.
Excitation curve overlay：Compare current curve with a saved curve on the same graph to detect core changes.
Built‑in degaussing：Two degaussing cycles are included in the test sequence to ensure repeatability.

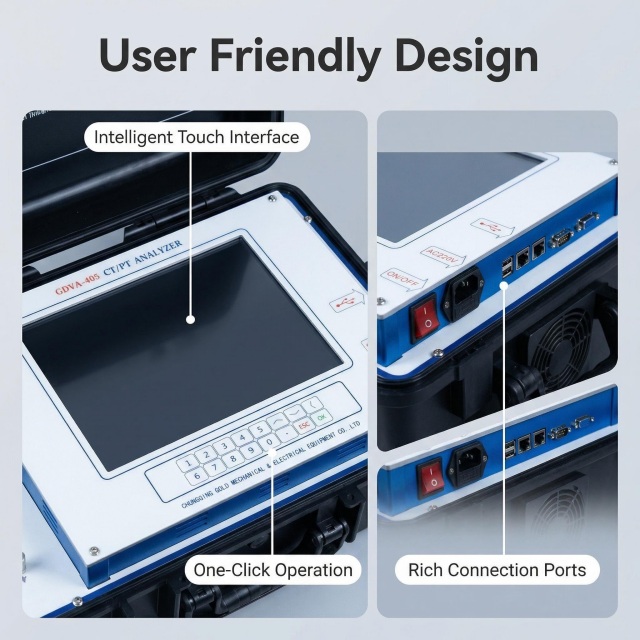

Safety protections：No direct high‑voltage input; all outputs generated internally. Equipped with grounding terminal and LED status indicator.
Parameter | Value |
|---|---|
Power supply | AC220V±10%, 50/60Hz±10% |
Voltage output | 0.1~180V (AC) |
Current output | 0.001~5A (RMS) |
Output power | 500VA |
Max knee voltage measurement | 45kV (equivalent) |
Current measurement | 0~10A, error ＜±0.1%+0.01%FS, auto‑range |
Voltage measurement | 0~200V, error ＜±0.1%+0.01%FS, auto‑range |
Turns ratio measurement | Range 1~35000; 1~2000 error＜0.05%, 2000~5000＜0.1%, 5000~35000＜0.2% |
Phase measurement | Error ±2min, resolution 0.01min |
Winding resistance | 0~8kΩ, error ＜0.2%RDG+0.02%FS, max res. 0.1mΩ |
CT secondary burden | 0~160Ω, error ＜0.2%RDG+0.02%FS |
PT secondary burden | 0~80kΩ, error ＜0.2%RDG+0.02%FS |
PT ratio | 1~35000; 1~5000 error＜0.2%, 5000~35000＜0.5% |
Memory capacity | ＞1000 test groups |
Operating temperature | -10℃～50℃, humidity ≤90% |

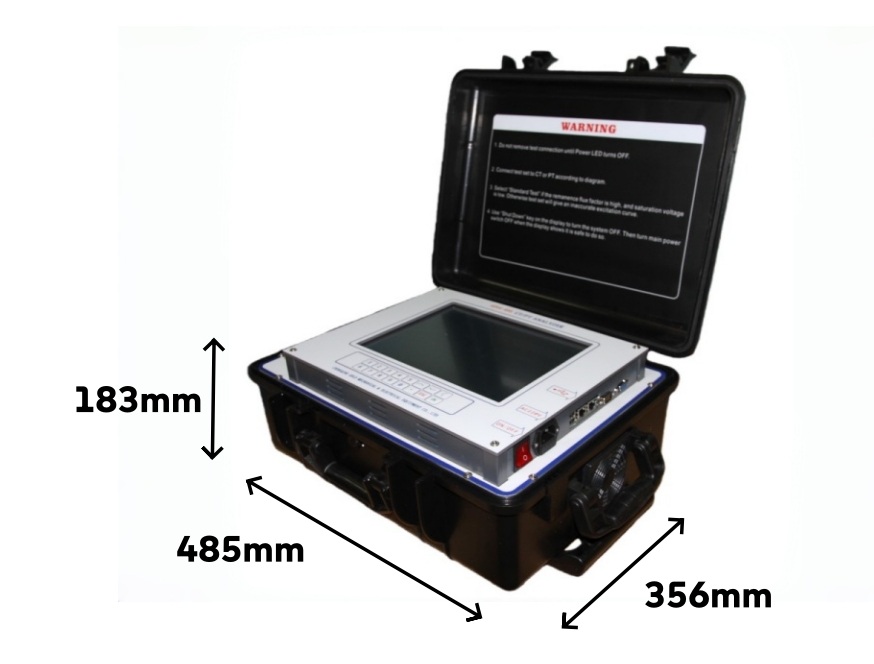

Dimensions | 485mm×356mm×183mm |
Weight | ＜15kg |

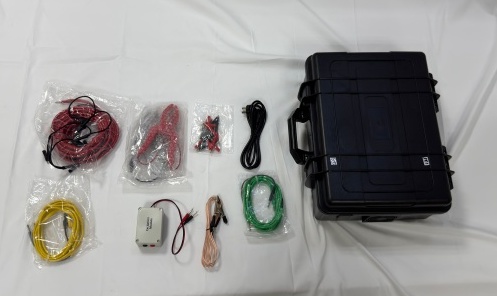

Main unit ×1
3m shielded cable ×2 (power output / CT secondary)
10m shielded cable ×1 (CT primary)
Grounding cable ×1
Large test pliers (red & black each 1)
Test gaskets (red×2, black×2), test pins (red×2, black×2), test pliers (red×3, black×9)
Short connection cable (with 6 terminals) ×1
3A fuse ×3
Power cable ×1
Accessory bag ×1
Production disk (software + manual) ×1
User manual ×2
Inspection report ×1
Certificate of conformity ×1
