Efficient And Intelligent- Three Phase Transformer Capacitance And Inductance Tester Capacitor Loss Factor Resistance Measurement Meter
Introduction

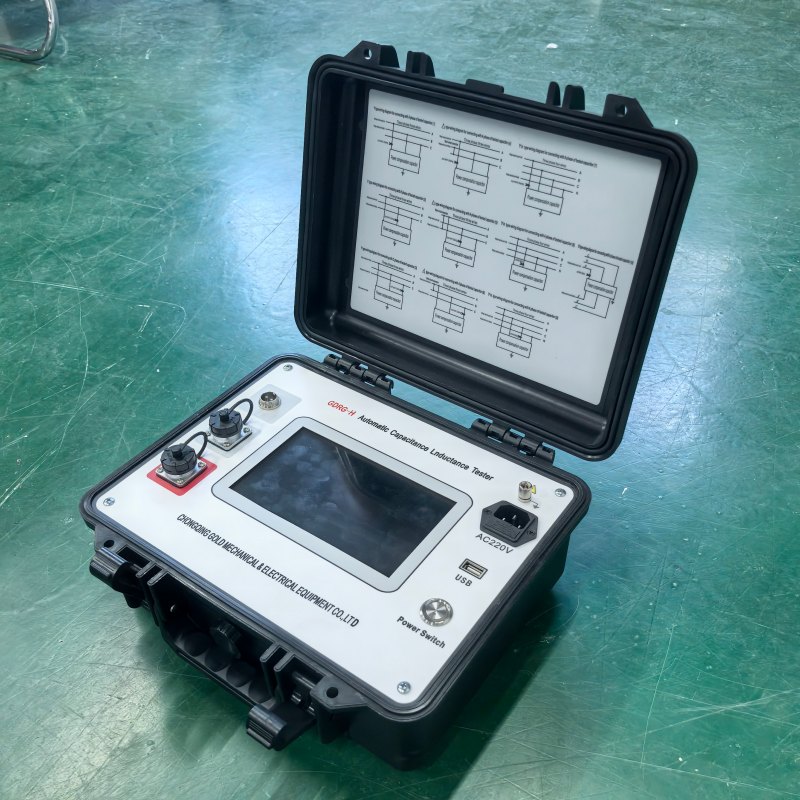

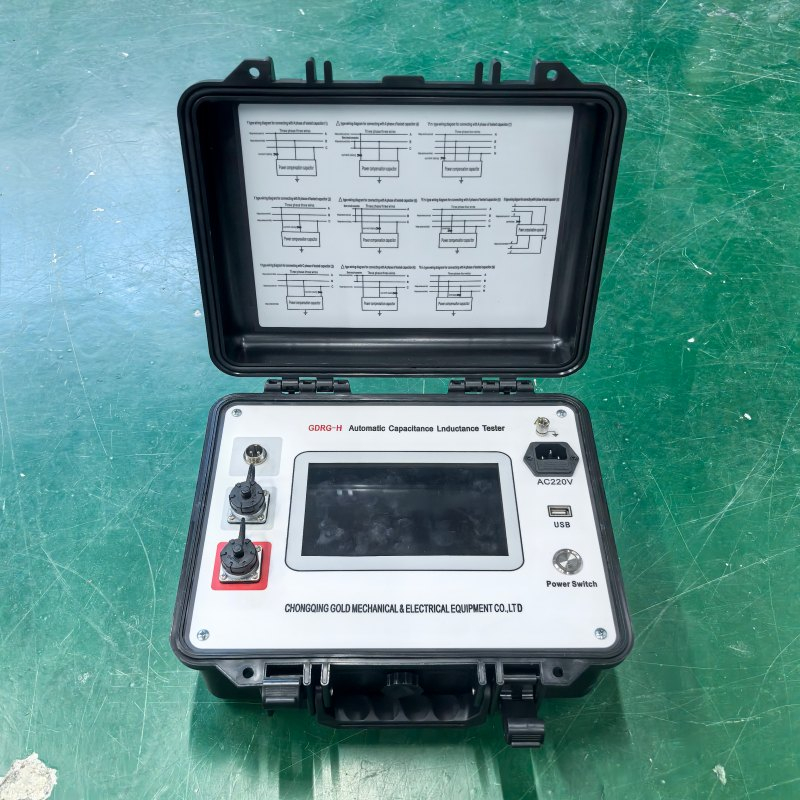

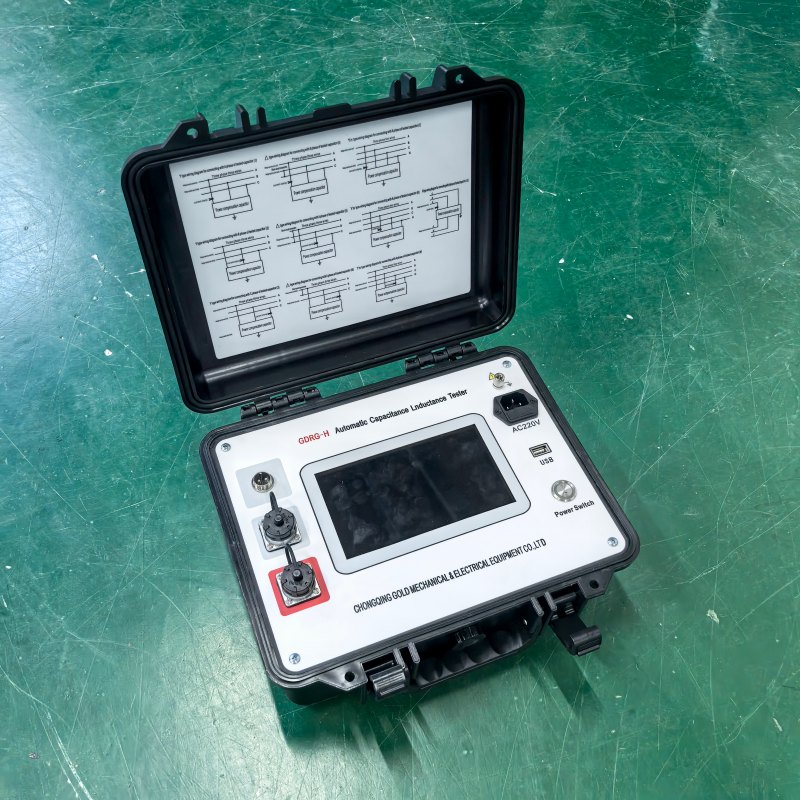

GDRG-H Automatic Capacitance Inductance Tester
GDRG-H is a highly integrated automatic capacitance inductance tester with precise measurement, intelligent analysis and data storage functions, providing a convenient and reliable testing solution for power operation and maintenance.
Technique parameters
1) Capacitance measurement range and accuracy
Capacitance measurement range: 0.1uF~6800uF
Accuracy: ±(reading *1%+0.005uF)
Resolution: 0.001uF
2) Inductance measurement range and accuracy
Inductance measurement range: 100μH~50H
Accuracy: ±reading*2%
3) Power supply and Test Power
Power supply: AC 220V±10%,50Hz
Output voltage (open circuit): AC 23V±10%, 50Hz (capacitance); AC 3V±20%,50Hz(inductance).
Maximum output current: 20A.
Output short circuit protection: Automatic
4) Working conditions
Temperature: -10℃～+40℃; relative humidity:≤90%;
Technical features
 | Wire-free Test Design |
| Equipped with high-current and high-precision current clamps, on-site measurement without removing cables, avoiding equipment damage and greatly improving test efficiency |
| Intelligent Parameter Calculation |
| Automatically calculates each phase and total capacitance, reactive power and other data after three-phase testing, intuitively distinguishing component quality and faults |
| Four-terminal Measurement Technology |
| Combined with automatic segmented current compensation, it features high measurement accuracy, good repeatability and strong data stability |
| 7-inch Color Touch Screen |
| The operation interface is intuitive and easy to understand, allowing quick start without complex training |
precision measurement parameter
Capacitance measurement range is 0.1uF~6800uF with accuracy ±(reading×1%+0.005uF) and resolution 0.001uF; Inductance measurement range is 100μH~50H with accuracy ±reading×2%.
It can also accurately measure key parameters such as dielectric loss angle, loss factor and active power, meeting industrial-grade testing requirements.
Detail

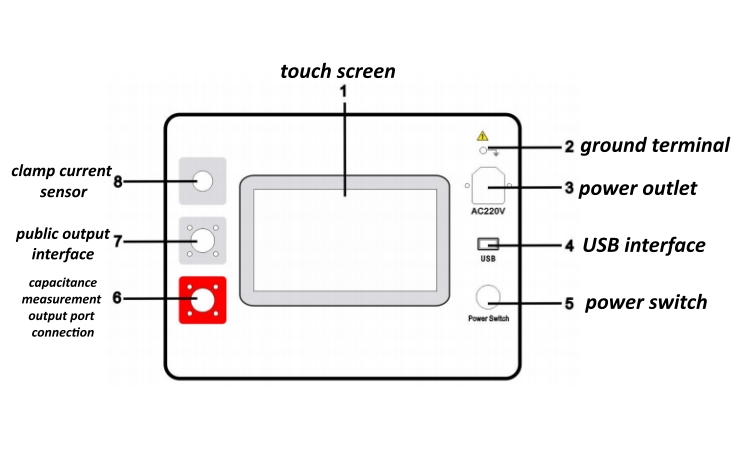

panel layout
