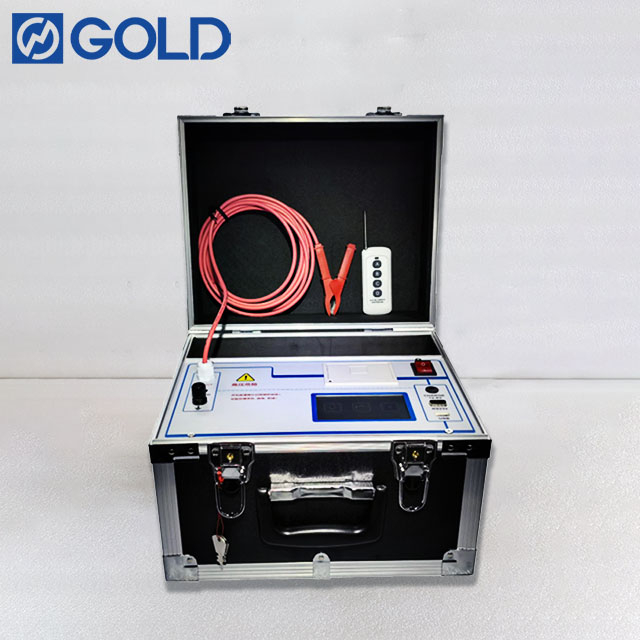

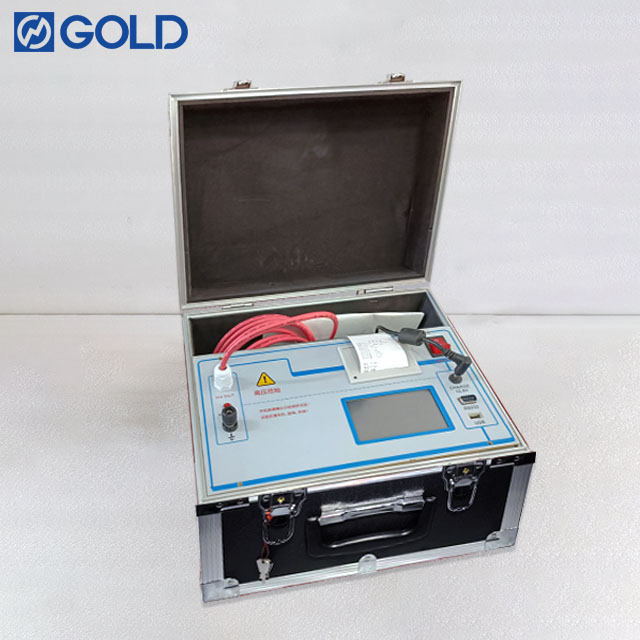

zinc oxide surge arrester DC parameter tester
GOLD

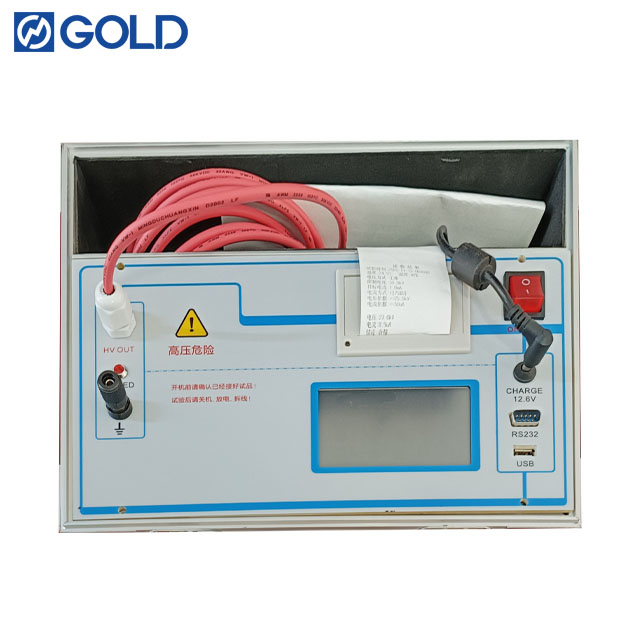

Remote Bluetooth Wireless Control MOA DC Reference Voltage Tester
Introduction:
zinc oxide surge arrester DC parameter tester is an intelligent instrument designed specifically for defect detection of valve plates in gapless zinc oxide surge arresters in 10kV and below power systems, based on DL/T596 and GB/T 11032 standards.
Parameters:
| 1. Measurement Range: | Voltage: 0～30kV Current: 0～1000μA Ripple Coefficient: ≤1.5% |
| 2. Resolution: | Voltage: 0.01 kV Current: 0.1μA |
| 3. Accuracy: | Voltage: 5%rdg±10dgt Current: 5%rdg±10dg |
| 4. Power Supply: | Rechargeable lithium battery |
| 5. Effective Remote Control Distance: | 120M |
| 6. Ambient Temperature: | -10℃～50℃ |
| 7. Relative Humidity: | ≤85% at 25℃ |
| 8. Altitude: | <1000M |
| 9. Battery Capacity: | 12.6V/4000mAh |
Features:
Intelligent Criteria and Result Identification:
After the test, the system automatically compares the results with the user-defined "voltage criteria" and "current criteria." The interface directly displays "qualified" or "abnormal" icons, eliminating the need for manual table lookups and providing a clear understanding of the test conclusions.
Automatic Temperature and Humidity Recording:
Built-in high-precision temperature and humidity sensors automatically correlate test data with ambient temperature and humidity, ensuring compliance with regulations while eliminating the need for external thermometers and hygrometers.
Data Management:
Massive Storage: Large-capacity FLASH memory stores historical test data, ensuring data retention even in the event of power failure.
USB Export: Simply insert a USB drive to export a Word document for easy report generation, archiving, and sharing.
Built-in Thermal Printer: Print test results instantly on-site
Localized Information Identification:
Supports input of site name, equipment number, test personnel, and remarks, ensuring clear data traceability and facilitating ledger management.

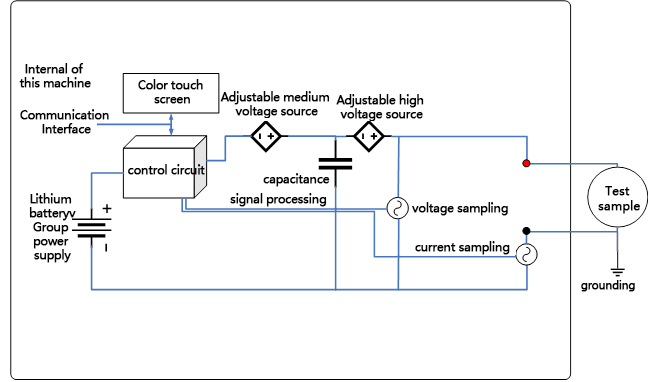

wiring diagram
Applicable Scenarios:
Annual preventive testing at substations/power plants: Complies with DL/T596-2021 regulations
Surge arrester manufacturers: Factory inspection, batch testing, one-button continuous operation
Field/No-power-supply sites: Built-in lithium battery powered, no external power supply required
Laboratory accuracy calibration: "Inspection" mode meets third-party testing requirements
