Introduction：

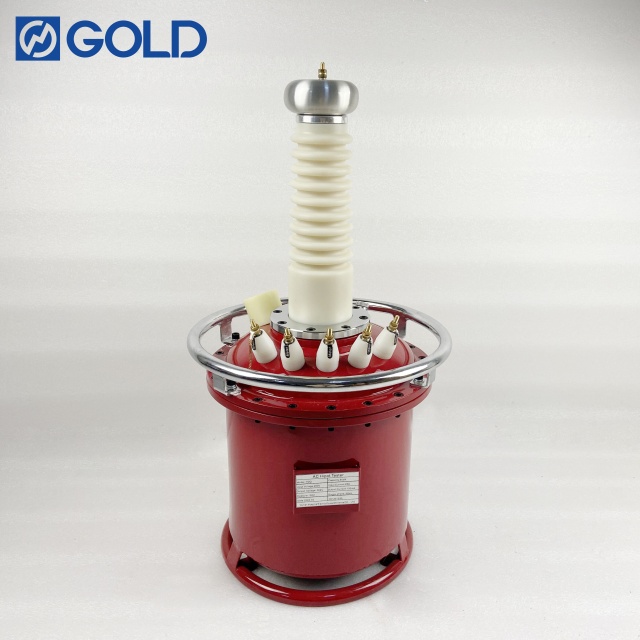

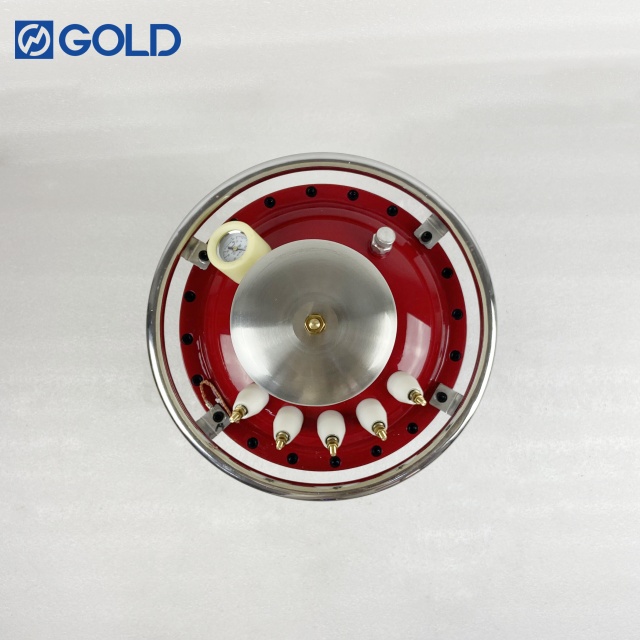

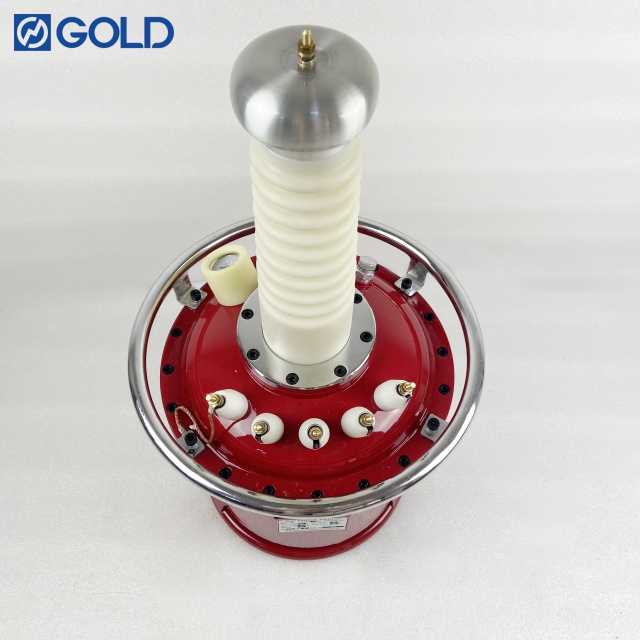

SF6 test transformers use insulating gases such as sulfur hexafluoride as the medium. Compared to oil transformers, SF6 test transformers are smaller in size, lighter in weight, oil-free, maintenance free, and not affected by harsh weather environments. The equipment is widely used for on-site inspections and field operations that require frequent movement.
Technical specification:
Model | Capacity
（KVA） | High Frequency Voltage Output Voltage （KV） | High Frequency Voltage Output Current（mA) | Low Frequency
Voltage input |
Ratio | Tempera- ture(℃) raised/ 30 minute | |
V |
A | ||||||
GDJ-1.5 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
GDJ -3 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
GDJ -5 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
GDJ -10 | 10 | 50 | 200 | 220/380 | 50/26 | 500 | 10 |
GDJ -20 | 20 | 50 | 400 | 380 | 53 | 500 | 10 |
GDJ -30 | 30 | 50 | 600 | 380 | 79 | 500 | 10 |
GDJ -40 | 40 | 50 | 800 | 380 | 105 | 500 | 10 |
| GDJ -50 | 50 | 50 | 1000 | 380 | 132 | 500 | 10 |
| For those with special specification requirements, they can also be designed and produced according to the parameters and requirements provided by the user to meet their needs | |||||||
Features：
The device has a small size, light weight, and is easy to transport outdoors
Easy to clean, oil-free, maintenance free, and refreshed anytime, anywhere
Can withstand most harsh weather conditions and move safely even during testing

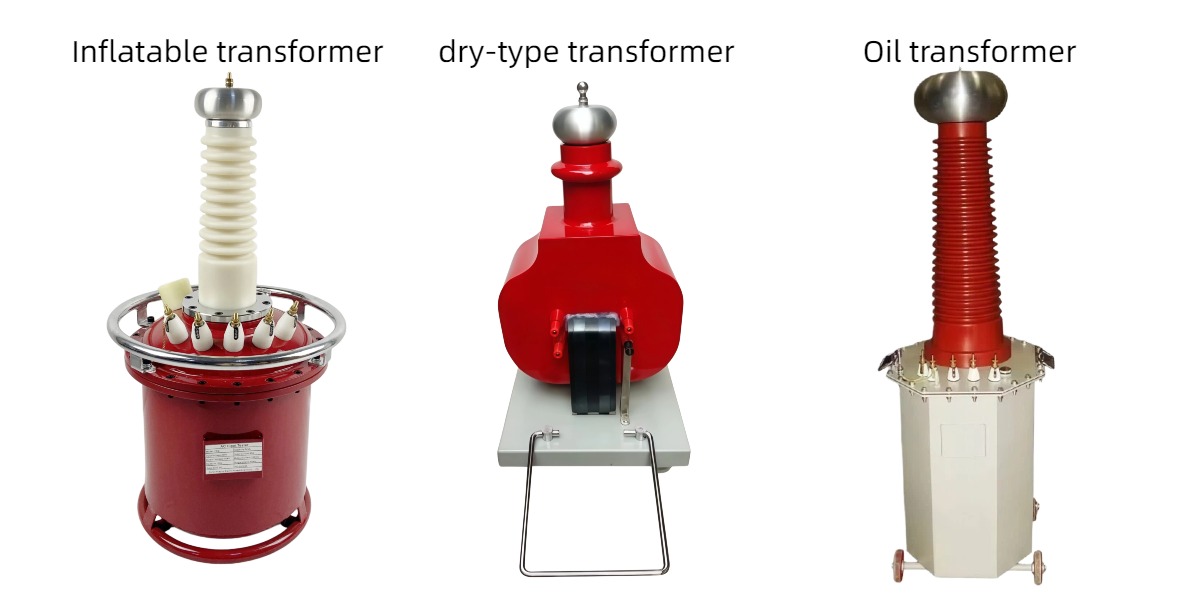

Compared to traditional oil immersed test transformer products on the market, the insulation strength is superior
