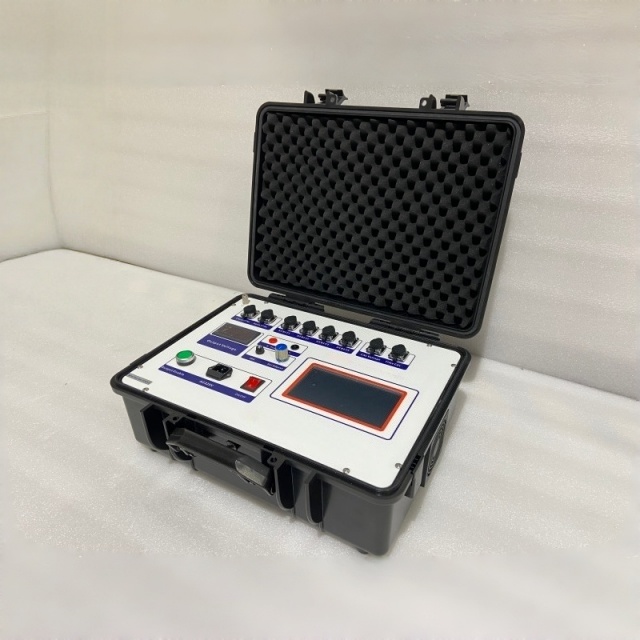

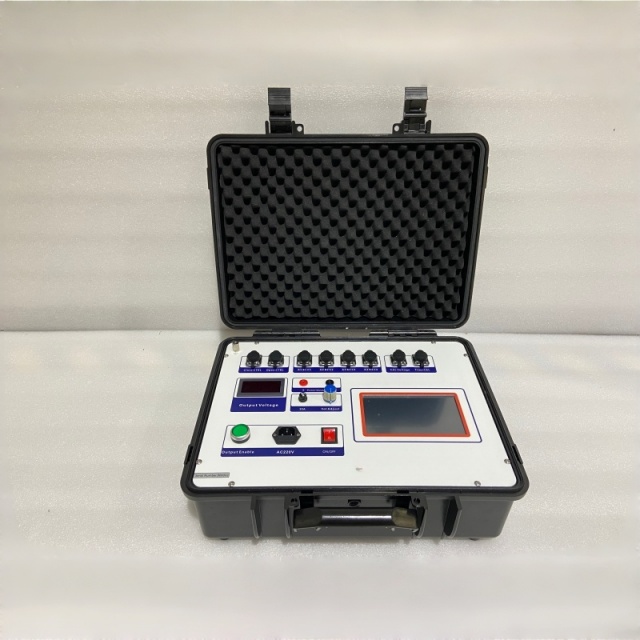

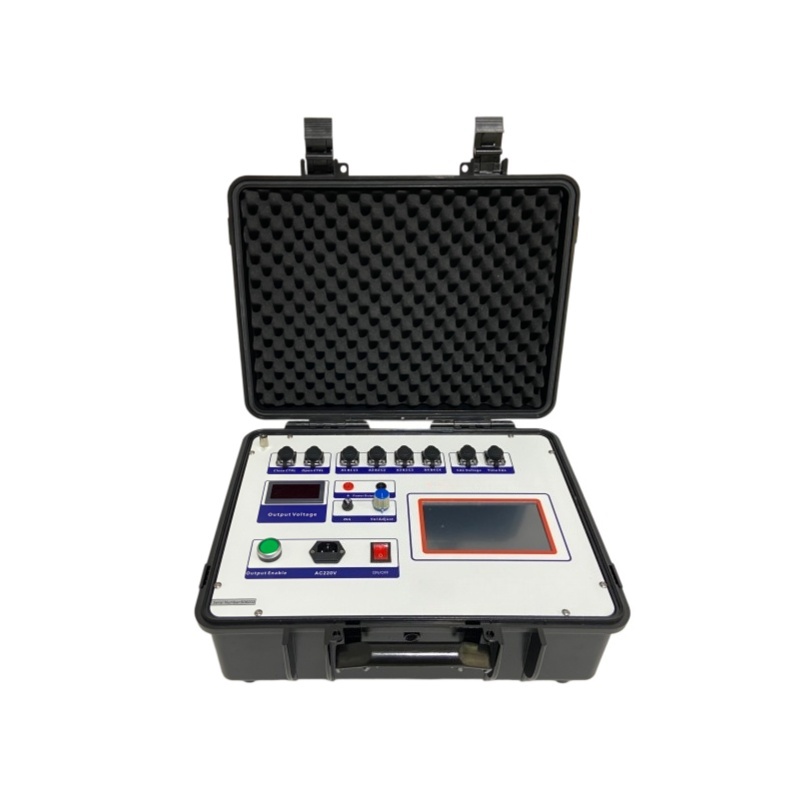

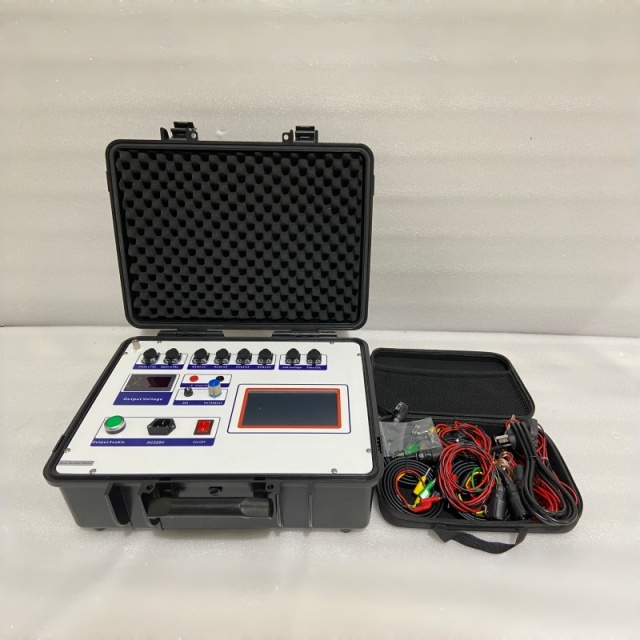

1% Accuracy Circuit Breaker Analyzer Calibration Device | High Voltage Switch Dynamic Characteristics Comprehensive Tester Calibration Device
GDMS-6 Circuit Breaker Calibration Tester is specially designed for laboratory precision calibration, featuring ultra-high precision, multi-parameter synchronous calibration, data traceability and other characteristics, and is a professional tool for quality control of high-voltage switch test equipment.
1)The device has 12-way break output, which can simulate 12 high-voltage circuit breaker contacts at the same time.

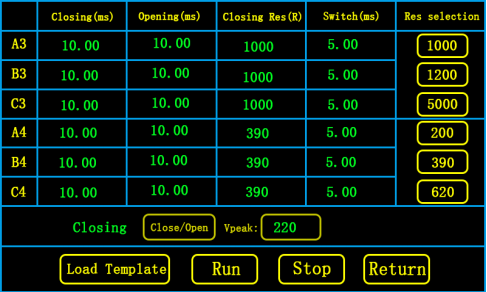

2)Built-in 6-way closing resistance calibration, which can simultaneously calibrate 6-way closing resistance, closing time and
throwing time.
3)High-voltage circuit breaker closing or breaking time setting range 0.01-9999.99ms, error (±0.01% +10us).
4) Time resolution: 5us.
5) Bounce time can be set arbitrarily.
6)The number of bounces can be set in the range of 0-20 (the length
of a single bounce must be greater than 200us).
7) Support for non-simultaneous testing.
8) Built-in adjustable DC voltage output (20-265V adjustable 1%).

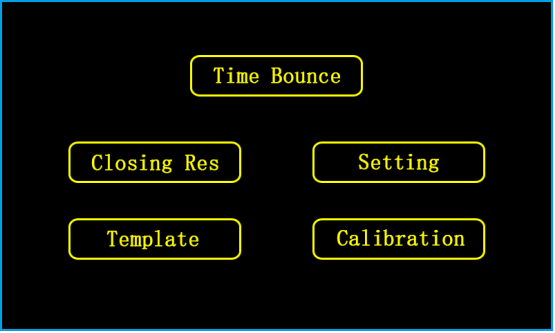

9) Color touch screen operation, simple and intuitive.
10)Support internal trigger, external trigger, active trigger, passive trigger.
11) Ambient temperature: 0-50℃, Ambient humidity: less than 90%
 | Strictly follows electrical safety specifications, must be reliably grounded in non-laboratory environments to effectively release static electricity and induced voltage, avoiding electric shock risks. |

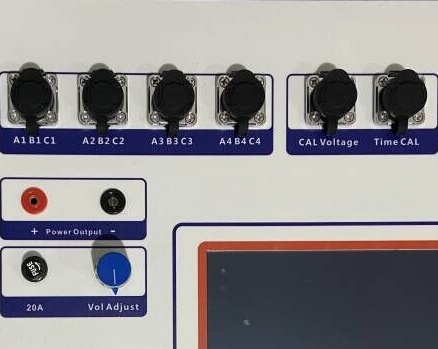

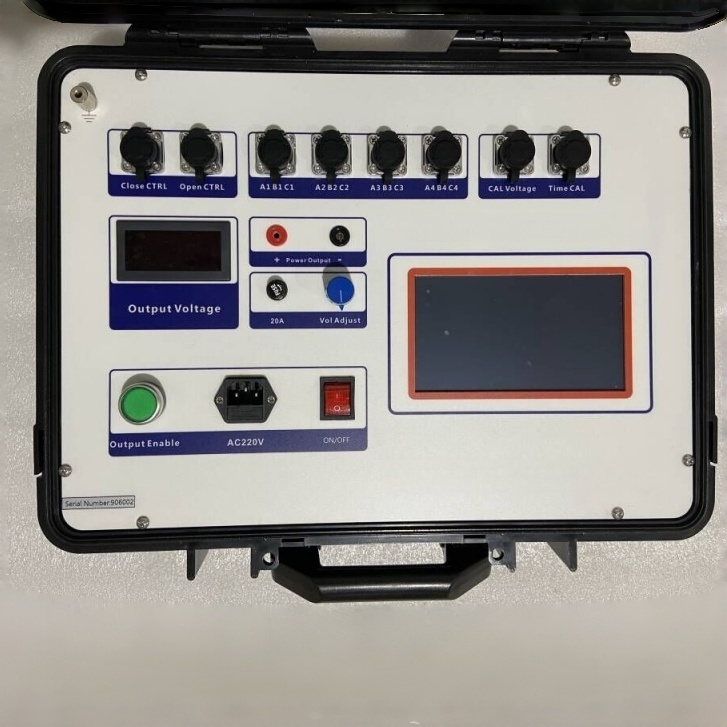

| High-voltage output is controlled by an independent "Output Enable" key, and the output ports are clearly identified to prevent dangerous triggering by misoperation and protect the safety of operators |
| Built-in 3A fuse and overcurrent protection mechanism, automatically cutting off the power supply when the output current exceeds the standard to avoid damage to core components of the device. |
| The trigger circuit is completely isolated from the signal acquisition system, preventing signal interference and potential conflicts, and avoiding high-voltage intrusion into the control circuit causing faults. |
DSP high-speed control chip has fast computing speed, stable output of calibration signals, good repeatability of multiple calibration data, and error controlled within a very small range.
Strong synchronism of 12-way breaker output, accurately simulating multi-contact coordinated actions, ensuring calibration accuracy of multi-break switch testers.
Precise and stable closing resistance value, rapid response to switching time calibration, meeting dynamic calibration needs. Wide temperature and humidity operating range, maintaining stable performance in harsh environments without attenuation of calibration accuracy.
