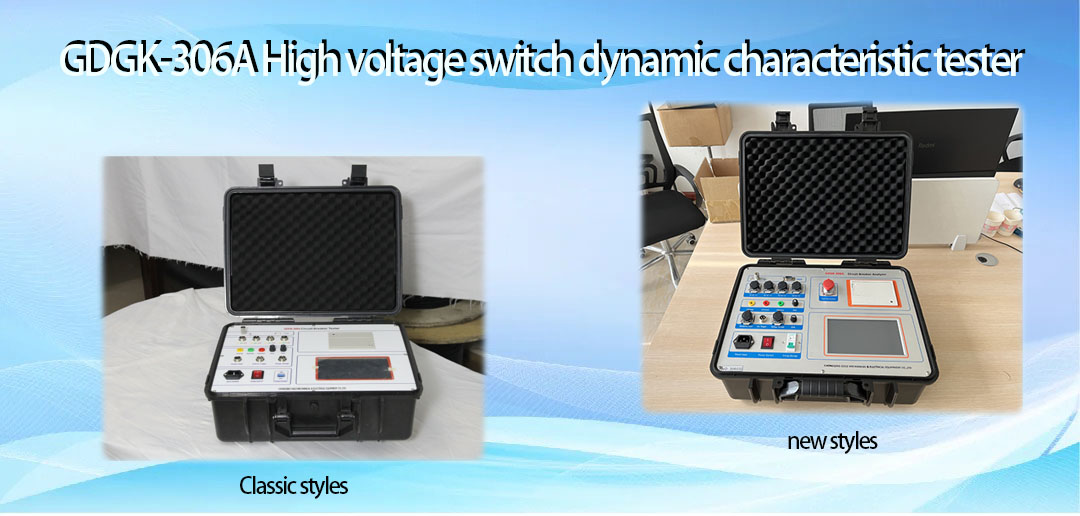

GDGK-306A
GOLD
|
Product Description

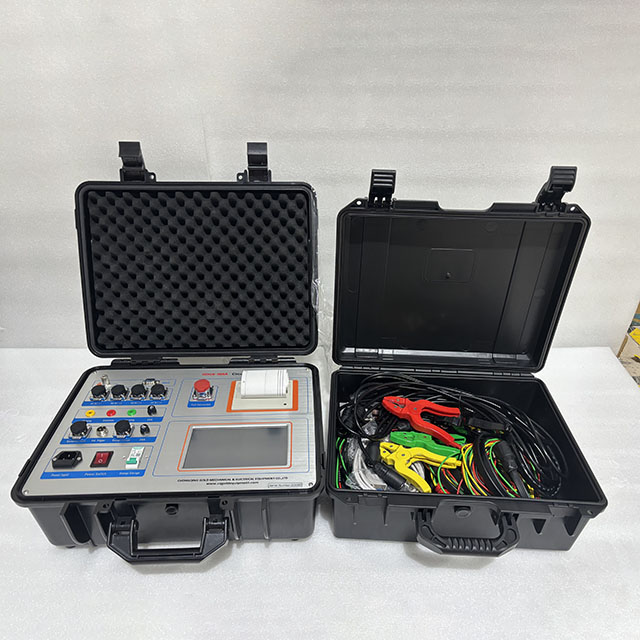

The GDGK-306A is a special instrument designed for dynamic characteristic testing of high-voltage switches, with comprehensive functions and accurate data. Compatible with oil switches, vacuum switches and other types, it is easy to operate and has strong anti-interference, making it the preferred equipment for on-site testing.
|
Intelligent Operation & Data Management
.English menu human-machine interface, convenient operation with a rotary mouse, easy to use without professional training
.Supports local storage of test data (up to 24 sets of opening/closing data and 8 sets of reclosing data), with historical data accessible at any time
.Equipped with PC communication function, enabling computer-controlled testing, data upload, and remote analysis via USB connection
.Directly prints test reports, supporting multi-dimensional data visualization output such as fracture curves and stroke-time curves
|
Core Testing Functions Coverage
 | Accurately captures bounce time, vacuum switch bounce count, and stroke parameters such as opening distance and overtravel |
| Measures just-opening/just-closing speed, maximum speed, average speed, and synchronously generates speed-distance curves |
| Real-time displays operating current curves to fully grasp the entire process data of switch operations |
| Measures opening/closing time, reclosing time, and in-phase/maximum asynchrony of up to 12 fractures |
|
Industrial-Grade High-Precision Technical Advantages
1)Time measurement resolution up to 0.01ms, error only ±0.5%, setting time 0-6 seconds, ensuring accurate and reliable data 2)Stroke measurement range 250mm, resolution 0.01mm, error ±1mm, meeting precision testing requirements
3)Speed measurement range 0-20m/s, covering various operating speed scenarios of high-voltage switches
4)Anti-interference design adapts to complex on-site environments, ensuring stable output of test data
|

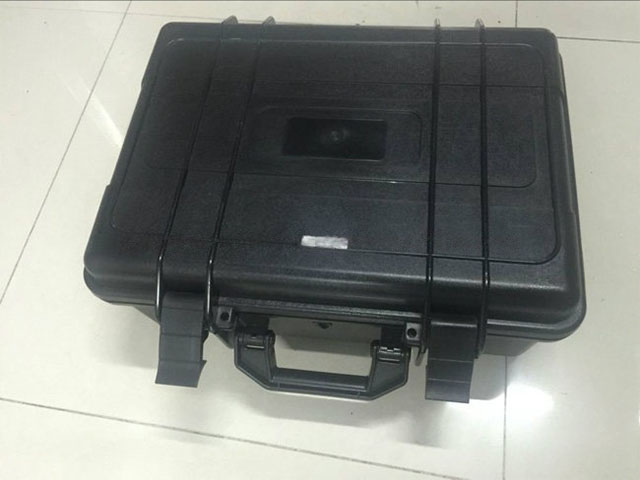

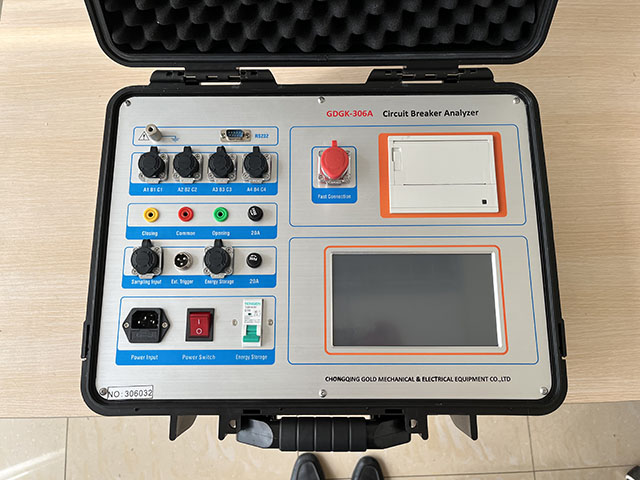

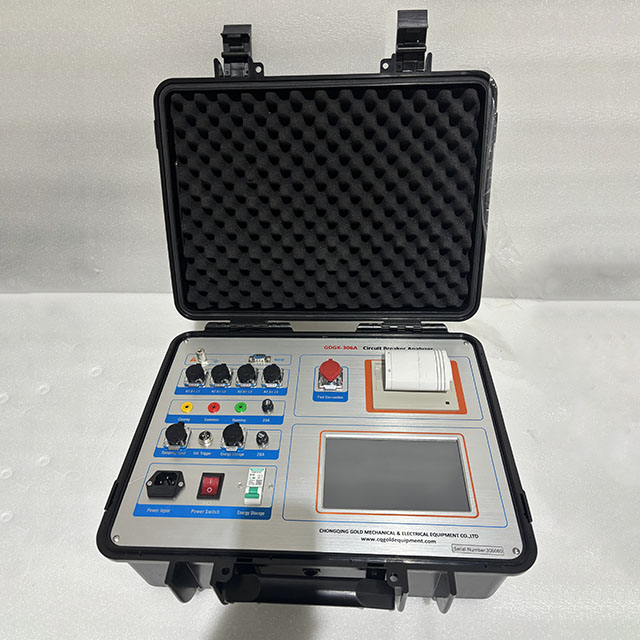

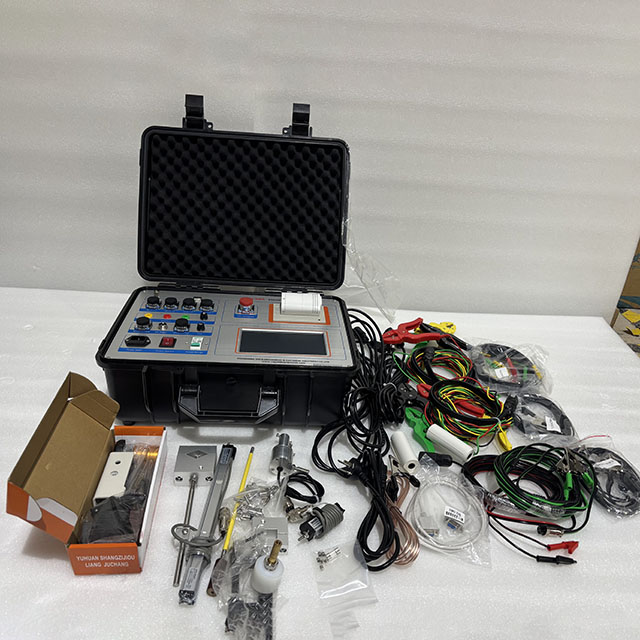

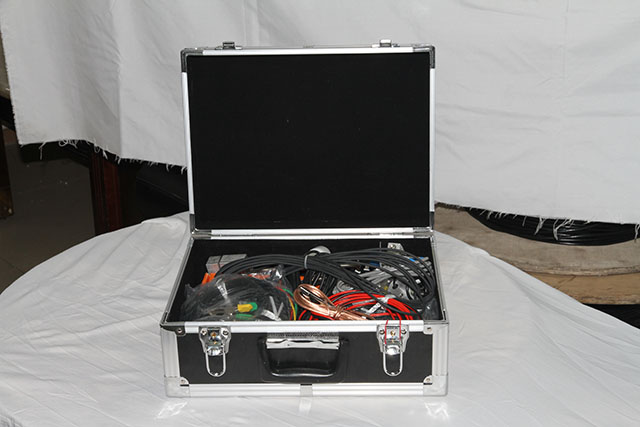

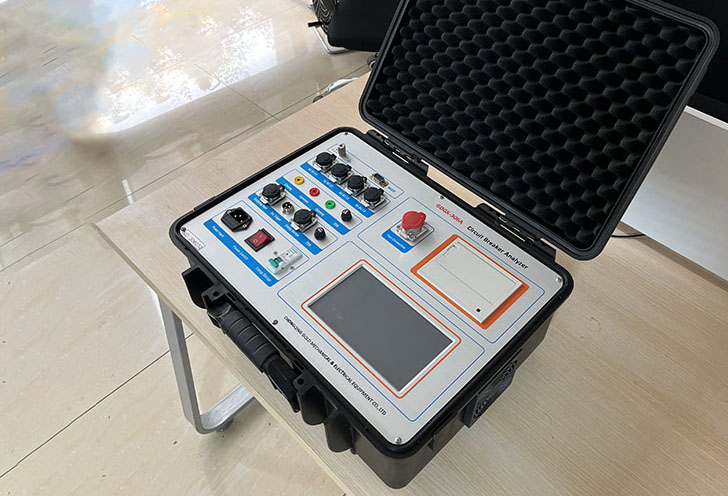

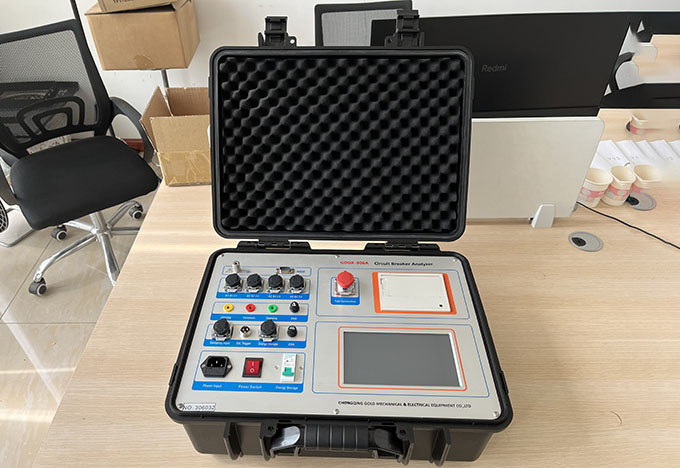

Production picture
|
Intelligent Operation & Data Management
English menu human-machine interface, convenient operation with a rotary mouse, easy to use without professional training
Supports local storage of test data (up to 24 sets of opening/closing data and 8 sets of reclosing data), with historical data accessible at any time
Equipped with PC communication function, enabling computer-controlled testing, data upload, and remote analysis via USB connection
Directly prints test reports, supporting multi-dimensional data visualization output such as fracture curves and stroke-time curves
|
