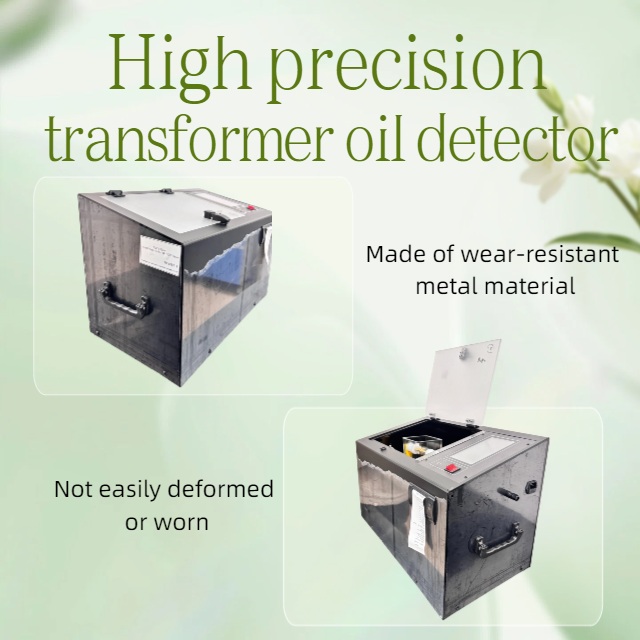

IS6792 / IEC60156 Oil Breakdown Voltage Tester Bdv Tester

Introduction:

80KV oil breakdown voltage tester can test oil within the temperature range of 0 to 70 degrees Celsius at room temperatures below 45 degrees Celsius.

Equipped with a mini printer, it can output results on-site, making it a professional standard device for insulating oil quality testing.

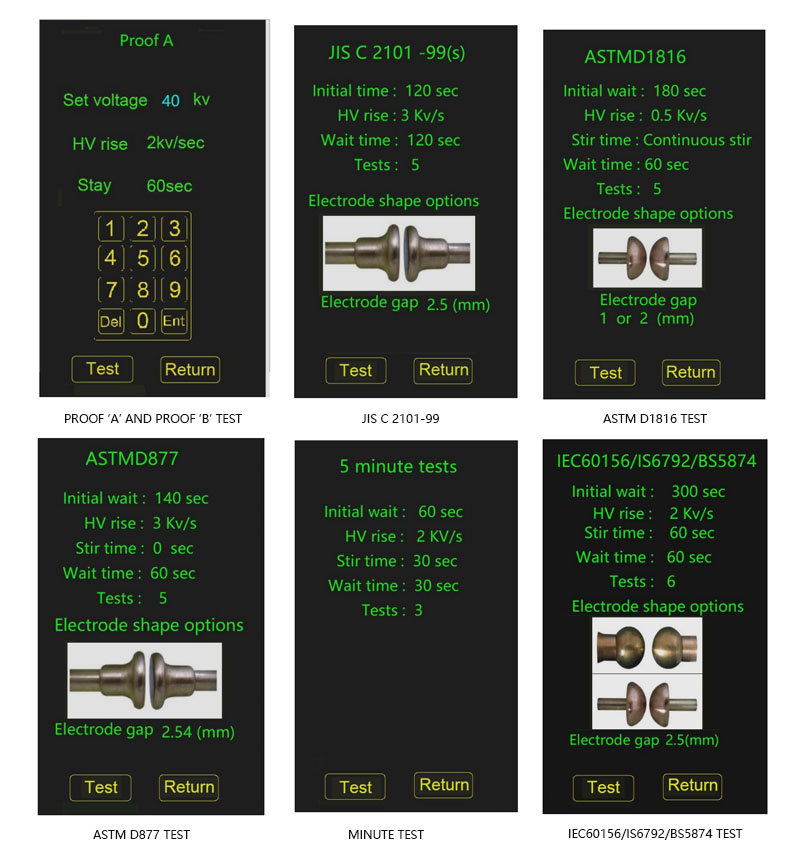

What items can the device test ?

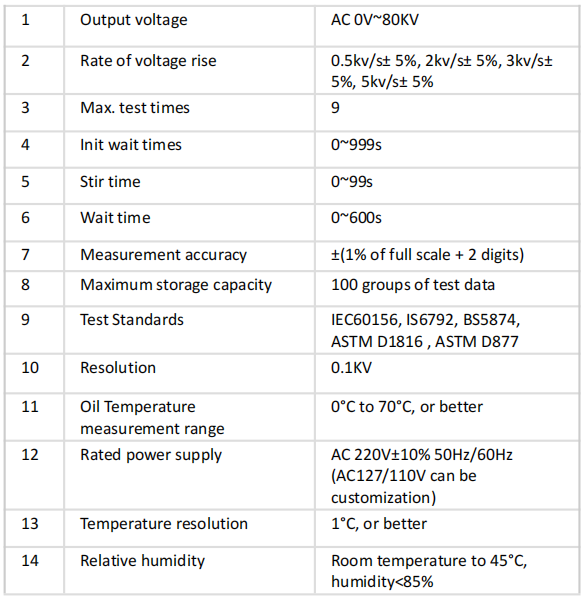

Technical Index

Festures

• Multi-Standard, Widely Applicable

The instrument has eight built-in preset test standards, including internationally recognized standards such as IEC60156, ASTM D877, ASTM D1816, and JIS C 2101, and also supports a "user-defined" mode. This allows it to meet the testing requirements of different industries, regions, or special oil samples.

• Fully Automated Testing Process

From initial settling, stirring, pressurization, breakdown test to result recording, the entire testing process is fully automated. In a single test, the instrument automatically repeats the breakdown, stirring, and settling cycle a set number of times until all tests are completed, and automatically calculates the average and standard deviation, greatly reducing manual operation and errors.

• Precise and Reliable Measurement

1. High Precision: Measurement accuracy is ±(1% of full scale + 2 digits), voltage resolution is 0.1kV.

2. Multiple Pressurization Rates: Offers four pressurization rates: 0.5kV/s, 2kV/s, 3kV/s, and 5kV/s, selectable according to different standards or sample characteristics. Temperature Measurement: Built-in NTC temperature sensor records oil sample temperature at the end of the test, providing a reference for result analysis.

• Intelligent Data Management

1. Large Capacity Storage: Can save up to 100 complete sets of test data.

2. Flexible Export: Supports batch data upload via USB connection to a computer using dedicated software, facilitating report generation or long-term archiving.

3. On-Site Printing: Equipped with a mini thermal printer, results can be printed immediately after testing for convenient on-site recording.

• Safety and User-Friendly Design

1. Safety Interlock: Equipped with a high-pressure chamber door detection sensor; an alarm will sound and the test will stop if the door is not properly closed, ensuring operator safety.

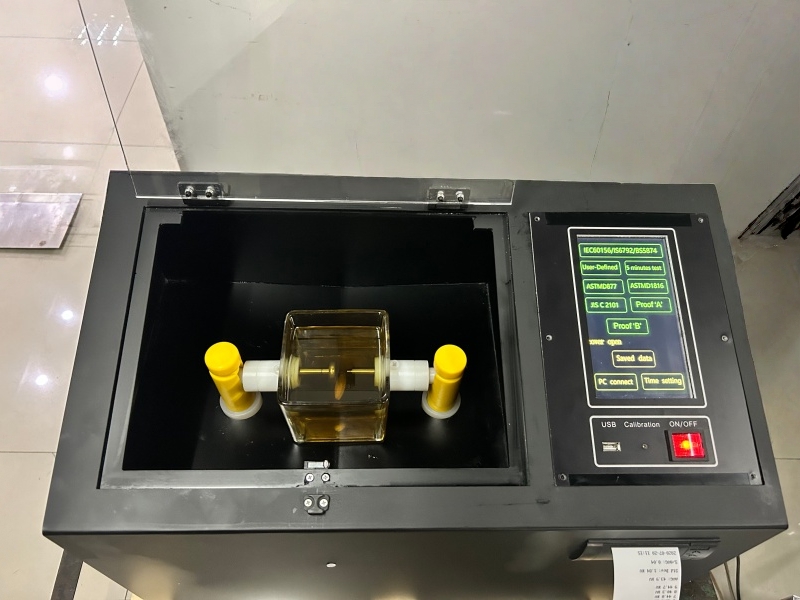

2. Touchscreen Operation: Utilizes a 7-inch color touchscreen; parameters are set via a virtual keyboard, providing an intuitive and easy-to-use interface.

3. Improved Portability: Compact design, 10 kg lighter than the previous generation, making it easier to move between laboratories or in the field.

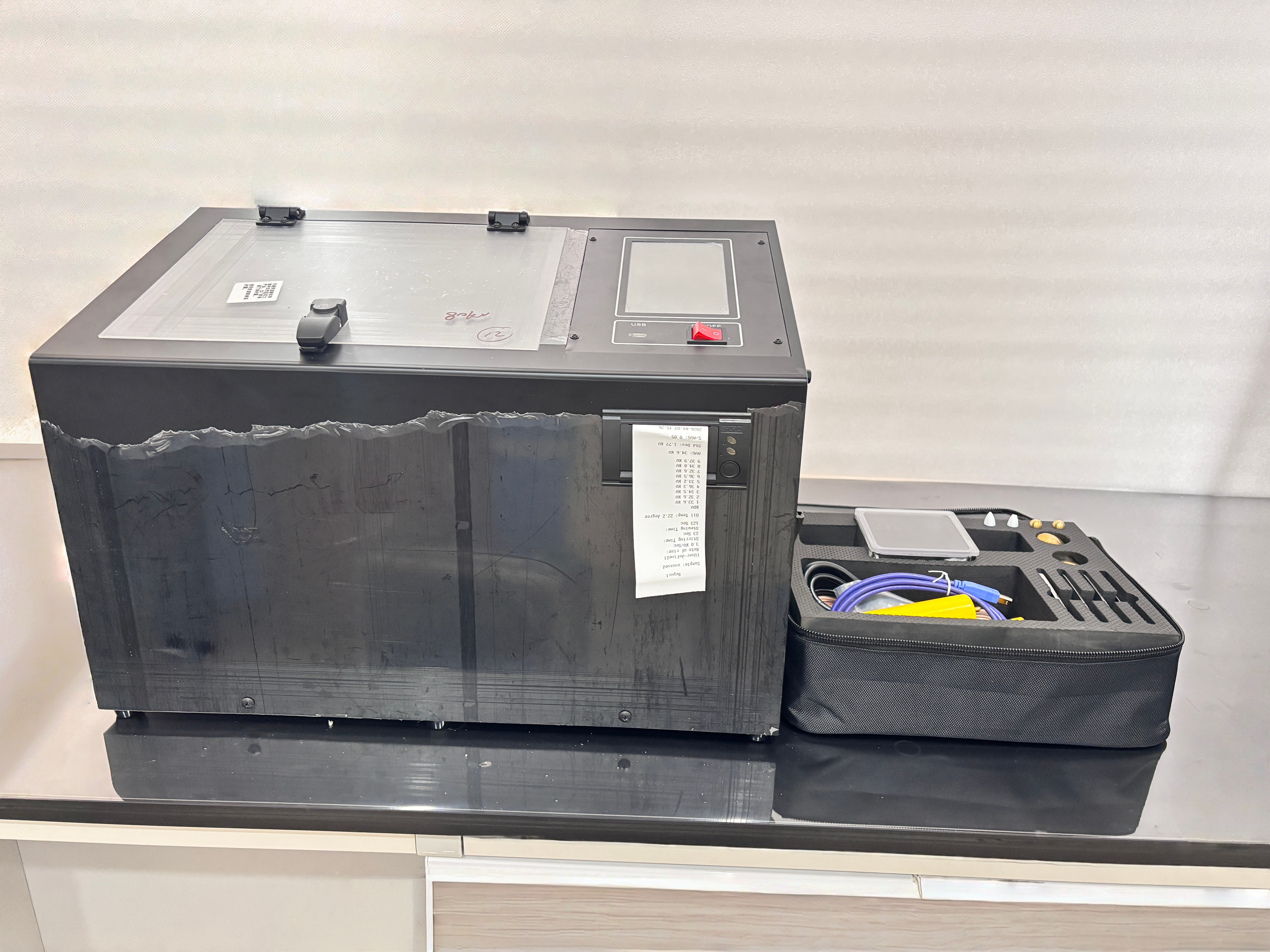

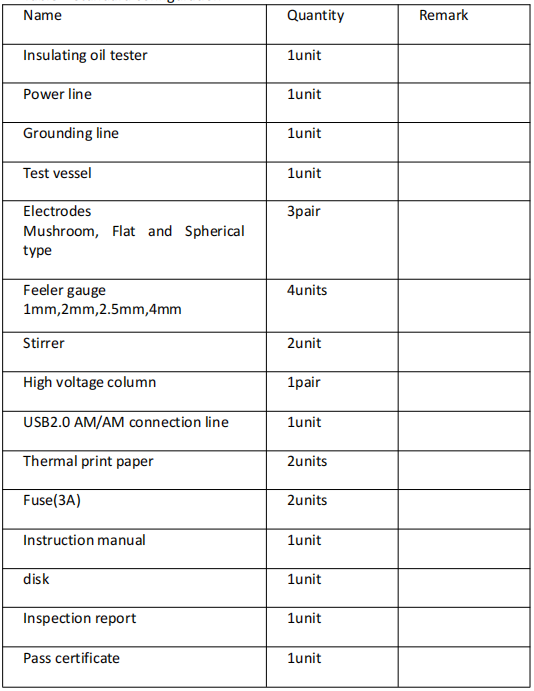

Accessories List

Partner
