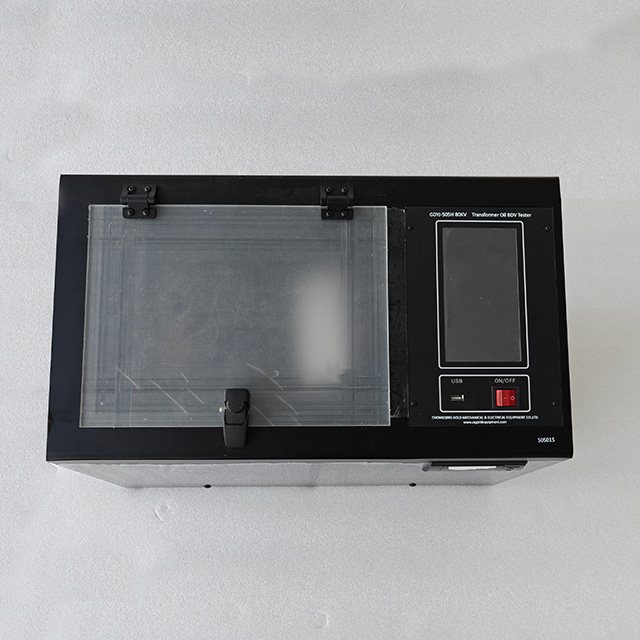

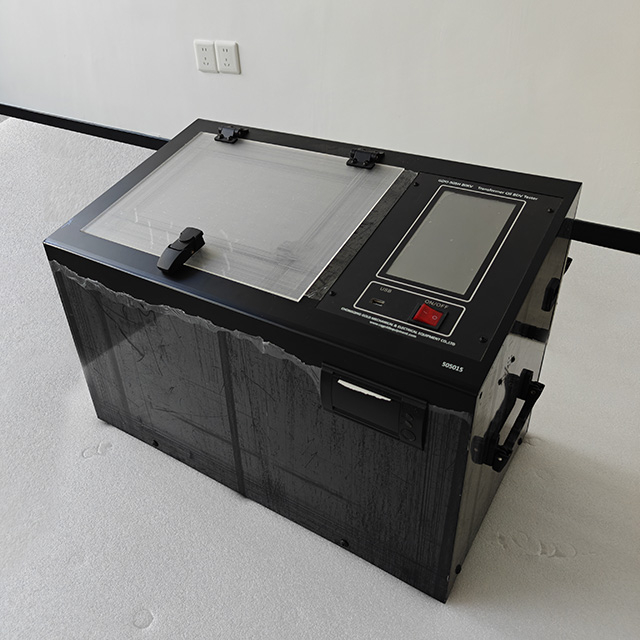

Mobile Substation 0-80kV Transformer Oil Tester ASTM D1816/IEC60156

Share to:

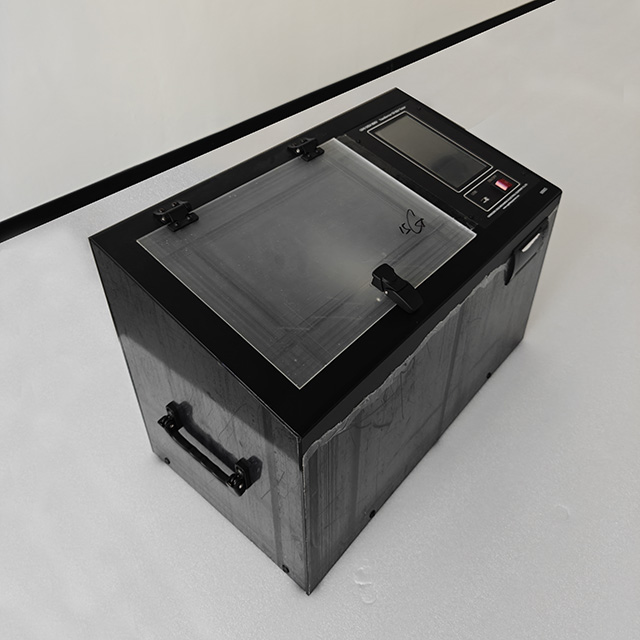

Mobile Substation 0-80kV Transformer Oil Tester ASTM D1816/IEC60156

Transformer insulating oil tester incorporates global mainstream insulating oil testing standards such as IEC60156, ASTM D877, ASTM D1816, BS5874, IS6792, and JIS C2101-99.
It offers multiple voltage boosting rates of 0.5kV/s, 2kV/s, 3kV/s, and 5kV/s, features integrated touchscreen operation, and locally stores 100 complete test records, making it an ideal power testing device.

Availability:

Quantity:



Inquire Add to Basket

Model:
GDYJ-505H
Brand:
CHONGQING GOLD

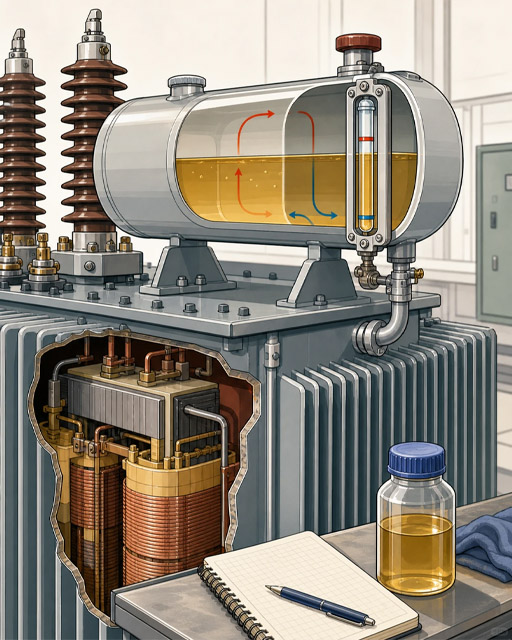

Transformer insulating oil is the core insulating medium in oil-immersed transformers, instrument transformers, and high-voltage switchgear. The breakdown voltage of the insulating oil is the most critical indicator for judging oil aging, moisture absorption, and contamination. In transformer operation and maintenance, oil regeneration, and transformer factory quality inspection worldwide, laboratories and field operations frequently encounter these practical challenges:

1. Different countries and industries use completely different testing standards. Traditional equipment requires manual consulting of standard manuals and manually filling in numerous parameters such as time, voltage ramp rate, and number of tests, which is highly prone to parameter setting errors, rendering test results invalid.
2. Tiny air bubbles inside the oil sample can significantly lower the breakdown voltage reading. The lack of an automatic stirring process results in large data dispersion, with significant differences in results from multiple tests of the same sample.
3. Only breakdown testing can be performed; withstand voltage verification cannot be completed. Some projects require assessing the oil's withstand performance under specified voltages, necessitating additional separate equipment.
4. Oil temperature changes during testing directly affect the BDV value. Many simple devices do not collect oil temperature data, resulting in test reports lacking temperature information and data that does not meet the requirements for third-party laboratory audits.
5. Extensive paper records and manual transcription of test data lead to time-consuming report compilation and difficulty in tracing original data.

The GDYJ-505H 80kV Insulating Oil Dielectric Strength Tester is specifically designed to solve these industry challenges. The instrument comes pre-programmed with globally mainstream oil testing standards, accommodating both standardized compliance testing and customized R&D experiments. It can be used for batch factory testing in transformer factory laboratories, or accompany maintenance teams to substation sites for rapid sampling and testing of in-use transformer oil.

Product Core Highlights

Built-in global mainstream insulating oil testing standards

IEC60156, ASTM D877, ASTM D1816, BS5874, IS6792, JIS C2101-99. Standard preset parameters are directly called upon startup, eliminating the need for manual recalculation.
Four selectable voltage boost rates

0.5kV/s/2kV/s/3kV/s/5kV/s. Fully customizable test procedures are supported to adapt to special oils and non-standard evaluation needs.
Integrated Proof A / Proof B mode for withstand voltage verification testing

Measures breakdown voltage and performs withstand voltage endurance testing to determine if a sample can maintain a set voltage for a specified time without breakdown.
Built-in oil cup stirring function + NTC

Real-time oil temperature monitoring eliminates bubble interference and synchronously records test temperature, ensuring data reproducibility.

Features

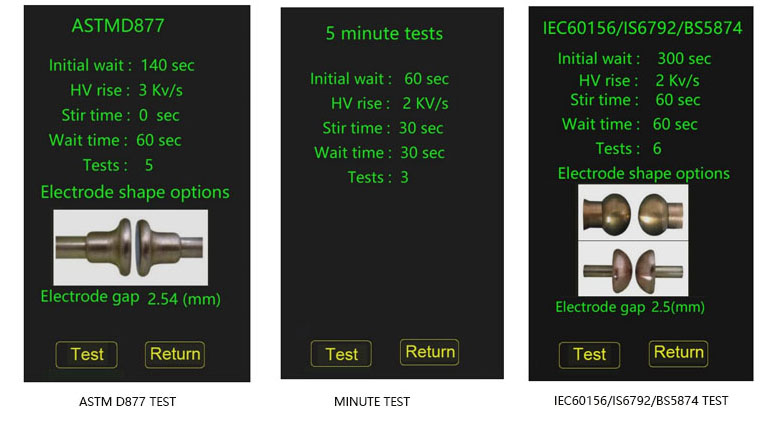

Touchscreen Human-Machine Interface

A fully English-language touchscreen with a virtual numeric keypad for parameter modification; each standard configuration parameter interface intuitively displays the electrode type and standard electrode gap, reminding operators to verify the electrodes.
High-Pressure Chamber Door Interlock

High pressure cannot be output if the high-pressure chamber door is not fully closed; if the door is opened during testing, the high-pressure output is immediately cut off to avoid the risk of electric shock.
Built-in Magnetic Stirring Mechanism

Automatically stirs the oil sample after each breakdown, dispersing air bubbles and reducing their interference with test results, improving data repeatability.

Applicable Business Scenarios

1.Insulating oil inspection for oil-immersed transformers and high-voltage instrument transformers at the factory
2.Annual sampling and testing, condition assessment of transformers in operating substations
3.Comparative testing of insulating oil before and after regeneration and filtration treatment
4.Compliance testing of oil products by third-party testing laboratories
5.Performance evaluation of new insulating oils developed by research institutions

More products

Technical Index

Output voltag	AC 0V~80KV
Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
Max. test times	9
Init wait time	0~999s
Stir time	0~99s
Wait time	0~600s
Measurement accuracy	±(1% of full scale + 2 digits)
Maximum storage capacity	100 groups of test data
Test Standard	IEC60156, IS6792, BS5874,ASTM D1816 , ASTM D877
Resolution	0.1kv

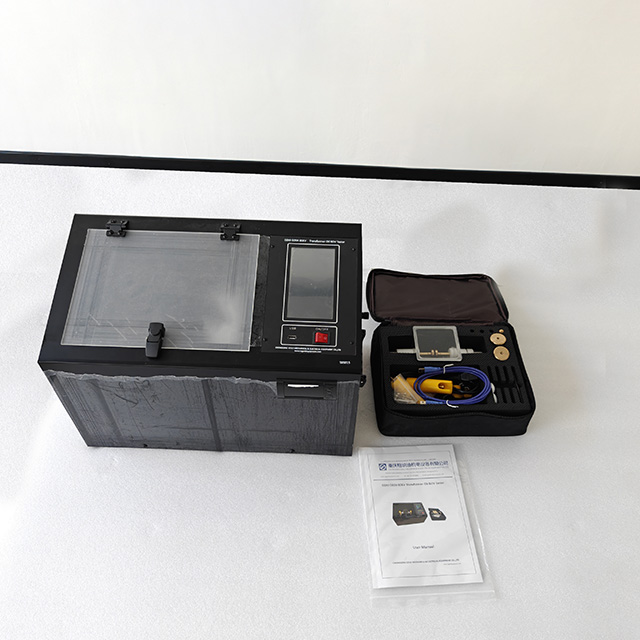

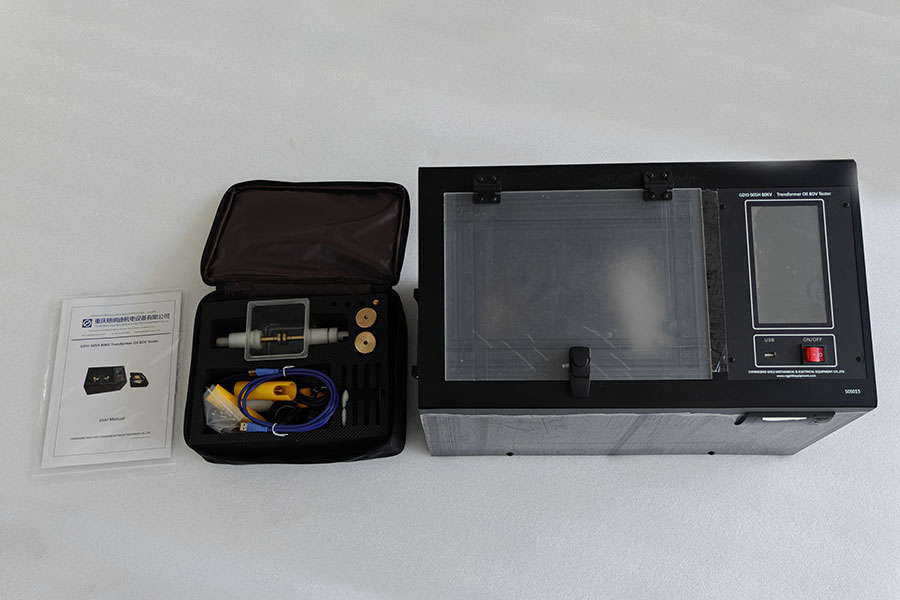

Accessories

Item	Quantity	Remarks
80kV Insulating Oil Dielectric Strength Tester Main Unit	1 set	Integrated enclosure cabinet
Power Cord	1 pc	For AC220V power supply
Grounding Cable	1 pc	Mandatory for equipment safety earthing
Test Oil Vessel	1 pc	Container for insulating oil sample
Electrode Kits (Mushroom, Flat‑Disc, Spherical type)	3 pairs	For different international test standards
Feeler Gauge (1mm, 2mm, 2.5mm, 4mm)	4 pcs	For electrode‑gap calibration
Magnetic Stirrer Bars	2 pcs	Used inside oil vessel for degassing
High‑voltage Terminal Columns	1 pair	Electrode mounting accessories
USB2.0 AM‑AM Data Cable	1 pc	Data communication with PC host software
Thermal Printer Paper	2 rolls	For on‑site hard‑copy printout
3A Fuse	2 pcs	Spare power‑supply fuse
Instruction Manual	1 copy	Paper‑format operation guide
Product Software CD‑ROM	1 pc	Contains PC software & electronic manual
Factory Inspection Report	1 copy	Original factory calibration record
Certificate of Conformity	1 copy	Product quality certification
