Summary Introduction

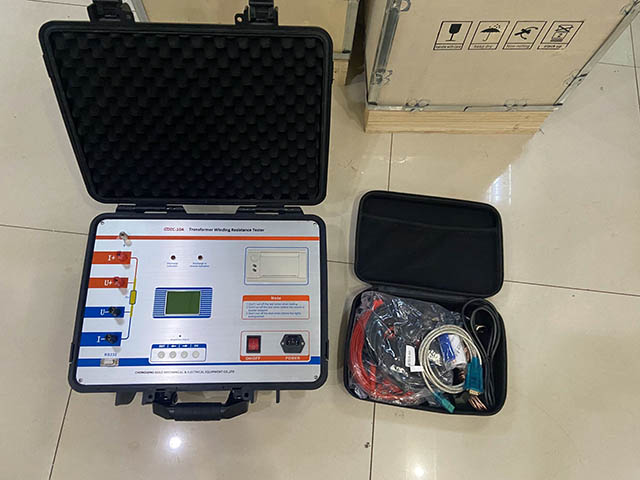

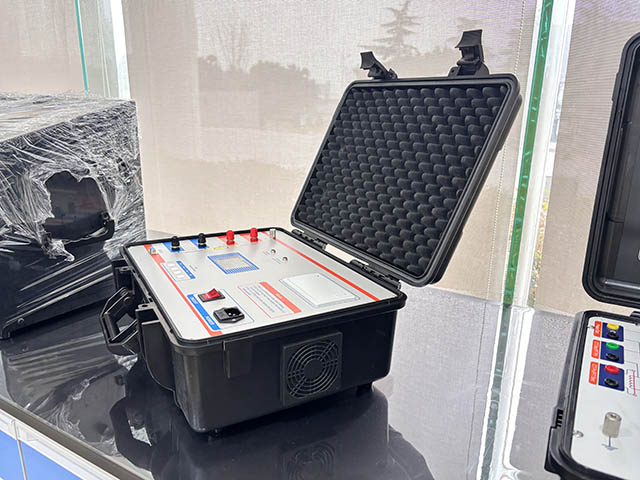

GDZC-40 is an industrial grade DC resistance tester mainly used to measure the DC resistance of transformers and motor windings.

It is not only designed specifically for laboratories, but also for frontline electricians and maintenance personnel to quickly and safely complete testing on site.

Advantages

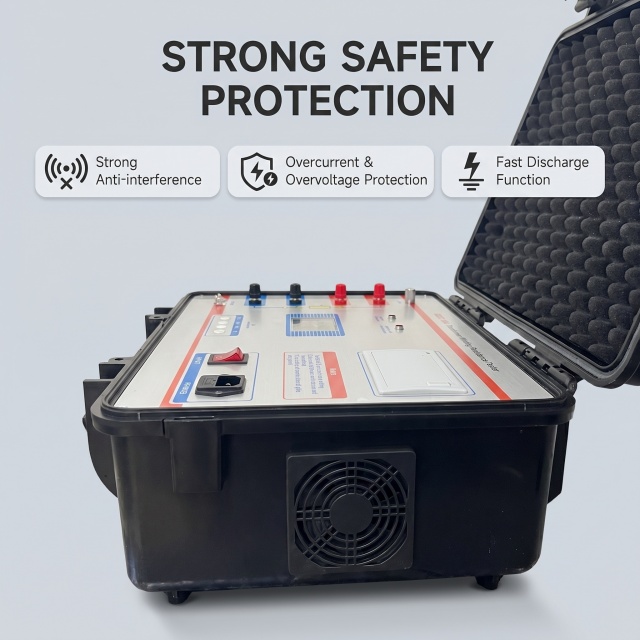

• Built-in protection circuits support overcurrent, overvoltage, and automatic discharge, ensuring safe operation after testing inductive loads.

• Strong anti-interference capability makes it suitable for use in substations, workshops, and other electrically noisy environments.

Features

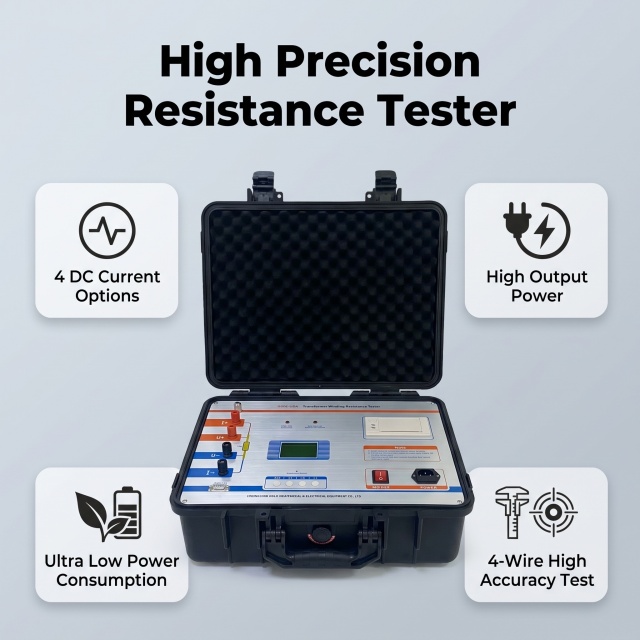

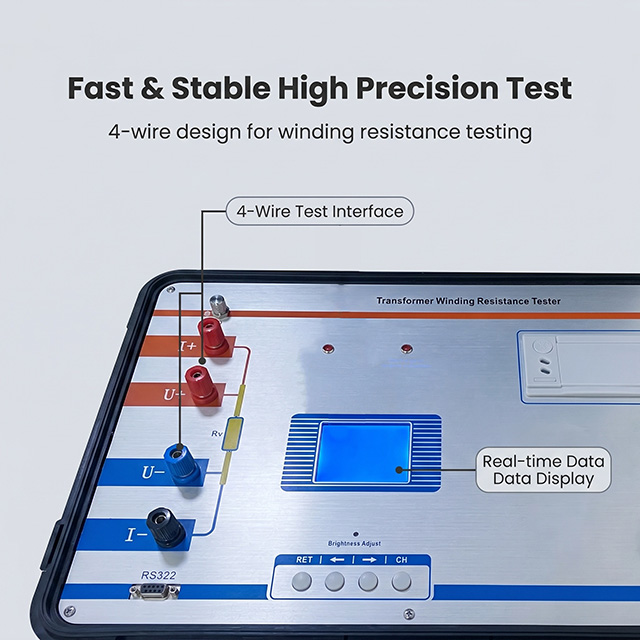

• Uses a four-wire measurement method to eliminate lead resistance error, improving low-resistance accuracy.

• Offers five current levels: 2A, 5A, 10A, 20A, and 40A, allowing flexible adaptation to different resistance ranges.

• Includes a built-in thermal printer for on-site data printing.

Technique Standard

1. resistance precision：±（0.2％RGD+2d）

2. test range：  10.00mΩ-10.00Ω （2A）

4.000mΩ-4.000Ω  (5A)

2.000mΩ-2.000Ω  (10A)

1.000mΩ-1.000Ω  (20A)

0.500 mΩ-0.500Ω (40A)

3. the least scale：1uΩ

4. Output current precision:±5%

5. Support for data uploading to PC

6. Two hundred groups of data can be stored

7. With thermal printer to print the test data

8. Weight:15KG

9. power supply：AC220V±10%，(50±1)HZ

10. operation condition：-10～50℃  Humidity <90％ No condensation。

Applications

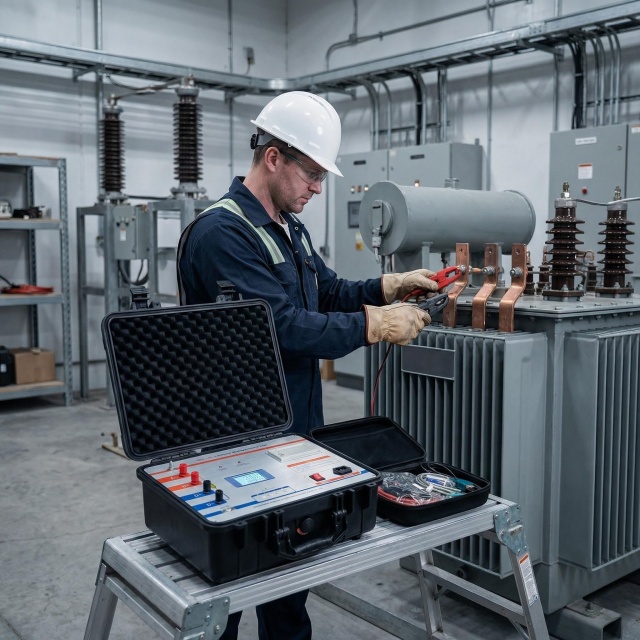

• Suitable for DC resistance testing of power transformers, current transformers, motor windings, reactors, and other inductive components.

• Can be used in labs, outdoor substations, power plants, and maintenance workshops.

• Stores up to 200 test records and supports data upload to a PC for further analysis.
