GDZC
GOLD
1. DC resistance measurement accuracy: ± (0.2% RGD+2d) Minimum resolution: 1u Ω;
2. Resistance measurement range:
1.000 Ω -1000 Ω (20mA range)
100.0m Ω -100.0 Ω (200mA range)
10.00m Ω -10.00 Ω (2A range)
4.000m Ω -4.000 Ω (5A gear)
2.000m Ω -2.000 Ω (10A gear)
1.000m Ω -1.000 Ω (20A range)
3. Output current accuracy: ± 5%;

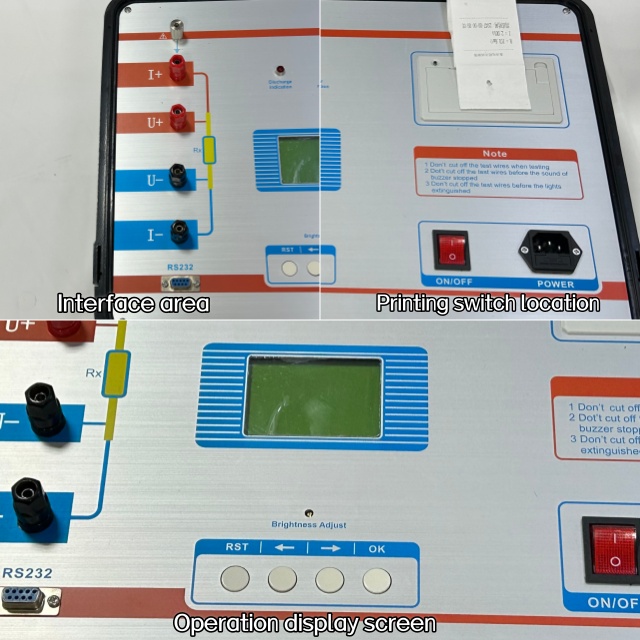

4. Equipped with a discharge circuit and discharge indicator, discharge indicator method: buzzer and discharge indicator LED;
5. Maximum open voltage of instrument current source: DC 30V

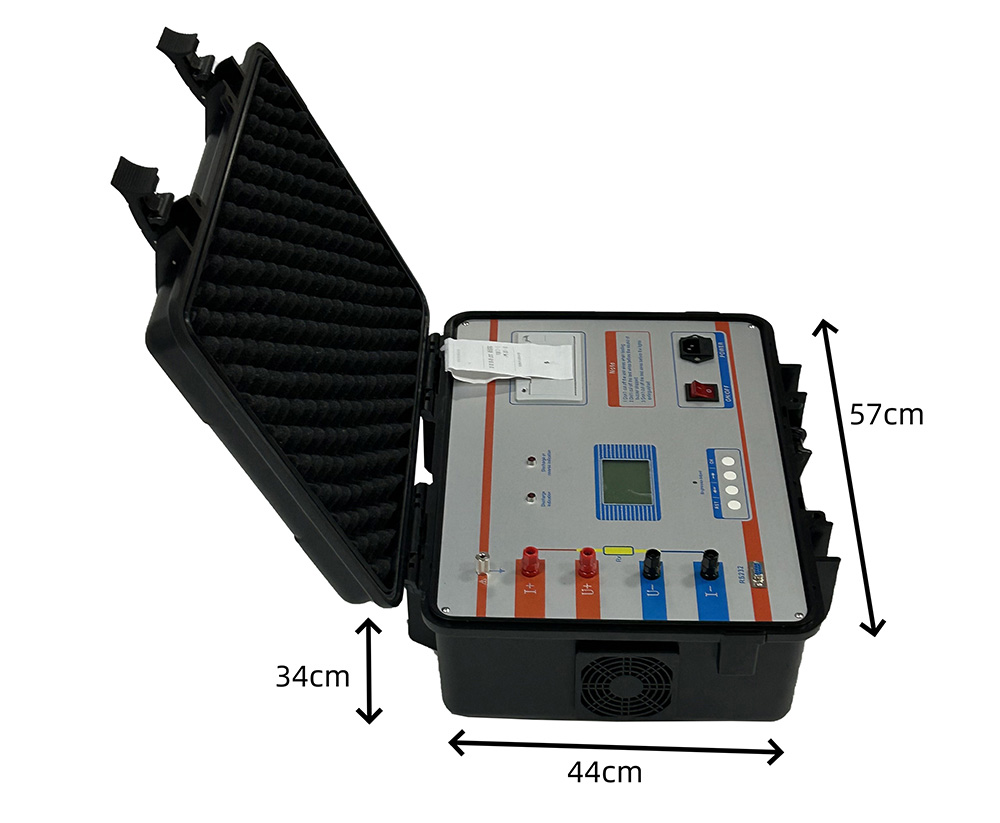

6. The weight of the host is less than 10KG;
7. Working power supply: AC220V ± 10%, (50 ± 1) HZ;
8. Working environment: -10 ℃ to 50 ℃, humidity<90%, no condensation.
Fast measurement speed, high accuracy, and intuitive display
Strong anti-interference ability, small size, and low power consumption
The test data is stable and reliable, unaffected by human factors
