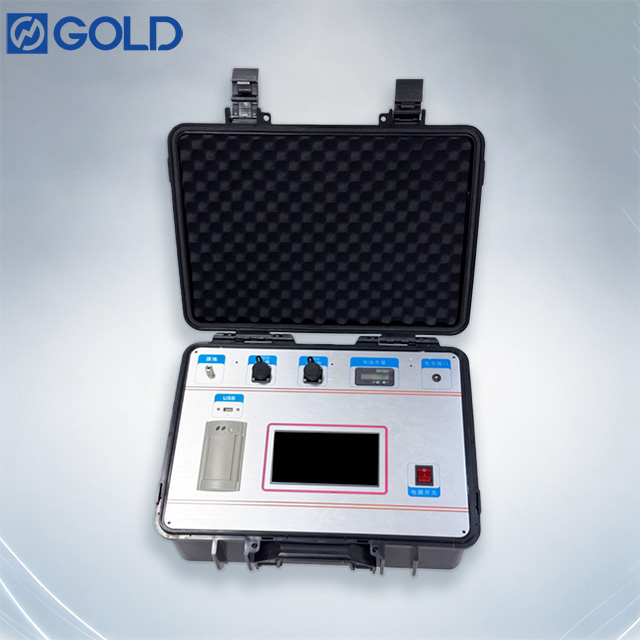

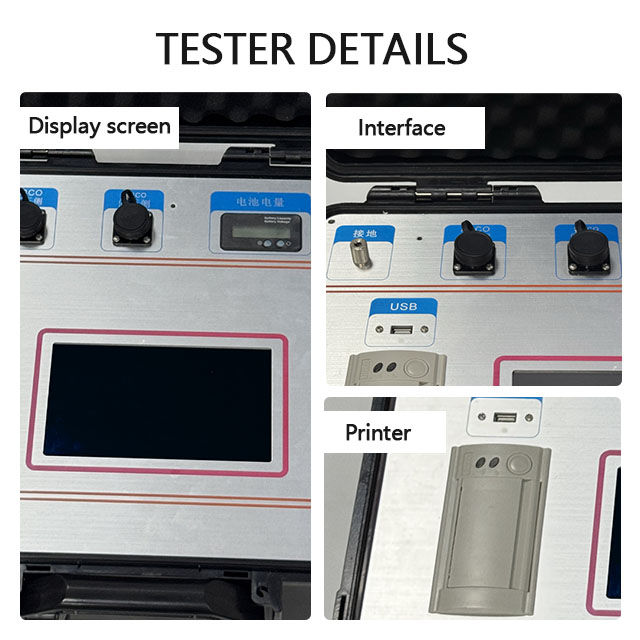

GDBC-901B TTR Tester
CHONGQING GOLD
Introduction：
Transformer ratio tester is an integrated portable testing instrument designed for substation maintenance, power engineering operation and maintenance, and transformer detection scenarios, providing one-stop completion of power transformer testing projects.
Advantages：
Simultaneously supporting the switching between IEC 60076 and IEEE C57.12 international standards, meeting the testing standards of different regions and industries.
Automatically identify winding groups 1-12, accurately output the phase difference between the primary and secondary sides, with a phase angle measurement error of ≤ 0.5 °.
Equipped with automatic recognition function for tap changer gear, input the percentage of voltage regulation to automatically match the corresponding standard ratio and calculate the ratio error.
12V large capacity lithium battery, fully charged and continuously tested on site for more than 10 hours. No external power supply is required for outdoor or non commercial power stations;
Support testing while charging

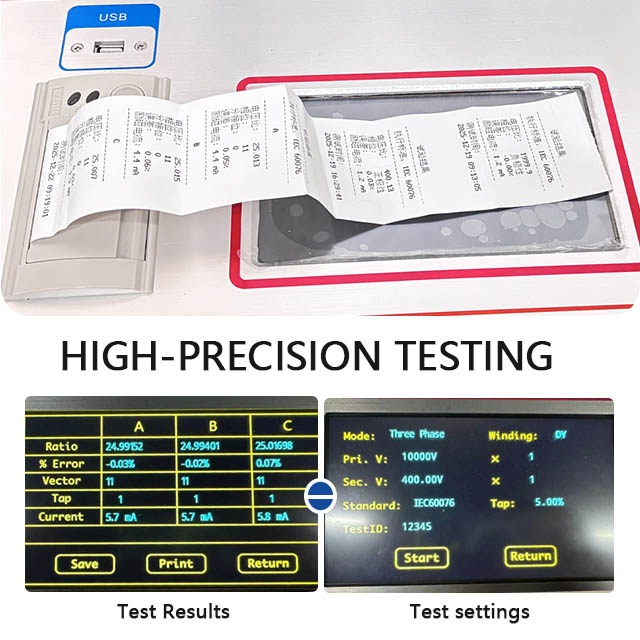

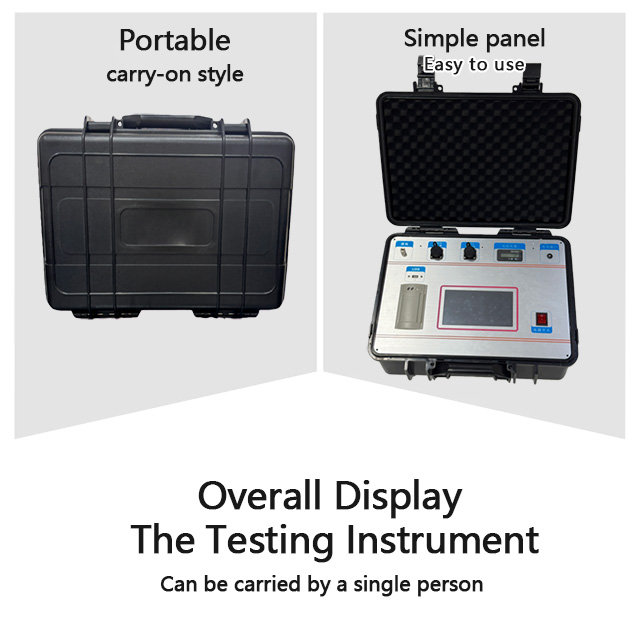

The overall size of the machine is 400 × 350 × 200mm, with a weight of less than 10kg. It can be carried by a single person and is suitable for vehicle mounted outdoor maintenance.
Technical Parameters：
Voltage ratio and turns ratio measurement range | 1-10000 |
Ratio measurement error | 1-1000 error<0.2%, 1000-1000 error<0.5% |
Vector group measuremen | 1-12 |
Phase angle measurement rang | 0-360 degree |
Distortion of test voltag | less than 1% |
Excitation current indication rang | 0-200mA |
Supported connection mode for three-phase transforme | DY, YD, DD, YY,ZN |
Maximum storage capabilit | 200 groups |
| Power supply LI battery | 12V 15000mAH |
Charger power supply | AC 100-230V |

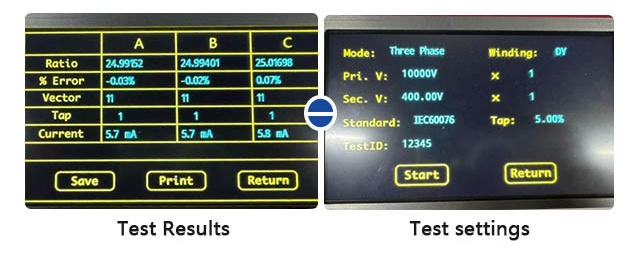

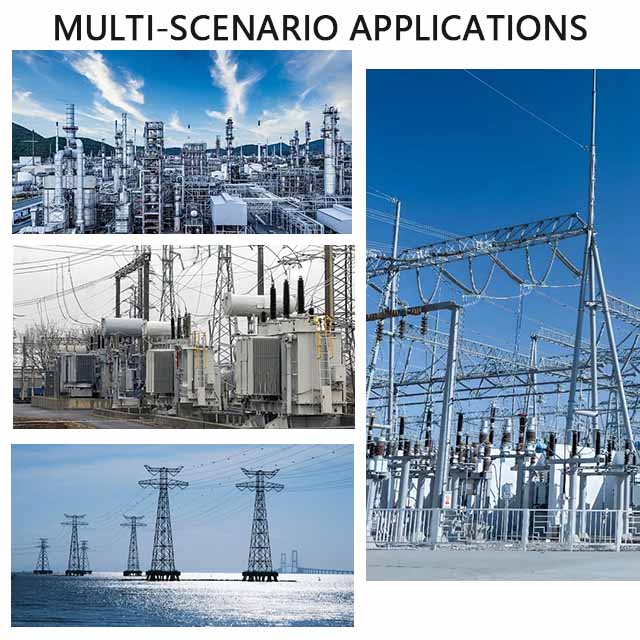

Industry Scenarios
1. Maintenance of power company substations and regular preventive testing of main transformers;
2. Distribution network engineering, new energy photovoltaic/wind power box transformer factory and on-site acceptance;
3. Transformer manufacturer and third-party testing organization PT ratio group calibration;
4. Maintenance of transformers in self owned power plants and distribution rooms of industrial and mining enterprises;
5. Testing of self owned power distribution equipment in rail transit and data centers.
