IEC60076 Z-type Transformer Turns Ratio Meter Substation Field Transformer Test Kit

The ratio test not only verifies the nameplate value, but also checks whether the tap changer position corresponds to the actual voltage ratio, determines whether there is a turn to turn short circuit in the winding, and provides a basis for whether the transformer can operate in parallel. Two transformers are connected in parallel, and if the ratio deviation exceeds the limit, it will generate circulating current, increase heating, and in severe cases, may trigger protection actions. This experiment is listed as a routine item in the handover and preventive procedures, and the accuracy and reliability of the test data directly affect whether the equipment can be safely put into operation.

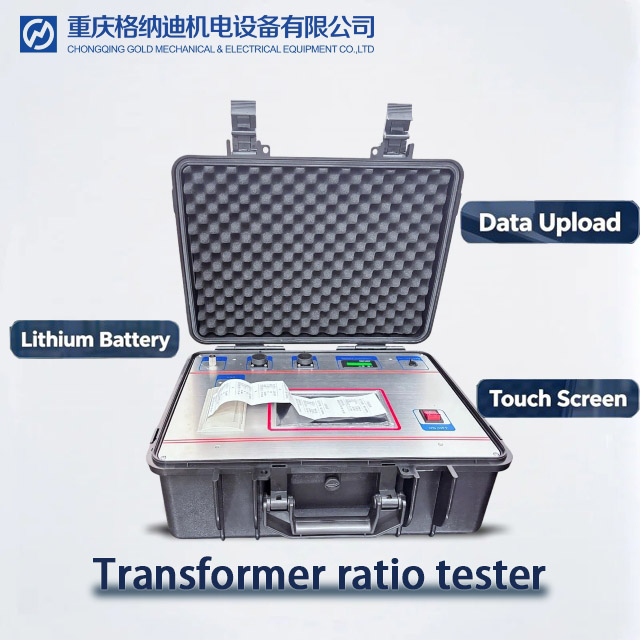

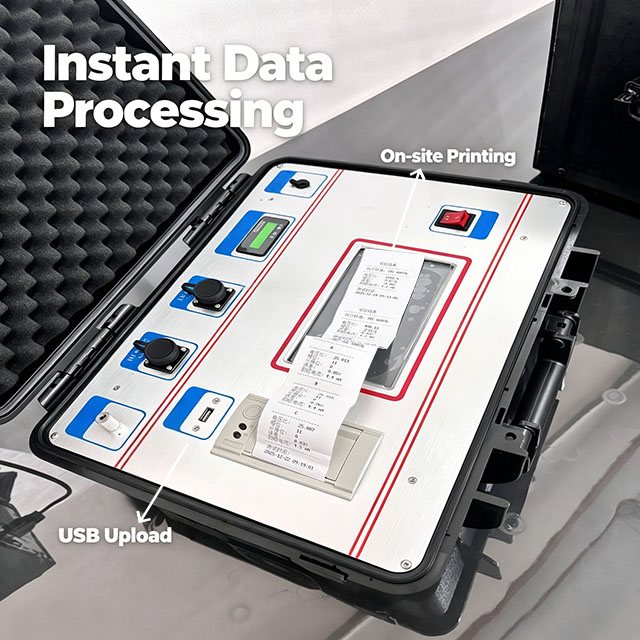

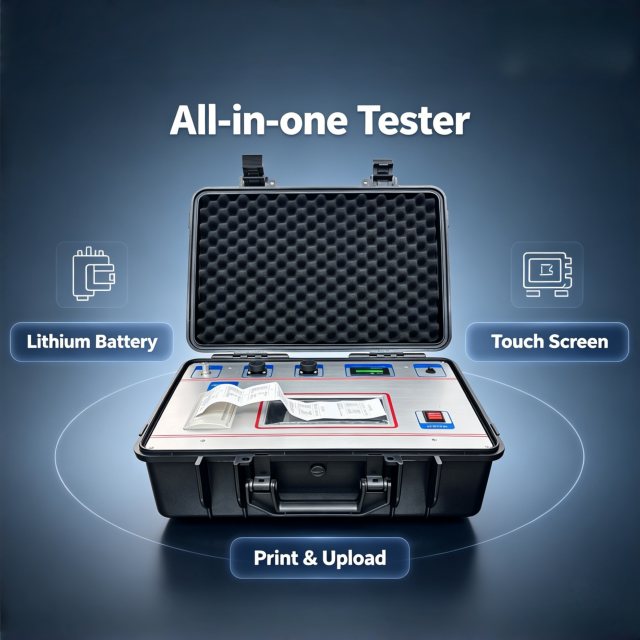

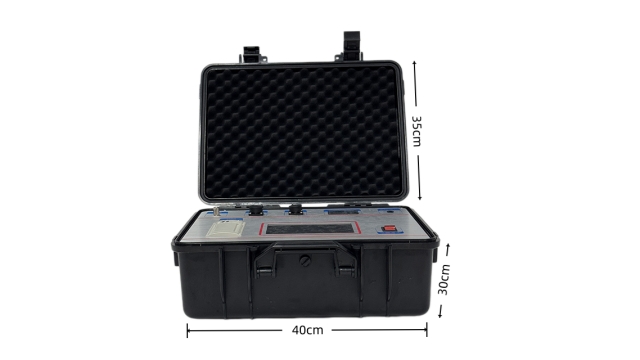

GDBC-901B turns ratio tester is designed around actual on-site usage requirements: three-phase voltage synchronous output ensures data consistency, multiple wiring modes cover conventional and special equipment, built-in battery power supply adapts to non power environments, automatic data storage and report generation simplify post organization work.

For teams that require frequent ratio testing, this is a practical tool that can improve on-site efficiency and data reliability.
