GDBC-901B
GOLD
|

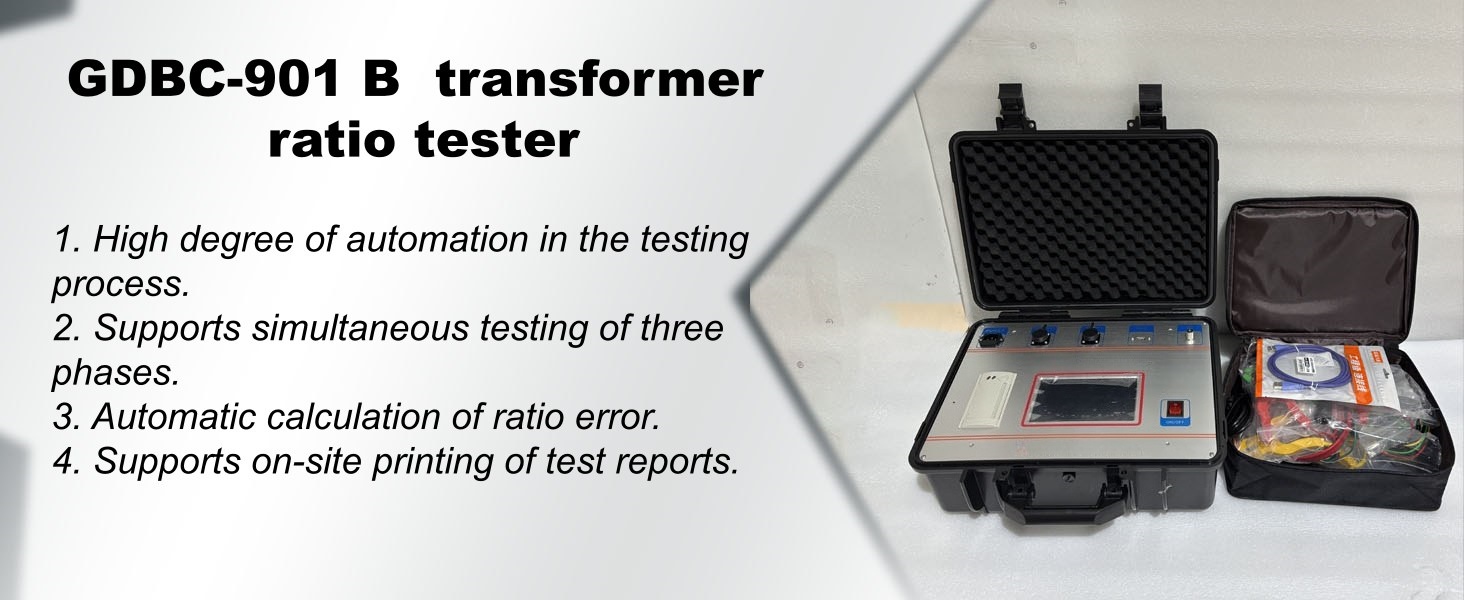

Product Description

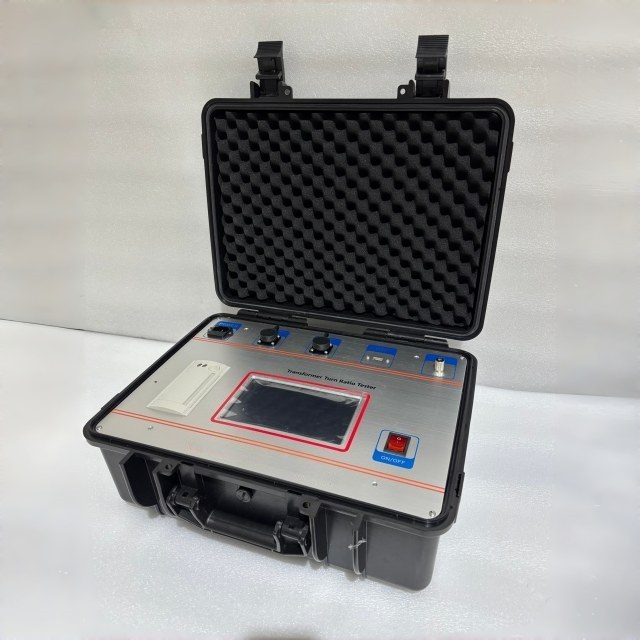

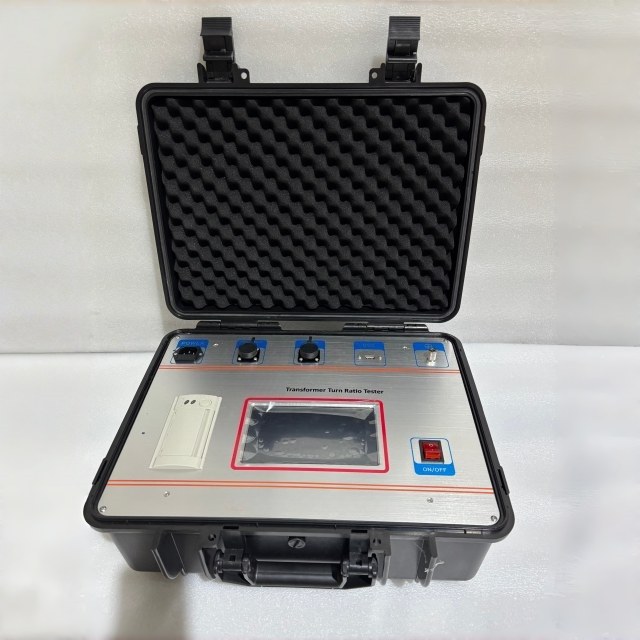

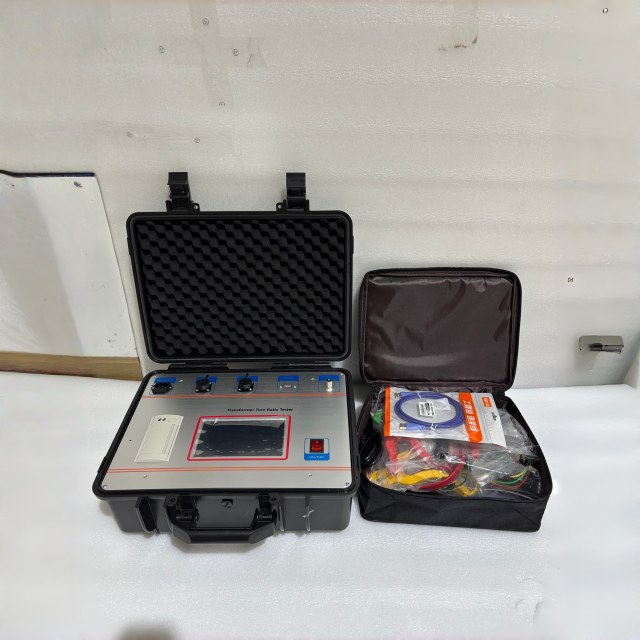

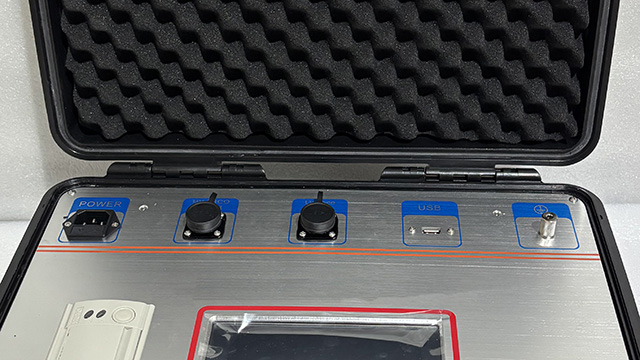

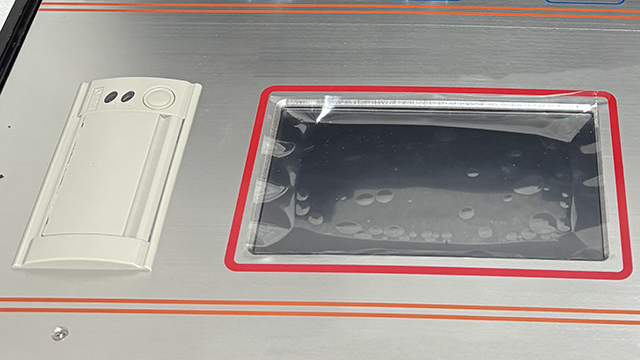

GDBC-901B Transformer Ratio Meter focuses on intelligent operation, integrating touch interaction, data storage, report generation and other functions.
It can complete precise detection without complex debugging, greatly improving transformer maintenance efficiency.
|
Advantages of High-precision Measurement
1. Ratio measurement range: 1-10000. Error <0.2% for 1-1000, <0.5% for 1000-10000, and repeatability error <0.05%, ensuring accurate and reliable data that meets strict testing standards.
2. Phase angle measurement range: 0-360° with error <0.5°, vector group measurement covers 1-12 groups, accurately capturing the phase relationship between primary and secondary voltages to facilitate comprehensive evaluation of transformer performance.
3. Built-in sine wave generator with output test voltage distortion <1%, unaffected by power grid noise, ensuring stable and accurate measurement results in complex environments.
4. Supports excitation current measurement (0-200mA, error <1%), synchronously feeding back the transformer's excitation state and providing multi-dimensional data support for fault diagnosis.
|
Multi-scenario Adaptability
 | Compatible with various winding connection modes of three-phase transformers (DY, YD, DD, YY, ZN) and supports single-phase transformer testing, adapting to multiple types of equipment such as power transformers and voltage transformers. |
| Supports dual-standard testing (IEC & IEEE). IEC standard outputs line voltage ratio, while IEEE standard outputs winding turn ratio, meeting testing specifications of different regions and industries. |
| Equipped with tap changer position detection function. By setting the regulation rate, it can automatically match the standard ratio, accurately identify tap positions, and simplify the transformer tap calibration process. |
| Operating temperature range: 0-50℃, humidity <90%, adapting to complex environments such as outdoor and substations, balancing laboratory fixed testing and on-site mobile testing needs. |
|
Technique Index
1. Voltage ratio and turns ratio measurement range:1-10000
2. Ratio measurement error: 1-1000 error<0.2%, 1000-1000 error<0.5%
3. Repeatable error for ratio test <0.05%
4. Vector group measurement: 1-12
5. Phase angle measurement range: 0-360 degree. Error <0.5 degree.
6. Test voltage: AC 0-120V per phase. Maximum output current 200mA per phase.
7. Distortion of test voltage less than 1%.
8. Excitation current indication range:0-200mA. Error <1%
9. Supported connection mode for three-phase transformer: DY, YD, DD, YY,ZN
10. Maximum storage capability: 200 groups
11. Power supply LI battery: 12V 15000mAH. Once charge can working more than 10 hours during on site test.
12. Charger power supply AC 100-230V 45-65Hz.
13. Size:400*350*200mm. Weight <10kg
14. Working temperature: 0-50 degree. Humidity <90%
|
Wide Industry Application Scenarios
Suitable for factory inspection, operation and maintenance, fault diagnosis and other scenarios of transformers in power, chemical, metallurgical and other industries.
It can complete multiple tasks such as transformer ratio verification, vector group testing, tap switch detection, and phase angle measurement. One device meets the full-process needs of transformer electrical performance testing. Compatible with transformers of various voltage levels such as 10kV and 35kV, it has strong versatility and reduces enterprise equipment procurement costs.
|
Product Description
GDBC-901B Transformer Ratio Meter focuses on intelligent operation, integrating touch interaction, data storage, report generation and other functions.
It can complete precise detection without complex debugging, greatly improving transformer maintenance efficiency.
|
Advantages of High-precision Measurement
1. Ratio measurement range: 1-10000. Error <0.2% for 1-1000, <0.5% for 1000-10000, and repeatability error <0.05%, ensuring accurate and reliable data that meets strict testing standards.
2. Phase angle measurement range: 0-360° with error <0.5°, vector group measurement covers 1-12 groups, accurately capturing the phase relationship between primary and secondary voltages to facilitate comprehensive evaluation of transformer performance.
3. Built-in sine wave generator with output test voltage distortion <1%, unaffected by power grid noise, ensuring stable and accurate measurement results in complex environments.
4. Supports excitation current measurement (0-200mA, error <1%), synchronously feeding back the transformer's excitation state and providing multi-dimensional data support for fault diagnosis.
|
Multi-scenario Adaptability
| Compatible with various winding connection modes of three-phase transformers (DY, YD, DD, YY, ZN) and supports single-phase transformer testing, adapting to multiple types of equipment such as power transformers and voltage transformers. |
| Supports dual-standard testing (IEC & IEEE). IEC standard outputs line voltage ratio, while IEEE standard outputs winding turn ratio, meeting testing specifications of different regions and industries. |
| Equipped with tap changer position detection function. By setting the regulation rate, it can automatically match the standard ratio, accurately identify tap positions, and simplify the transformer tap calibration process. |
| Operating temperature range: 0-50℃, humidity <90%, adapting to complex environments such as outdoor and substations, balancing laboratory fixed testing and on-site mobile testing needs. |
|
Technique Index
1. Voltage ratio and turns ratio measurement range:1-10000
2. Ratio measurement error: 1-1000 error<0.2%, 1000-1000 error<0.5%
3. Repeatable error for ratio test <0.05%
4. Vector group measurement: 1-12
5. Phase angle measurement range: 0-360 degree. Error <0.5 degree.
6. Test voltage: AC 0-120V per phase. Maximum output current 200mA per phase.
7. Distortion of test voltage less than 1%.
8. Excitation current indication range:0-200mA. Error <1%
9. Supported connection mode for three-phase transformer: DY, YD, DD, YY,ZN
10. Maximum storage capability: 200 groups
11. Power supply LI battery: 12V 15000mAH. Once charge can working more than 10 hours during on site test.
12. Charger power supply AC 100-230V 45-65Hz.
13. Size:400*350*200mm. Weight <10kg
14. Working temperature: 0-50 degree. Humidity <90%
|
Wide Industry Application Scenarios
Suitable for factory inspection, operation and maintenance, fault diagnosis and other scenarios of transformers in power, chemical, metallurgical and other industries.
It can complete multiple tasks such as transformer ratio verification, vector group testing, tap switch detection, and phase angle measurement. One device meets the full-process needs of transformer electrical performance testing. Compatible with transformers of various voltage levels such as 10kV and 35kV, it has strong versatility and reduces enterprise equipment procurement costs.
