ZJA
GOLD

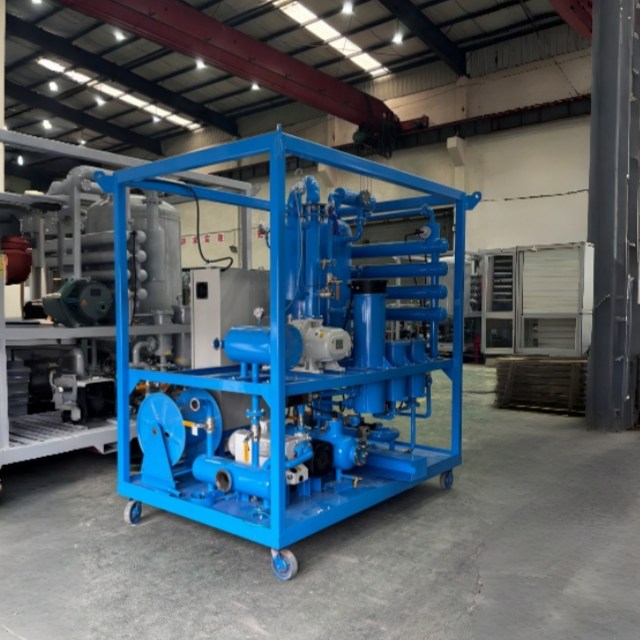

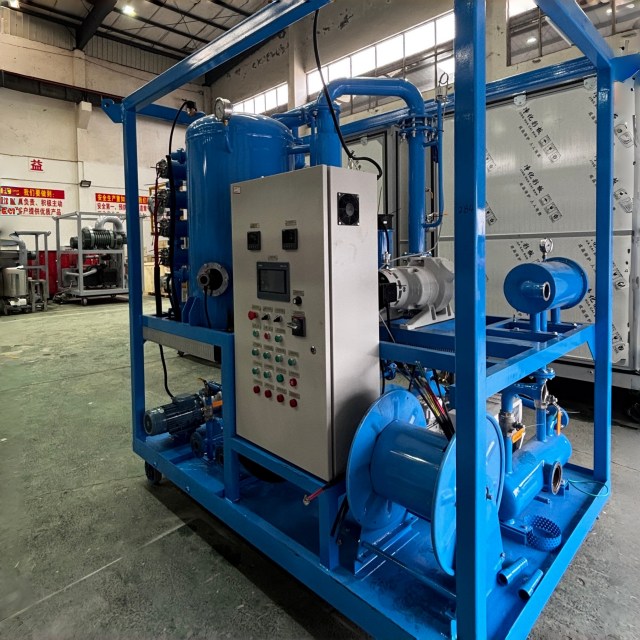

1 μm Filtration Industrial Grade Transformer Oil Filter Vacuum Oil Purifier

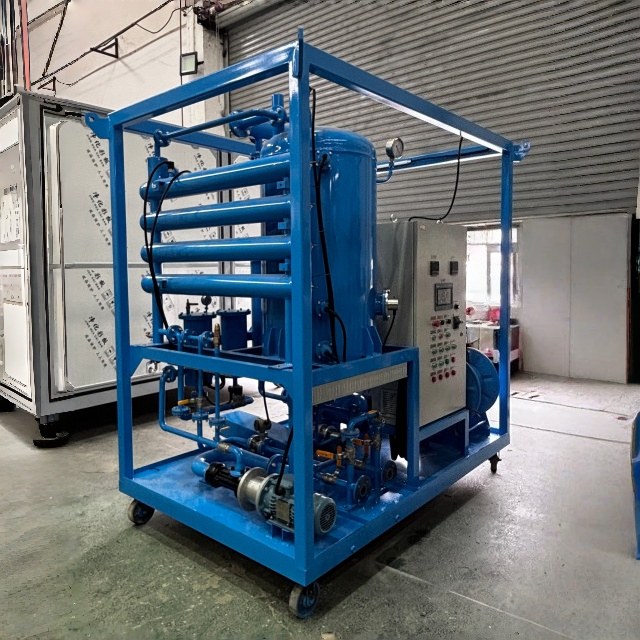

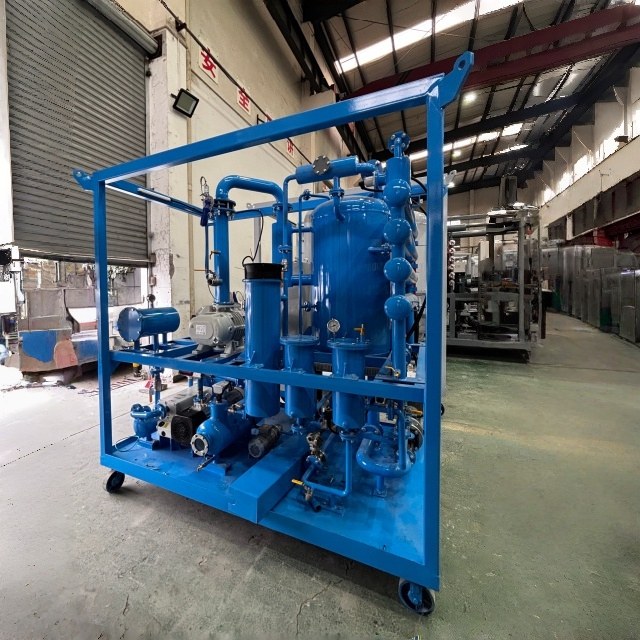

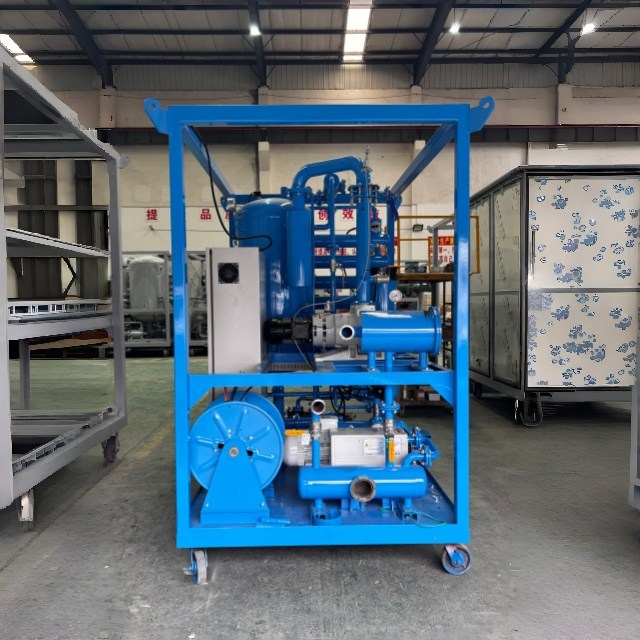

ZJA two-stage vacuum oil purifier integrates the coordinated work of multiple precision components to realize deep purification of transformer oil, and is equipped with a special trailer and a complete protection system, which is a professional equipment for oil treatment in the power industry.
 | The nominal flow rate reaches 6000L/h (100L/min) with a lift of ≤30m. The large flow design can realize rapid purification of transformer oil and greatly shorten the oil treatment time of large power equipment. |
| The working pressure is ≤0.5MPa. The whole machine adopts a pressure-resistant sealed pipeline design, which can adapt to the oil delivery needs of different sites, has no hidden dangers of oil and air leakage, and ensures stable operation under high-pressure working conditions. |
| The average trouble-free working time is ≥5000h. The industrial-grade component selection and assembly process enable the equipment to adapt to long-term continuous operation and meet the needs of batch oil treatment in substations, power plants and other places. |
| The working noise of the whole machine is ≤80dB(A), which greatly reduces noise pollution compared with traditional oil purifiers, meets the noise emission standards of industrial sites, and improves the working environment of operators. |
The equipment integrates a double filtration structure of coarse filter + precision filter. The coarse filter intercepts large particles of impurities, and the precision filter realizes 1μm-level fine filtration, comprehensively removing mechanical impurities in the oil.
With the two-stage vacuum dehydration and degassing system, free water, dissolved water and various gases in the transformer oil can be removed at one time without phased treatment, realizing one-stop purification of water, gas and impurities, and improving the efficiency of on-site oil treatment.
Device Parameters
Model：ZJA | Nominal flow rate：6000L/h |
Oil separation capacity：100L/min | Work pressure：≤0.5MPa |
Ultimate vacuum degree： ≤7Pa | Work vacuum degree：≤80Pa |
Working oil temperature：30～70℃（Adjustable） | Power Supply：60Hz 220VThree-phase five-wire |
Heating power： 60KW | Total power：66KW |
Work noise：≤80dB(A) | Overall weight：1700Kg |
Inlet and outlet oil pipe diameters：32/32mm | External dimensions：336×140×224cm |
Mean Time Between Failures：≥5000h | Head：≤30m |
Clean Oil Index:
Oil breakdown voltage：≥70KV（Spherical electrode） | Residual water content：≤10PPm |
Residual gas content：≤0.3% | Filtration accuracy： 1μm |
Acetylene gas content：0 |
The equipment has four alarm protections including overpressure, oil injection, overload and heater fault. When the oil outlet pressure is over the standard, the liquid level is too high, the motor is overloaded or the heater is faulty, the equipment will immediately alarm and stop, avoiding equipment damage and on-site operation risks from the source.
At the same time, it is equipped with phase sequence detection and emergency stop button. The phase sequence error is displayed in real time, and the machine can be stopped with one key in an emergency, providing double protection for the safety of on-site operators and equipment.
