Product Overview

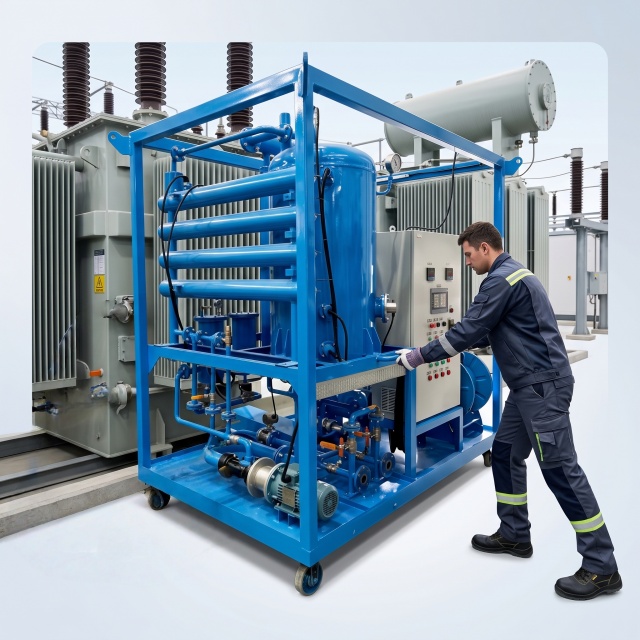

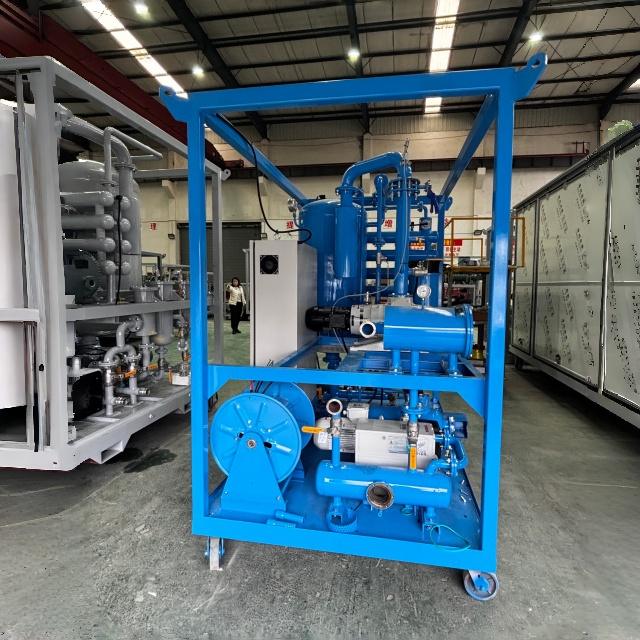

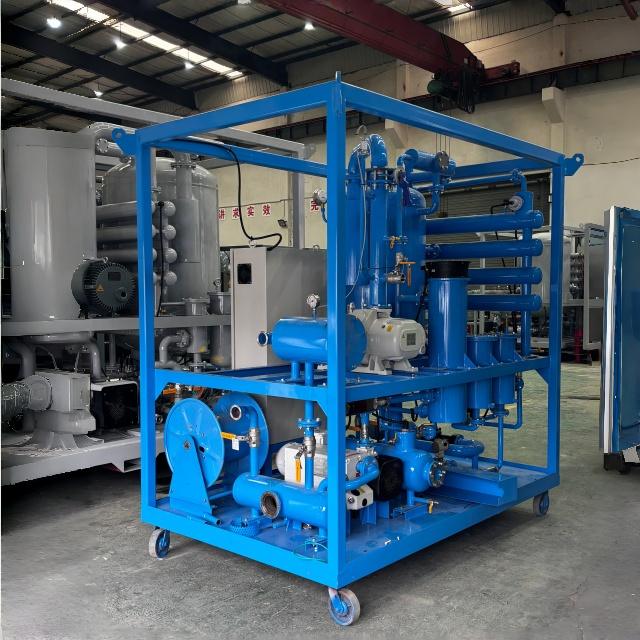

ZJA6KY is a large-flow movable two-stage vacuum oil filtration unit with 6000L/h capacity, providing an all-in-one solution for deep dehydration, degassing and precision filtration of transformer oil.

Development Position: A highly reliable oil purification machine for on-site power maintenance, combining high efficiency, easy operation and mobility to meet rapid filtration needs in multiple scenarios.

Advantages

1. Large flow & high efficiency: 6000L/h processing rate, qualified after 3–5 cycles.

2. Super purification: moisture ≤10PPm, gas ≤0.3%, breakdown voltage ≥70KV.

3. Full intelligent protection: constant temperature, liquid level, overpressure, oil spray and overload protection.

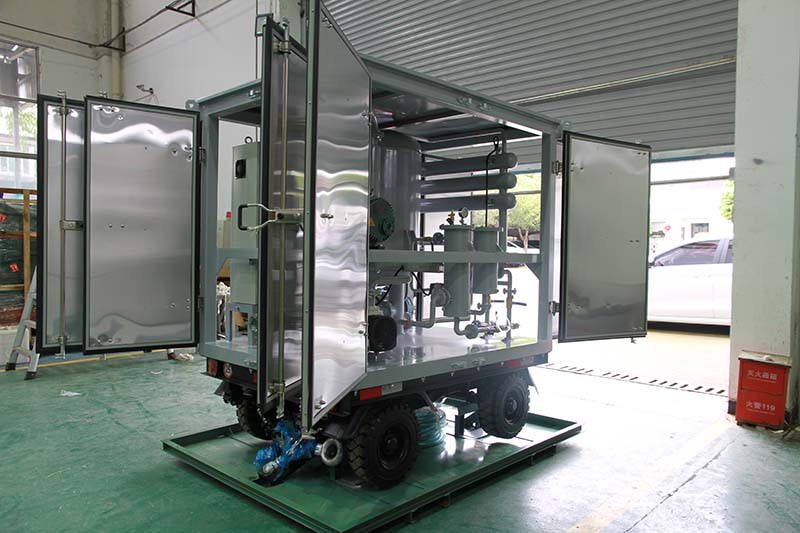

4. Movable trailer chassis: 3T load capacity, flexible steering, towing speed ≤50km/h.

5. Bidirectional oil flow: one-key valve switching, adaptable to various sites.

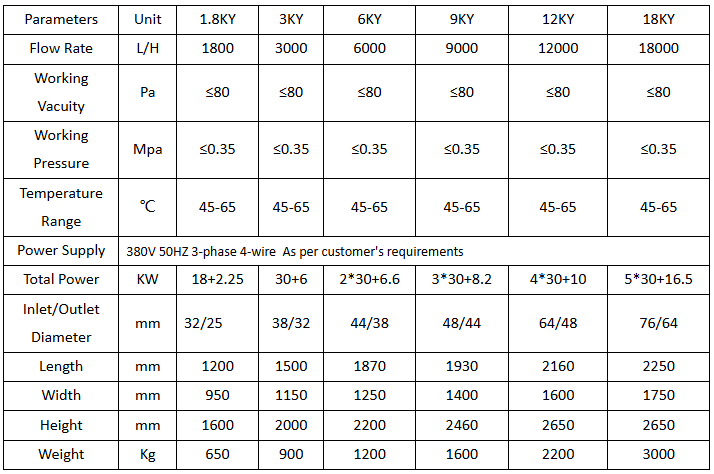

Specifications

• Nominal flow: 6000L/h

• Ultimate vacuum: ≤7Pa; Working vacuum: ≤80Pa

• Working temperature: 30–70℃

• Total power: 66KW; Rated current: 114A

• Filtration precision: 1μm

• Net weight: 1700Kg

• Dimensions: 3360×1400×2240mm

• MTBF: ≥5000h

• Noise: ≤80dB(A)

Product Features

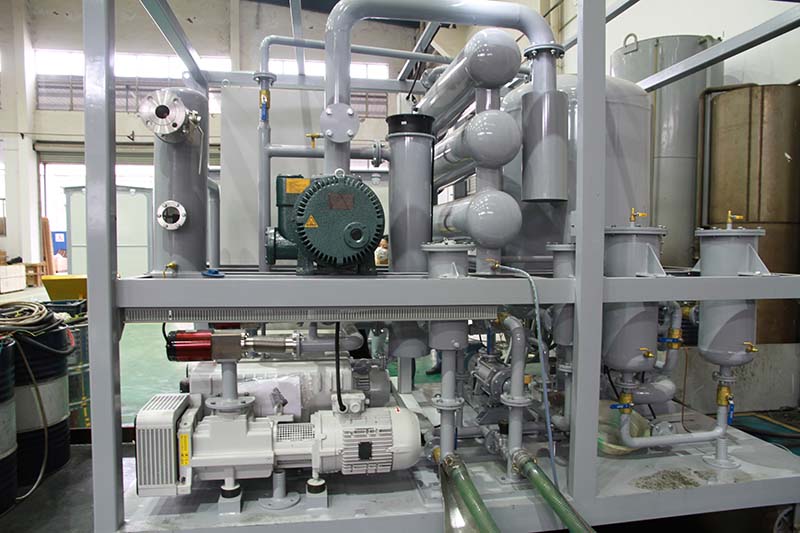

• Two-stage vacuum unit (vacuum pump + roots pump) for strong dehydration and degassing.

• Condenser and gas-liquid separator for environmentally friendly exhaust.

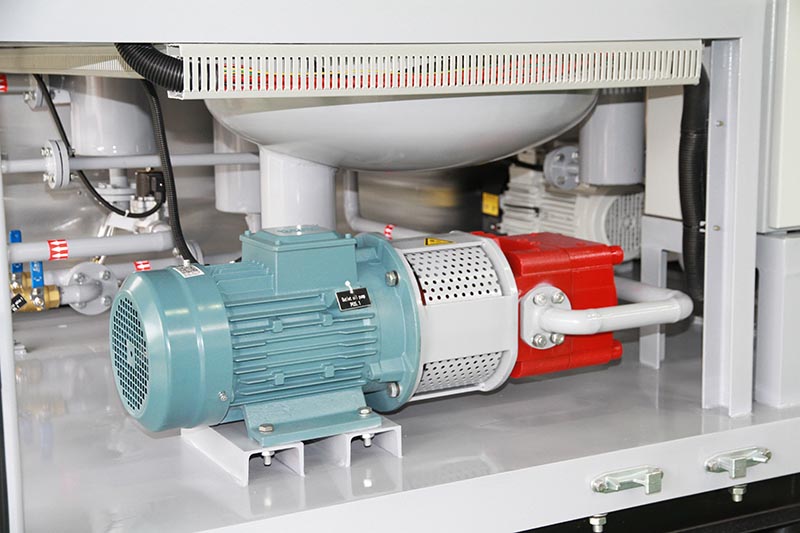

• Precision protection filter extends oil pump service life.

• Visual control panel: vacuum, temperature and status clear at a glance.

• Corrosion-resistant pipes and seals for long-term stable operation.

Application Scenarios

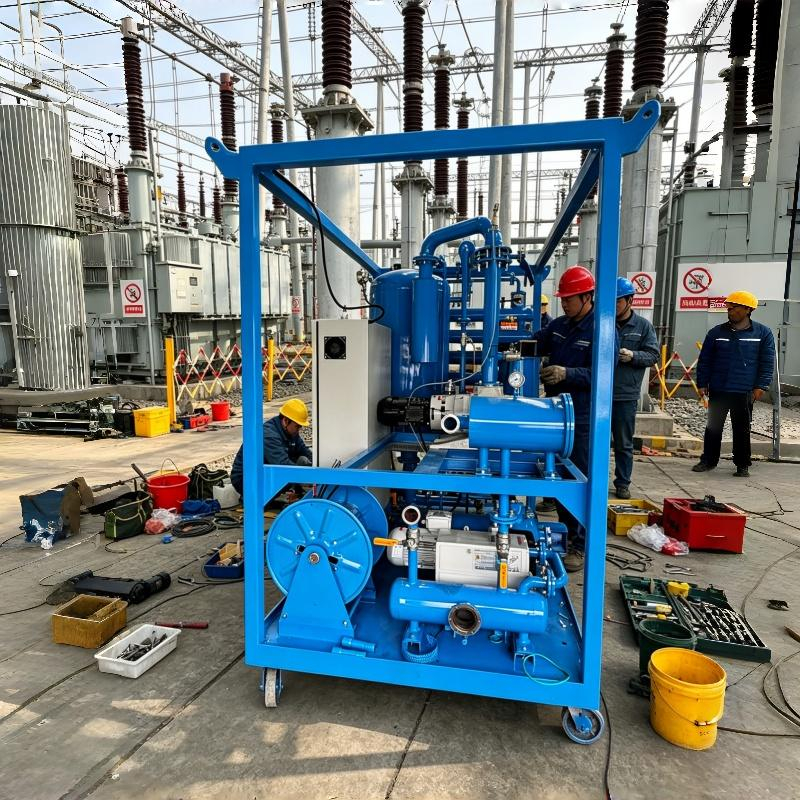

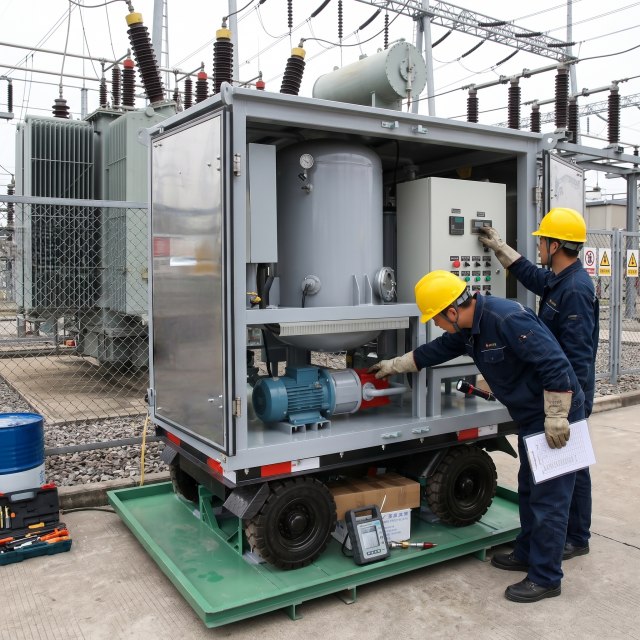

1. Daily maintenance of transformers in substations

2. On-site oil filtration for power maintenance projects

3. Maintenance of high-voltage oil-immersed equipment

4. New transformer oil purification and used transformer oil recycling

5. Mobile oil purification for power construction
